- Place of Origin:CN;GUA
- Material:Brass
- Brand Name:COVNA
- Model Number:HK11-2
- Power:Solenoid
- Pressure:Medium Pressure
- Application:General
- Port Size:1/4"-2"
- Structure:Control
- Standard or Nonstandard:Standard
- Media:Water
- Temperature of Media:Medium Temperature

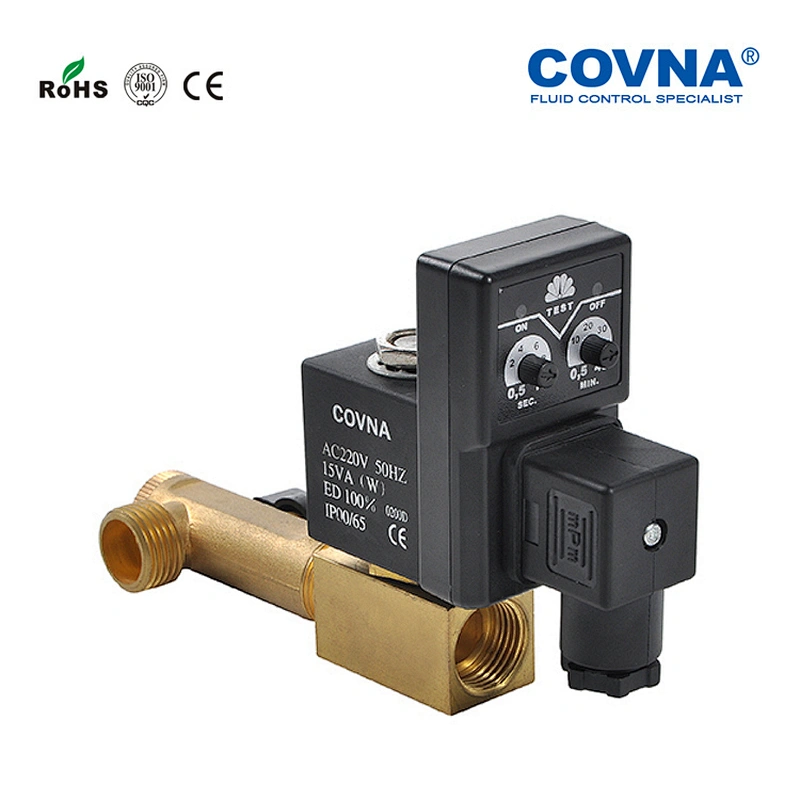

Electronic Auto Drain Valve With Timer
TIMER
Interval (minute) | 0.5-45 |
Drain time (second) | 0.5-10 |
Manual test button | Microswitch |
Voltages | 24-240V AC/DC,50-60HZ |
Current consumption | ≤4mA |
Ambient Temp | -40°C~+60°C |
Protection grade | IP65 |
Shell material | Flame Retarding ABS |
Electrical connection | DIN43650A |
Indicating lamp | LED indicating lamp |
Specification
Model | MIC-A-2 | MIC-A-3 | MIC-A-4 |
Connection Size (Female) | 1/4” | 3/8” | 1/2” |
Orifice Size | 5.0MM | ||
Body | Brass | ||
Working Pressure | 1.6Mpa,4.0Mpa(Optional) | ||
Ambient Temp | 2°C~+55°C | ||
Medium Temp | 0~90°C | ||
Insulate grade | H | ||
Protection grade | IP65 | ||
We have CE and RoHS certificate,the ISO9001 certificate is under processing.
1.18 months warranty
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.MOQ
There is no MOQ for COVNA design but for cusomer's, the MOQ according your design to
decide.we will offer the free sample for the massive products
3.Payment
We usually accept T/T(wire transfer), Western Union.
Trade Currency: USD or RMB.
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight.
4.Package
Our package method is in perfect condition, or according customized.
5.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
Q1: What is the Warranty for the solenoid valves?
A1: For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make replacement.
Q2:: What is NO and NC?
A2: NO stands for normally open, that is , valve keeps open without power.If connect it with power, the valve will get closed.NC stands for normally closed,that is valve keeps closed without power.If connect it with power, the valve will get open.
Q.3: What is the assembly way of solenoid valves?
A.3 we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.
Q4:Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.
Q5:Can we make customized product?
A5: Yes, we are good at making customized products.More than 30% of our products are customized products. We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.
