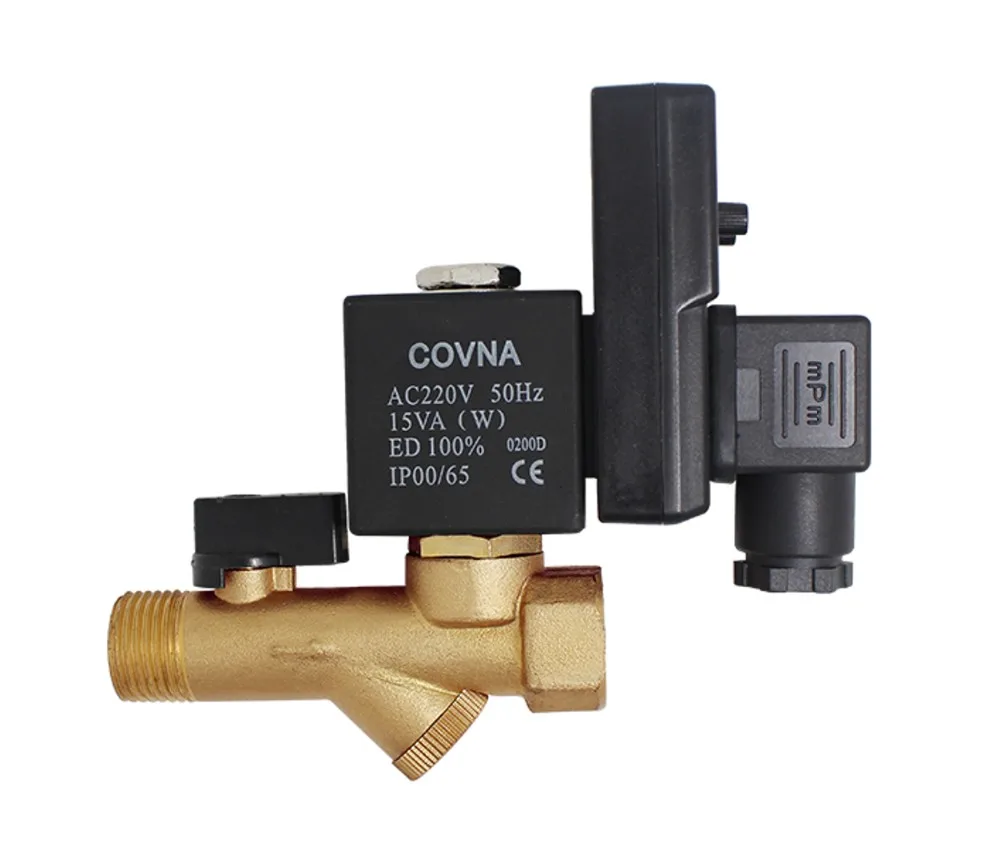

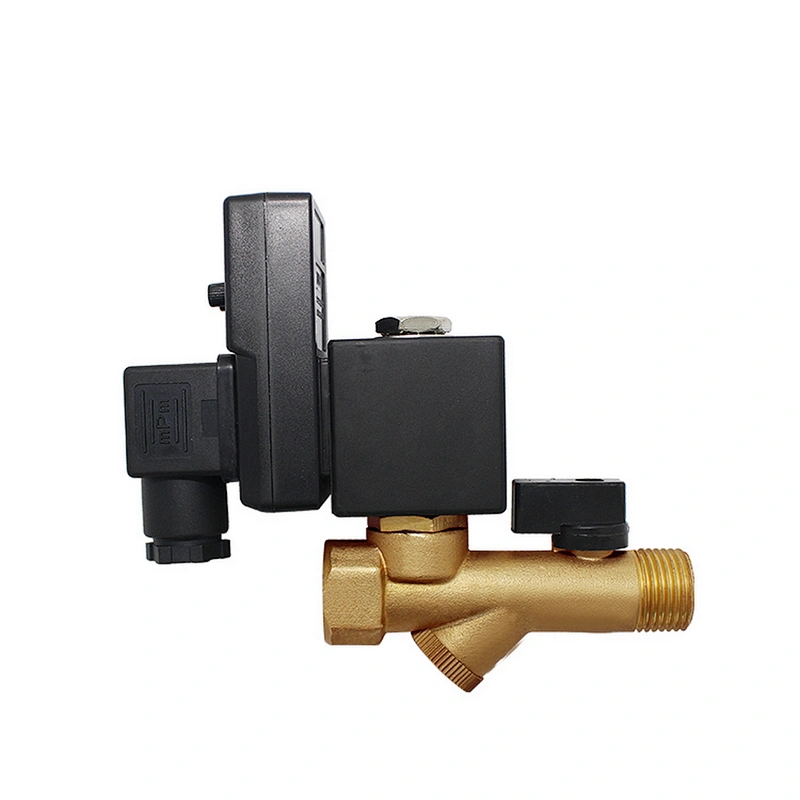

Industrial Compressed Air Brass Automatic Drain Valve

Industrial Compressed Air Brass Automatic Drain Valve

Model NO.: HK11
Price:: USD 4.00-10.00 / pieces
Delivery: FOB
Minimum order quantity: 30 pieces
Supply Ability: 30000 pieces / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Standard or Nonstandard:Standard
Structure:Diaphragm
Pressure:Medium Pressure
Power:Solenoid
Material:Brass
Temperature of Media:Medium Temperature
Media:Water
Place of Origin:CN;GUA
Application:General
Port Size:1/2"

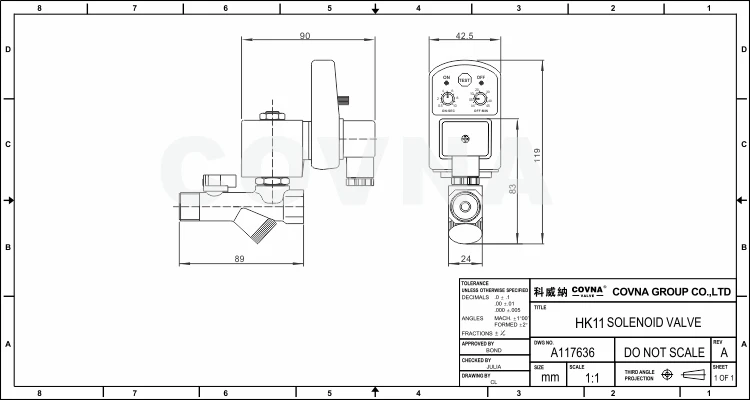

Model Number:HK11
Brand Name:COVNA

Specifications

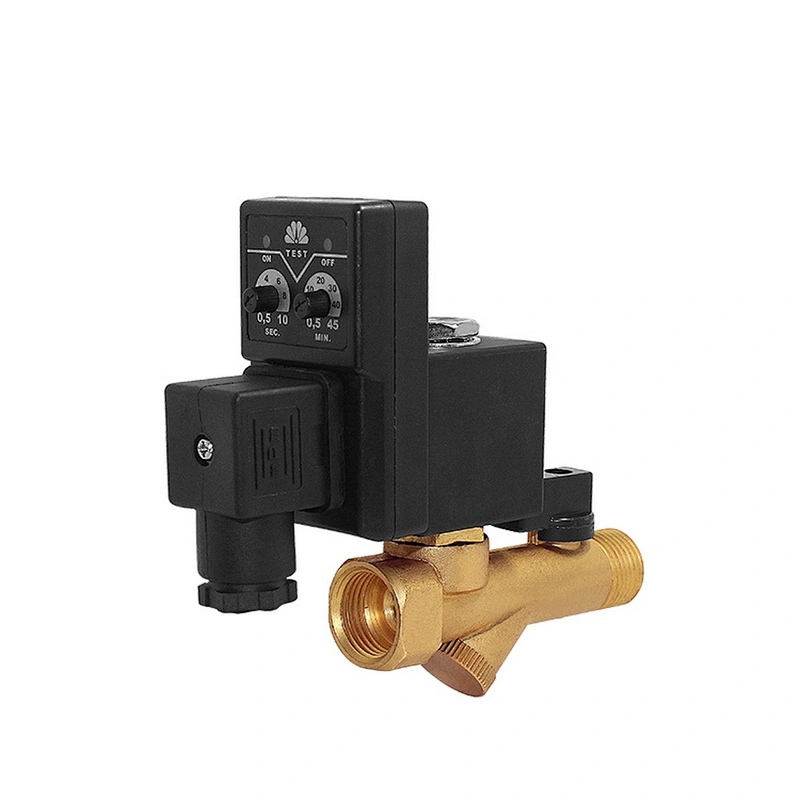

Time Interval (OFF ): 0.5-45 minutes (Adjustable)
Discharge Time (ON ): 0.5-10 seconds (Adjustable)
Manual Test Button: Yes (Micro Switch)
The Current Consumption: Max. 4mA
Maximum Working Pressure: 1.6MPa
Electrical Connection: DIN43650A

General Information on Elastomer Materials Frequently Used NBR (Buna"N", Nitrile) NBR is commonly referred to as a nitrile rubber and is the standard synthetic elastomer for accomplishing resilient-type seating or sealing in COVNA valves. It has excellent compatibility for most air, water, and light oil applications. It has a useful temperature range of 0°F to 180°F (-18°C to 82°C). EPDM (Ethylene Propylene) EPDM is selected for applications above the NBR temperature range, such as handling hot water and steam. Ethylene propylene has an extremely wide range of fluid compatibility, but has the distinct disadvantage that it cannot be used with petroleum-based fluids or contaminated fluids (such as lubricated air). It has a useful temperature range of -10°F to 212°F (-23°C to 100°C). FKM (Viton) FKM is a fluorocarbon elastomer primarily developed for handling such hydrocarbons as jet fuels, gasolines, solvents, etc., which normally cause detrimental swelling to NBR. FKM has a high temperature range similar to EPDM, but with the advantage of being somewhat more resistant to"dry heat."FKM has a wide range of chemical compatibility. It has a useful temperature range of 0°F to 248°F (-18°C to 120°C). PTFE (Teflon) PTFE is considered more a plastic than a resilient-type material. They're virtually unattacked by any fluid. Their temperature usage has ranged from discs for cryogenic valves to discs for steam valves. They're not easily fabricated and are known to have"cold flow"characteristics which may contribute to objectionable leakage, particularly on gases.

General Information on Elastomer Materials Frequently Used

NBR (Buna"N", Nitrile)
NBR is commonly referred to as a nitrile rubber and is the standard synthetic elastomer for accomplishing resilient-type seating or sealing in COVNA valves. It has excellent compatibility for most air, water, and light oil applications. It has a useful temperature range of 0°F to 180°F (-18°C to 82°C).

EPDM (Ethylene Propylene)
EPDM is selected for applications above the NBR temperature range, such as handling hot water and steam. Ethylene propylene has an extremely wide range of fluid compatibility, but has the distinct disadvantage that it cannot be used with petroleum-based fluids or contaminated fluids (such as lubricated air). It has a useful temperature range of -10°F to 212°F (-23°C to 100°C).

FKM (Viton)
FKM is a fluorocarbon elastomer primarily developed for handling such hydrocarbons as jet fuels, gasolines, solvents, etc., which normally cause detrimental swelling to NBR. FKM has a high temperature range similar to EPDM, but with the advantage of being somewhat more resistant to"dry heat."FKM has a wide range of chemical compatibility. It has a useful temperature range of 0°F to 248°F (-18°C to 120°C).

PTFE (Teflon)
PTFE is considered more a plastic than a resilient-type material. They're virtually unattacked by any fluid. Their temperature usage has ranged from discs for cryogenic valves to discs for steam valves. They're not easily fabricated and are known to have"cold flow"characteristics which may contribute to objectionable leakage, particularly on gases.

About COVNA

COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.

COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.

Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service

Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors

This is COVNA - solve your technical questions with solid experience.

Certifications

COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.

Packing

Packing: Pneumatic valves packed with foam in carton.

Delivery Time: 15 working days after payment confirmed.
