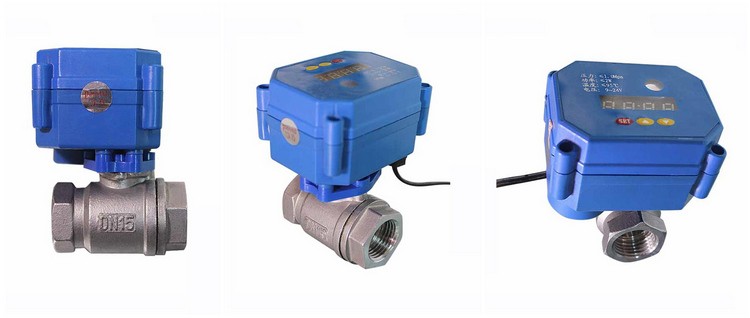

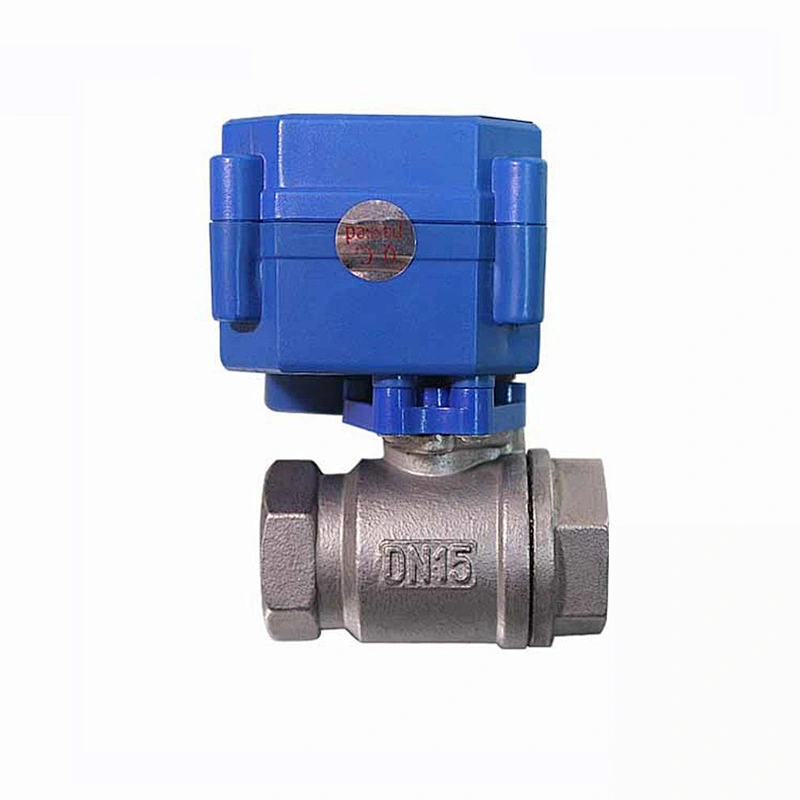

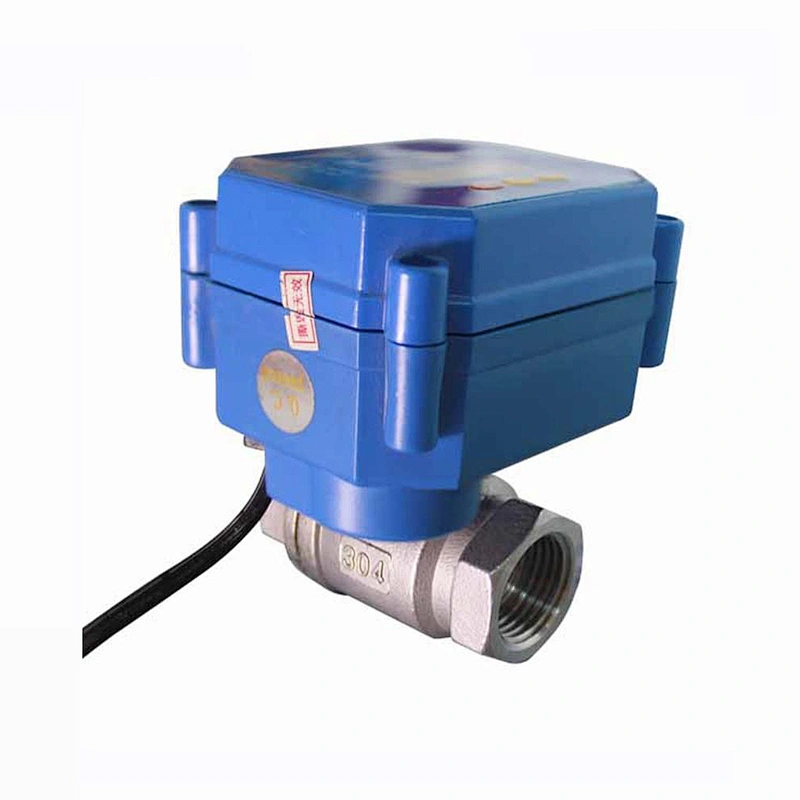

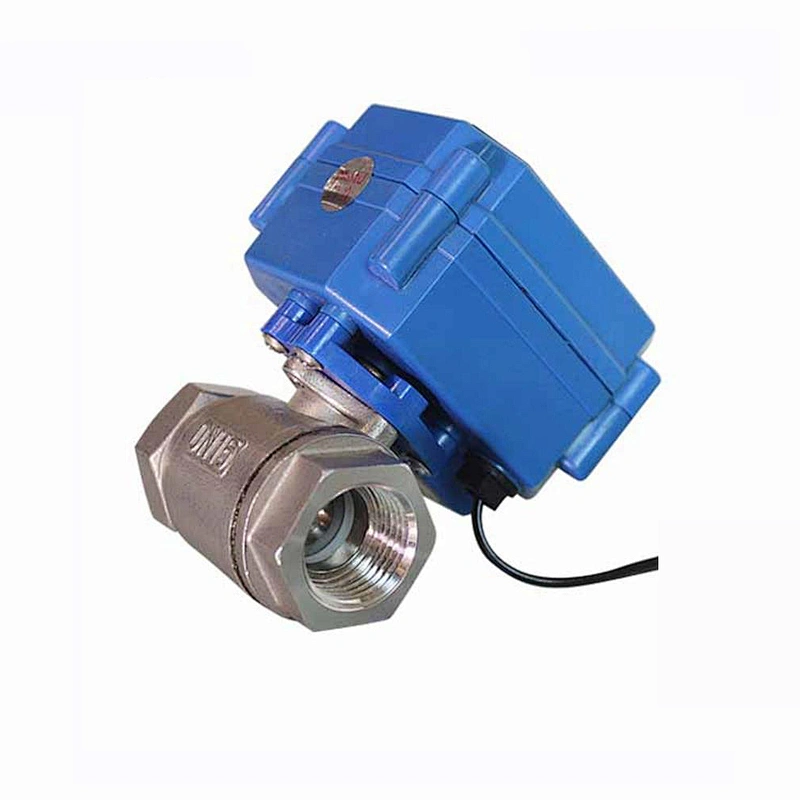

12V Small Stainless Steel Electric Rotary Actuator Fuel Shut Off Valve with Timer

12V Small Stainless Steel Electric Rotary Actuator Fuel Shut Off Valve with Timer

Model NO.: HK65-S series Ball Valve
Price:: USD 91.80-139.30 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Stainless Steel
Temperature of Media:Normal Temperature
Pressure:High Pressure
Media:Water
Structure:Ball
Power:Motorized
Brand Name:COVNA
Model Number:HK65-S Ball Valve
Port Size:1/2"~1", DN15~DN25

Specification

Features:

1. Full copper gear design, high-precision and high torque output
2. Compact design and structure
3. Low power consumption, energy-saving
4. Can be mounted in any direction
5. Good sealing performance, IP67 protection class

Item	12V Small Stainless Steel Electric Rotary Actuator Fuel Shut Off Valve with Timer
Product Size	1/2"~1", DN15~DN25
Max. Working Pressure	1.0MPa
Media	Water, Air, Gas, Oil, Liquid
Optional Voltage	DC5V, DC12V, DC24V, AC/DC9-35V, AC110V-230V (Optional)
Wiring Control Methods	CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR4-01, CR5-01, CR5-02, CR7-01, CR7-02, CR7-03, CR7-04 (Optional)
Working Current	≤80mA
Open/Close Time	≤7S
Life Time	100,000 Times

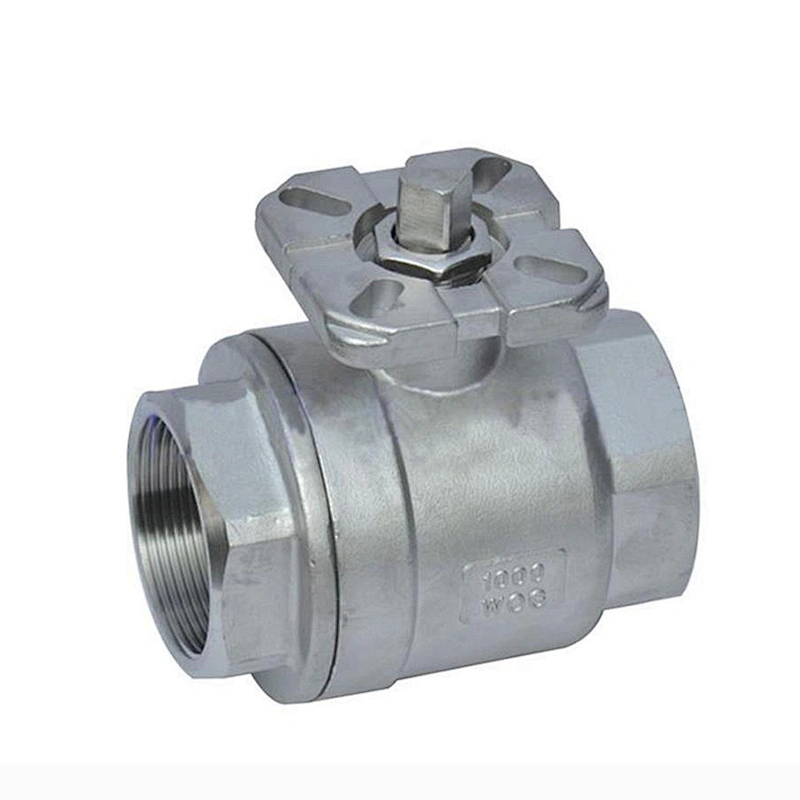

Valve Material	Stainless Steel
Actuator Material	Engineering Plastics
Sealing Material	EPDM & PTFE
Actuator Rotation	90°
Torque Output	2Nm
Ambient Temperature	-15°C~50°C
Liquid Temperature	2°C~90°C
Manual Override	Optional
Position Indicator	YES

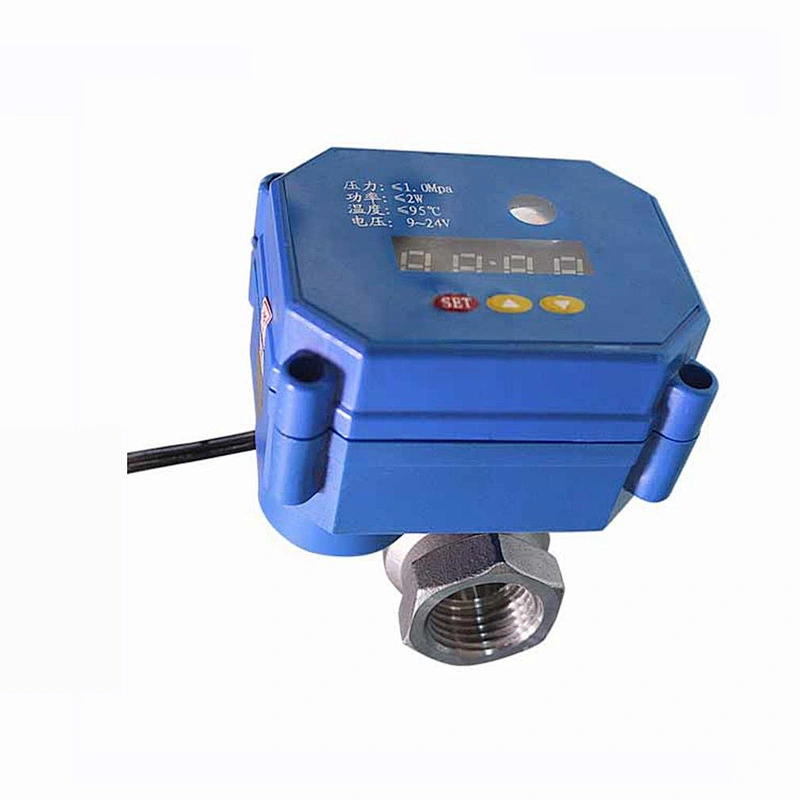

Keeping Valve Open Time	0H:0M:0S~99H:59M:59S
Application	Petrochemical, Power, Environmental Protection and Large-Scale Intelligent Water Meter Control and Other Fields

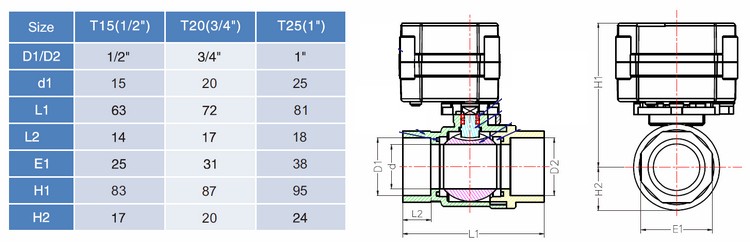

Dimension:

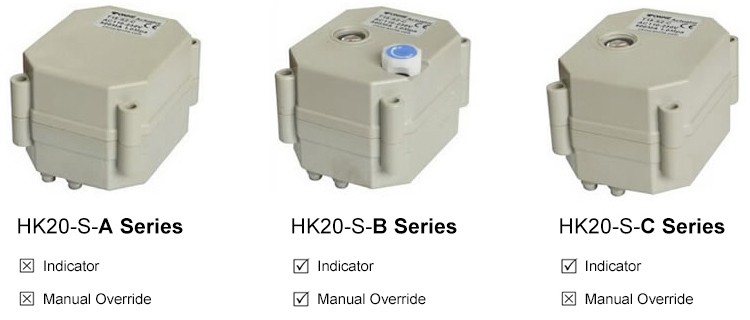

Electric Actuator

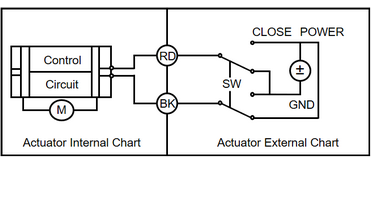

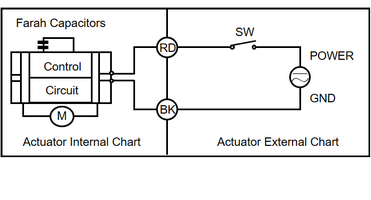

Wiring Diagram

Wiring Diagram

RD connect with positive, BK connect with negative, the valve closed, the actuator automatically power off after in place, the valve remains fully closed position.

BK connect with positive, RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position.

Suitable Working Voltage: DC12-24V.

Exceeding the working voltage is forbidden.

When the SW is closed , the valve open, the actuator automatically power off after in place.

When the SW is open, the valve closed, the actuator automatically power off after in place.

Suitable Working Voltage: DC12-24V.

Exceeding the working voltage is forbidden.

Contact Us for More Details!

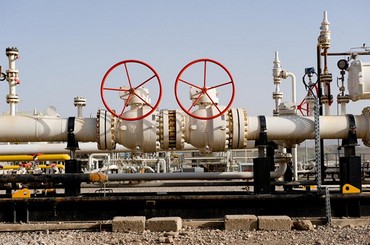

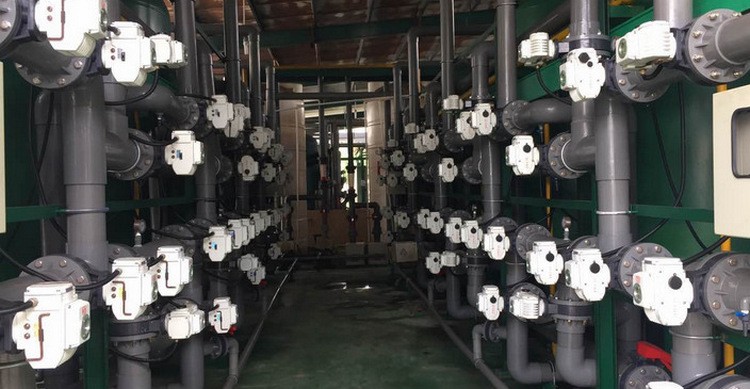

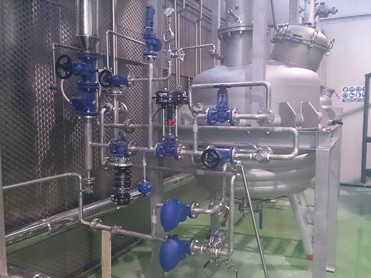

Application

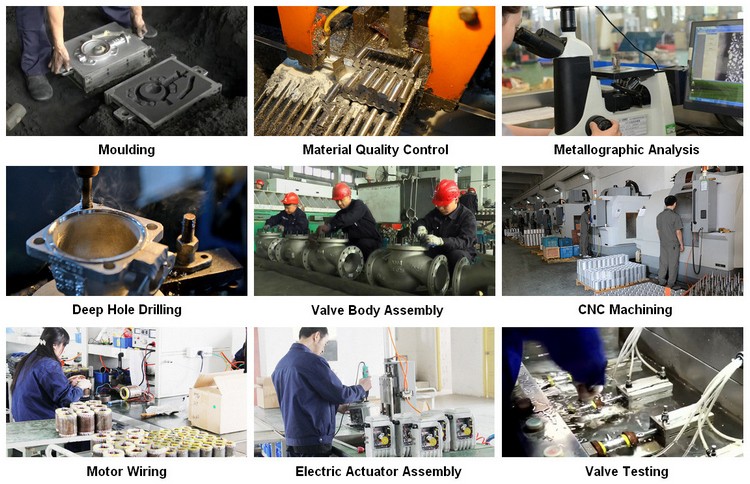

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
