- Place of Origin:CN;GUA
- Material:Alloy
- Brand Name:COVNA brand 220V air solenoid valve
- Model Number:4V230C type 220V air solenoid valve
- Power:Solenoid
- Pressure:Medium Pressure
- Application:General
- Port Size:1/4"
- Structure:Plug
- Standard or Nonstandard:Standard
- Media:Gas
- Temperature of Media:Normal Temperature
1. Service life: 10 million cycle times.
2. The bodies are mirror finished and hardending treated.
3. Equipped with imported oil seals with smaller fricion and longer service life.
4. With imported coils, low power consumption, speedy response.
5.Capable of long service time for 18 months

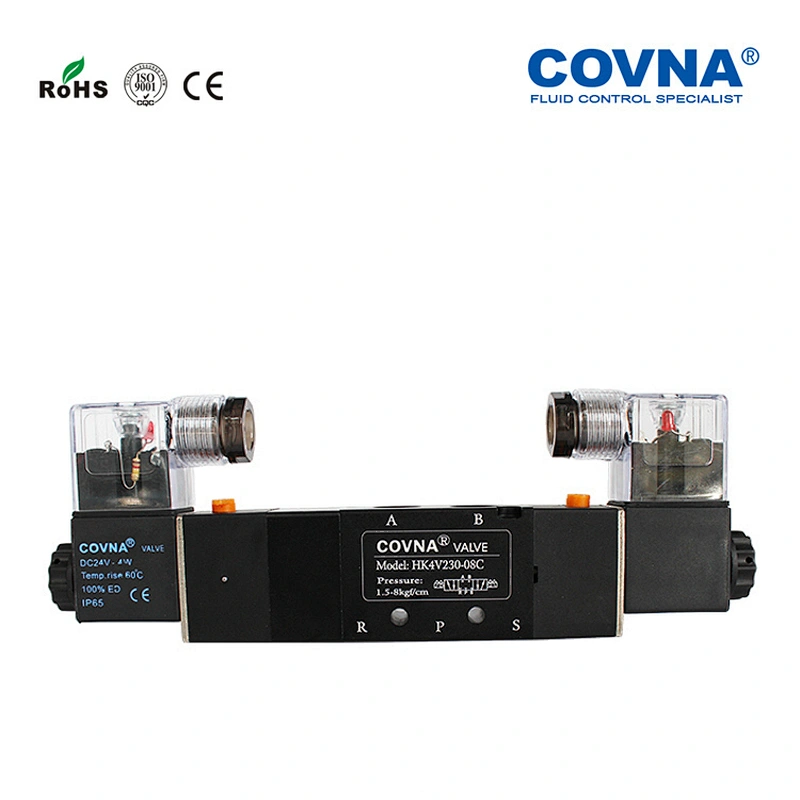

4V230-08C series 5/2 solenoid valve
| Product Name | 4V230-08C series 5/2 air solenoid valve |
| Material | Aluminum Alloy+NBR |
| Fluid | Air |
| Valve Type | 2/5way |
| Effecvtive area | 10mm2 12mm2 7mm2 9mm2 |
| Power consumption | AC:1.3W DC:1.5W |
| Insulation grade | F grade |
| Protection | IP65 |
| Operating pressure | 1.5~8.0kgf/cm² |
| Max.proof pressure | 10.5kgf/cm² |
| Ambient&fluid temp | 5~60°c |
| Voltage range | ±10% |
| Wiring Form | Lead Wire or Connector Type |
| Highest Action Frequency | 5 Cycle/Sec |
| Shortest Excitation Time | 0.05 Second |
| Standard Voltage | DC12V/DC24V/AC24V/AC110V/AC220V/AC380V |
| Samples | available |
| Delivery time | 3-10days |
| Payment terms | T/T,L/C,Western Union |
1.1 year warranty
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.MOQ
There is no MOQ for COVNA design but for cusomer's, the MOQ according your design to decide.
3.Payment
We usually accept T/T(wire transfer), Western Union
Trade Currency: USD or RMB
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight
4.Package
Our package method is in perfect condition, or according customized.
5.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
We have CE and RoHS certificate,the ISO9001 certificate is under processing
We specialize in developing,manufacturing and selling air cylinder,air solenoid valve,air source treatment, solenoid valve,pneumatic valve,electric valve,pulse valve,valves,solenoid valve accessory,pipeline accessory.
Company profile
Workshop view
Workshop view
FAQ
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q: What's your business scope?
A: Our business scope is air cylinder,air source treatment ,air solenoid valve ,motorize valve ,pneumatic valve ,quick fitting,etc.
Q: What's your delivery date?
A: It depends on the number of orders. Delivery date is 7-30 days. If you need emergency products, we can speed up the production of the first arrangement.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information, then we can give you an estimated price is for reference only. We can do any size and any color.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing. Valve/ solenoid valve /electric valve /pneumatic valve and air cylinder products and so on.
Q: How many years do you warrant?
A: 18 months warranty.
Q:How many years have you done valves,cylinders?
A: More than 13 years.
