COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
- Place of Origin:CN;GUA
- Application:General
- Temperature of Media:Normal Temperature
- Media:Water
- Structure:Ball
- Power:Motorized
- Brand Name:COVNA
- Model Number:HK60-Q-PT Ball Valve
- Port Size:1/2"~2"
Specification

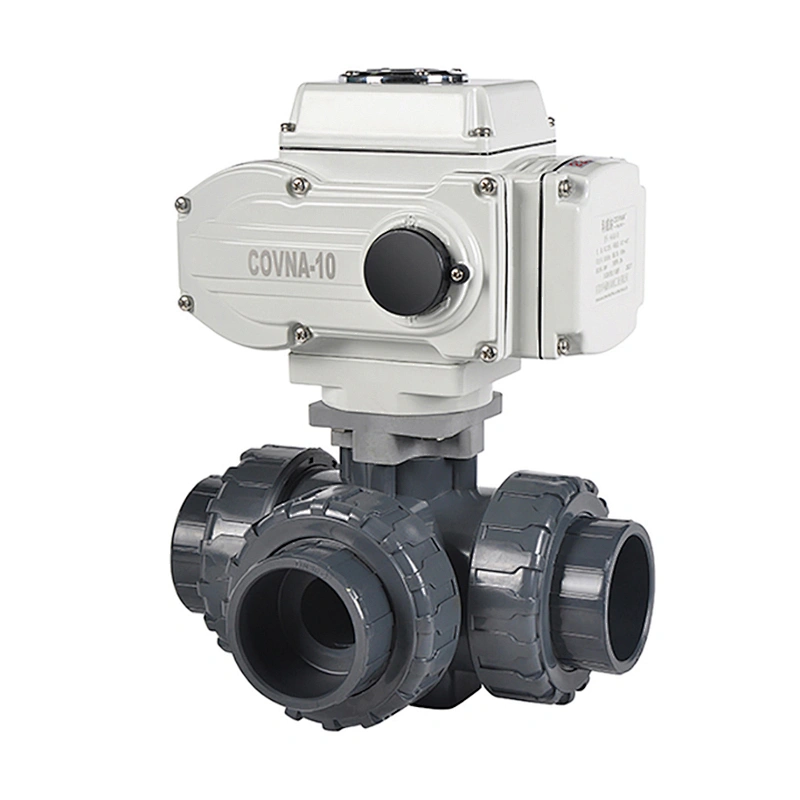

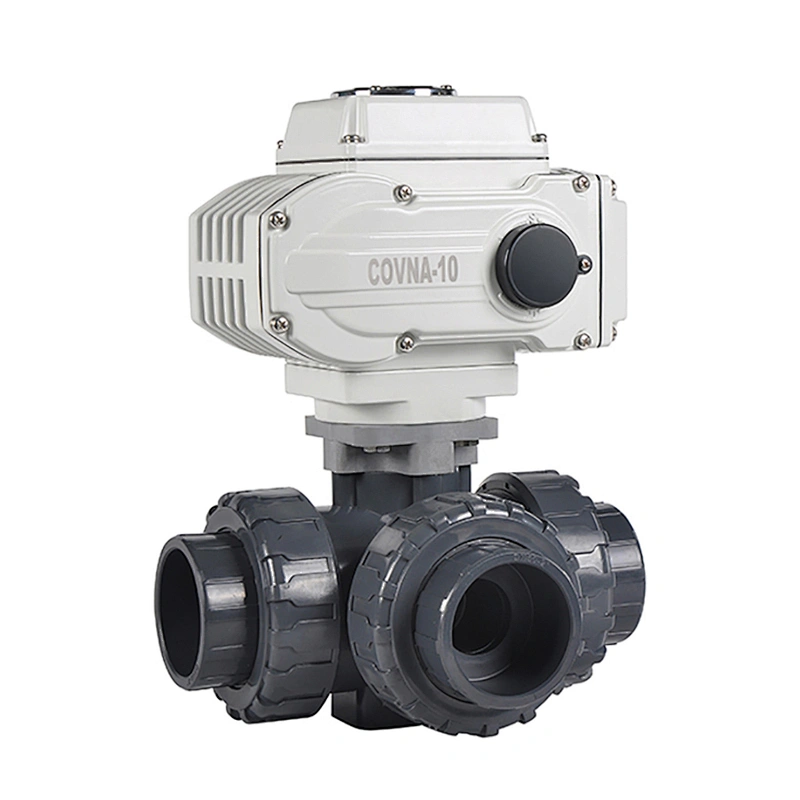

Item | COVNA DN50 2 inch 3 Way T Port 220V AC PVC True Union Ball Valve with On Off Electric Actuator | ||||
Size Range | 1/2"~2", DN15~DN50 | ||||
Operating Pressure | 0~1.0MPa | ||||
Control Mode | On Off Type / Modulating Type | ||||
Optional Voltage | DC24V (±10%), AC110-220V, 50/60Hz | ||||
Body Material | Plastic, PVC, UPVC | ||||
Core Material | Plastic, PVC, UPVC | ||||
Sealing Material | NBR: -5℃~80℃, EPDM: -5℃~120℃, PTFE: -30°C~180°C | ||||
Structure | 3 Way L Port, T Port are Available | ||||
Threaded Connection | Double Union, Threaded | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid | ||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Dimension:
Flow Diagram | ||||||
T Pattern
L Pattern

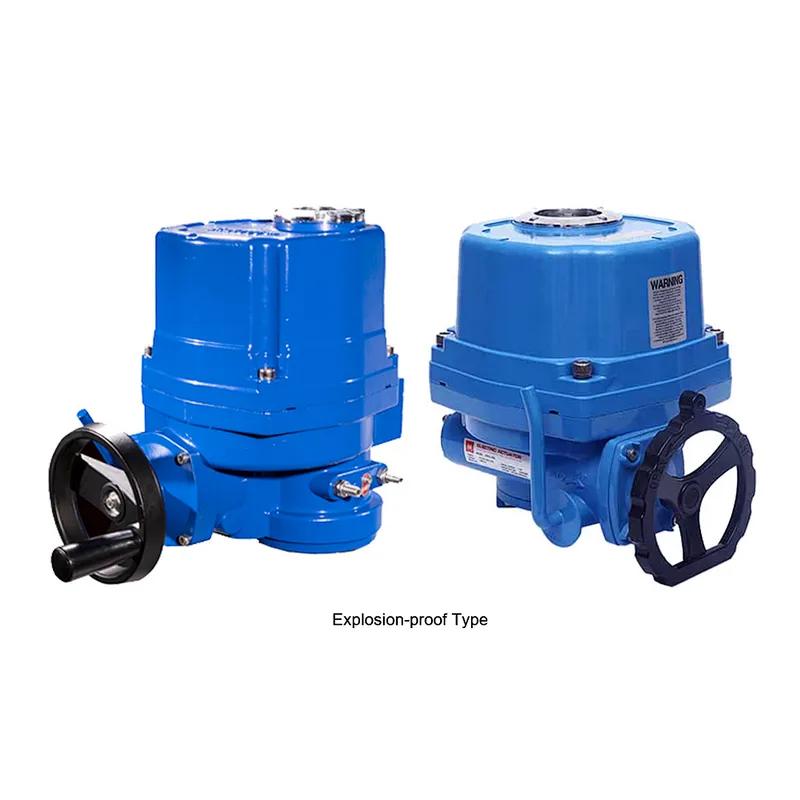

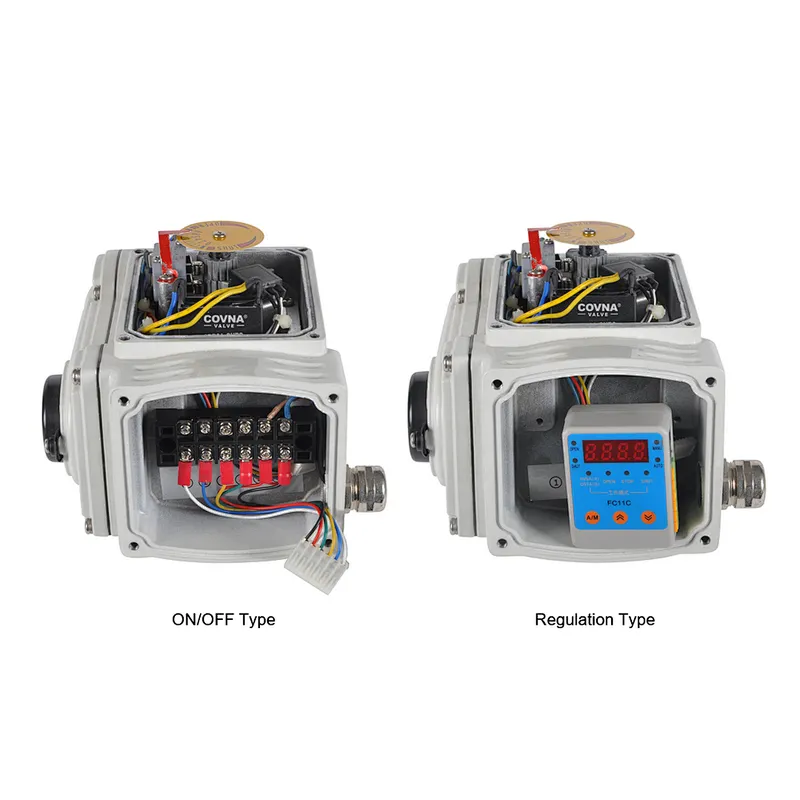

Electric Actuator
Wiring Diagram | ||||||
ON/OFF Type with Passive Contact Signal Feedback
AC Voltage
DC12V/DC24V Direct ON-OFF Type
DC Voltage
Regulation Type with Servo Control Module
AC Voltage / DC Voltage
Other AC/DC voltage can also be customized!
Application
Production Flow
About COVNA
COVNA Top Sales Team
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.
Packing
Packing: COVNA DN50 2 inch 3 Way T Port 380V AC 3 Phase PVC True Union Ball Valve with On Off Electric Actuator packed with foam in carton.
Delivery Time: 7 working days after payment confirmed.
