Product Description

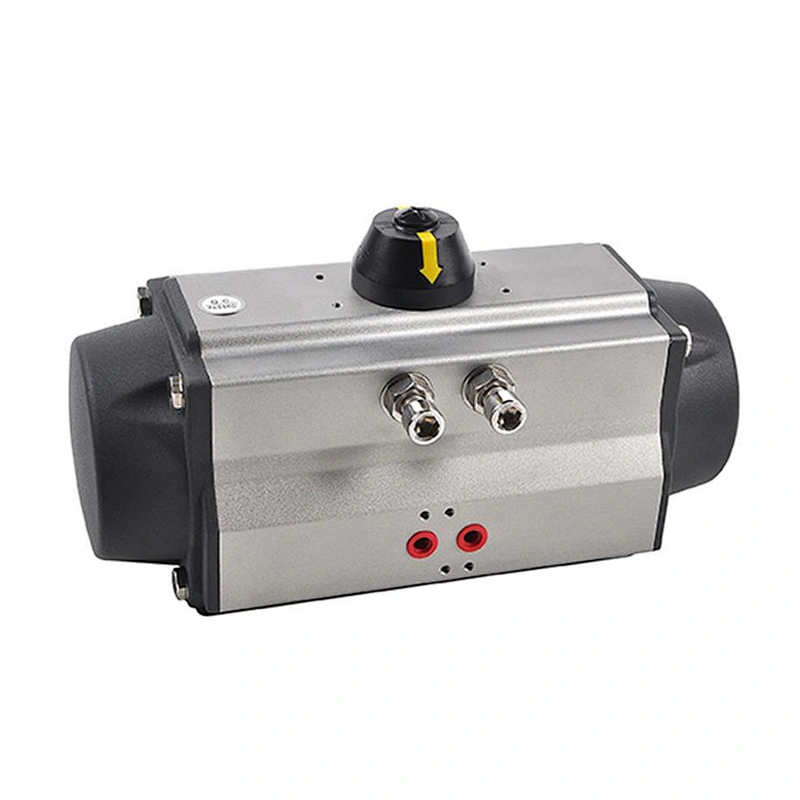

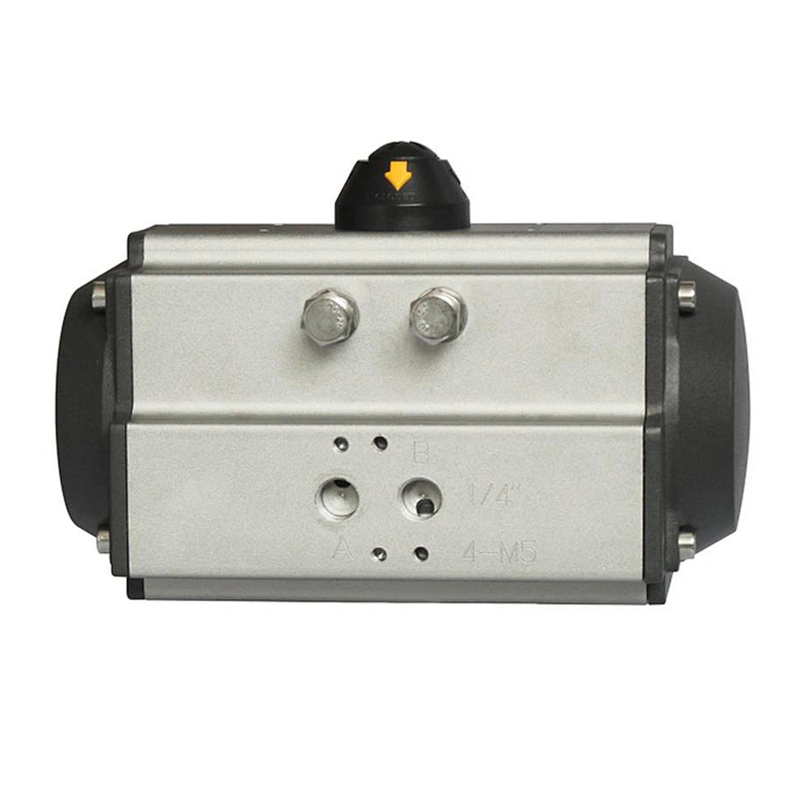

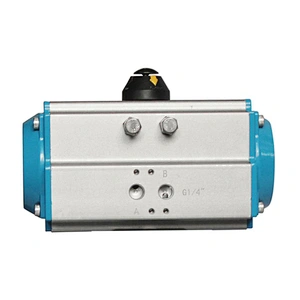

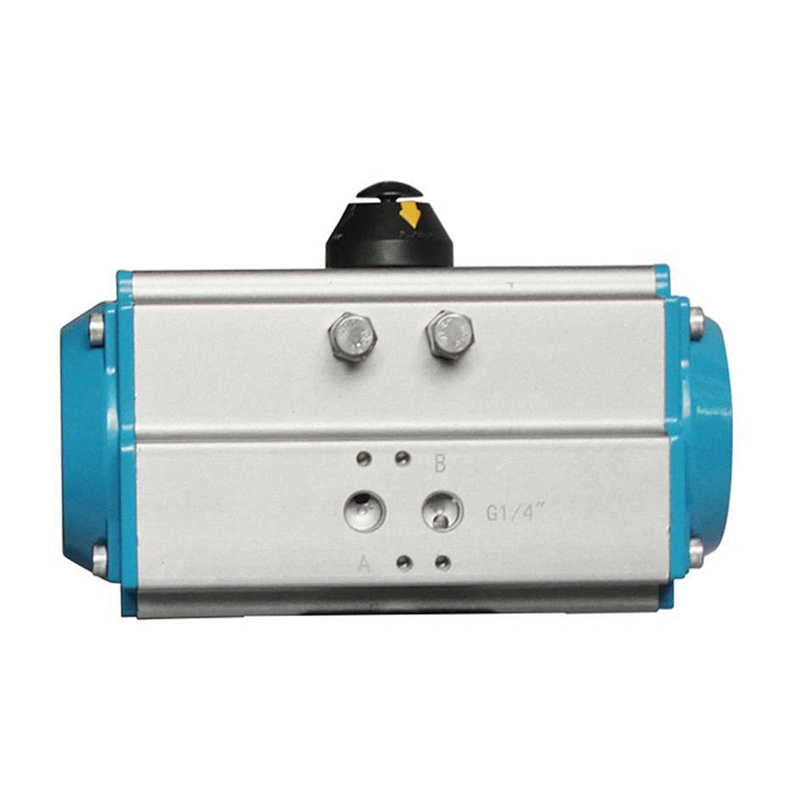

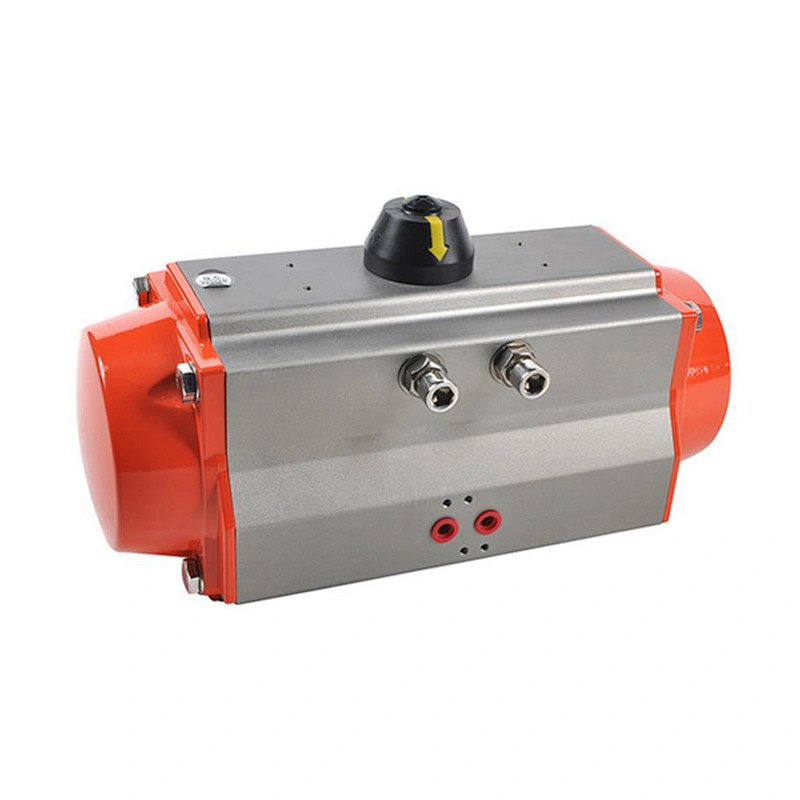

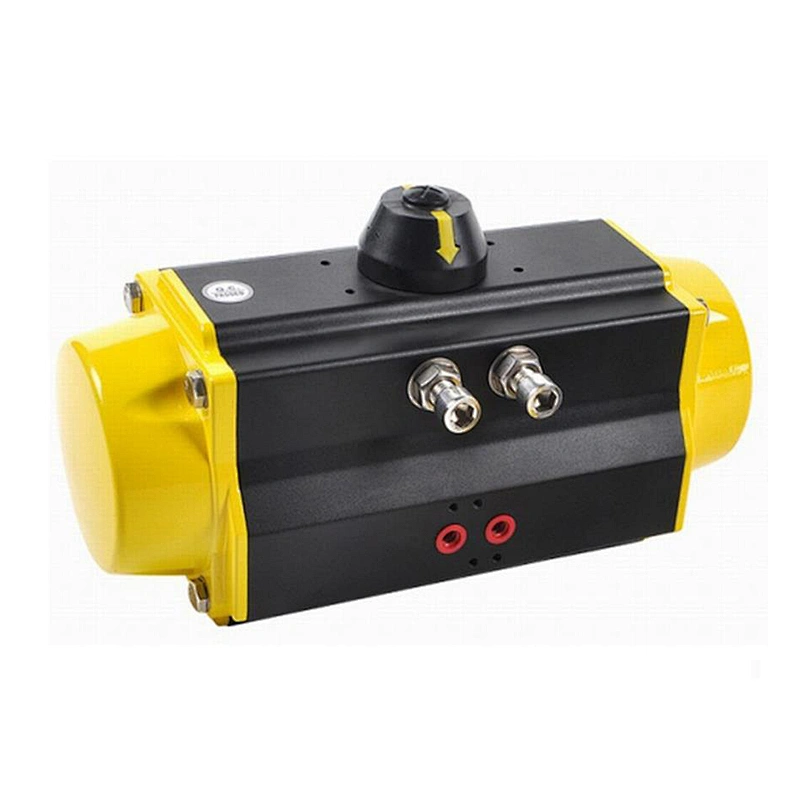

90 Degree Rotary Double Acting Pneumatic Valve Actuator
Advantages:
- MOQ: 1 set
- 19 years of valve manufacturing experience
- Strong inventory, part of commission returned for bulk delay
- Product quality will be guaranteed for 1 year (12 Months)
- OEM service to help customers to promote their brands
- Offer various international standard, ANSI, JIS, DIN, etc
- Custom complaints handed by one stop professional service.
- Inquiry will be replied within 8 hours
| Acting Mode | Double Acting, Spring Return (Single Acting) |
| Output Torque | 14 to 1170Nm |
| Air Supply Pressure | 2.5 to 8 bar |
| Lifespan | 1,000,000 (1 Million) Times |
| Angle of Rotation | 90° ±4° |
| Shell Material | Aluminum Alloy Extruded |
| Applicable Media | Filtered, Dry Compressed Air, Non-Corrosive Medium |
| Ambient Temp. | Standard Type: -20 to +80°C (-4 to 176°F) |
| Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device |
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper |
| Lubrication | There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions. |
All Accessories Can Be Order !
Click here to ask more info about the quote and the catalog.
Pneumatic Actuator
SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close
DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
Buyer Feedback
Company Information
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
