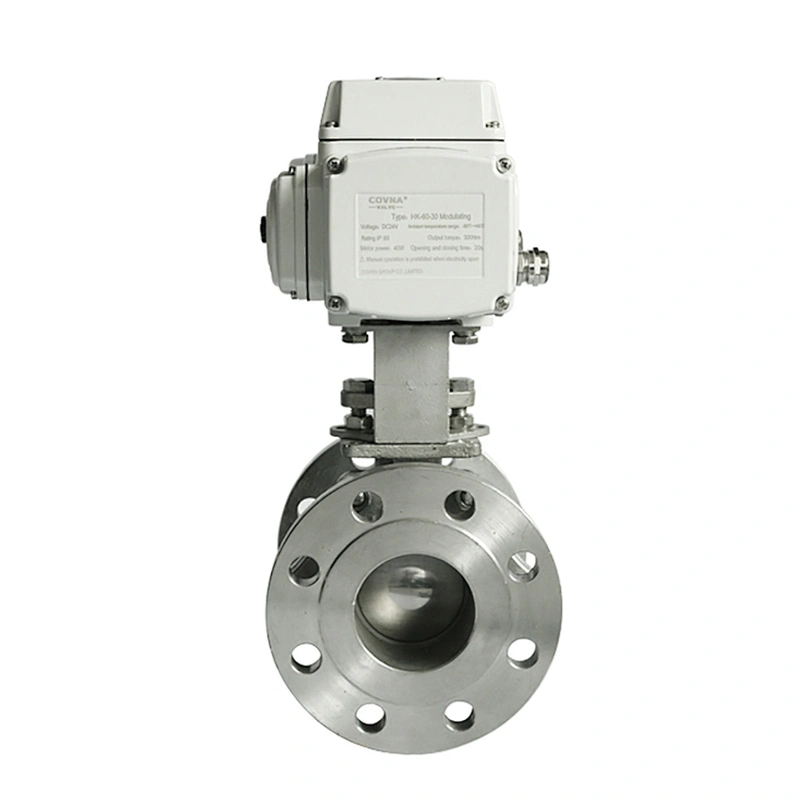

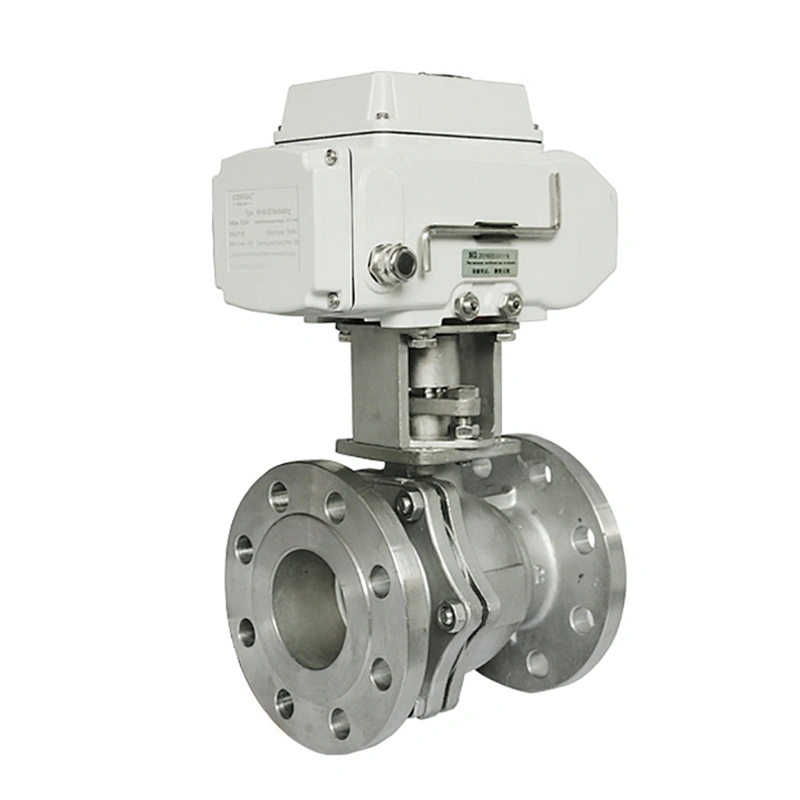

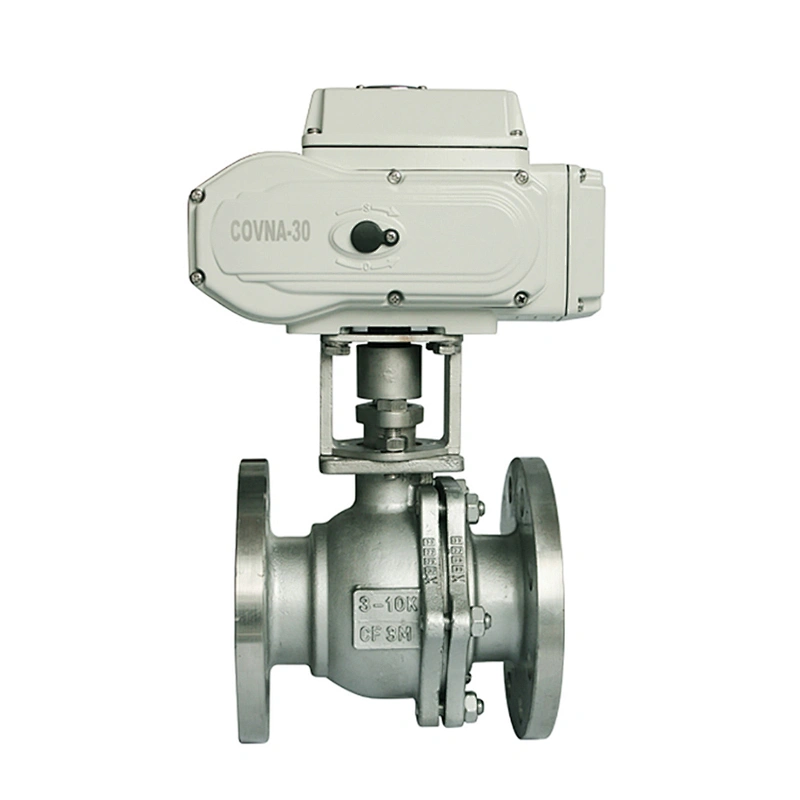

AC 220V Flanged Stainless Steel Motorized Electric Actuated Ball Valve

AC 220V Flanged Stainless Steel Motorized Electric Actuated Ball Valve

Model NO.: HK60-Q-F
Price:: USD 111.00-668.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 10000 piece / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Stainless Steel
Temperature of Media:Normal Temperature
Pressure:High Pressure
Media:Water
Structure:Ball
Power:Motorized
Brand Name:COVNA
Model Number:HK60-Q-F
Port Size:2"~12"

Specification

Item	AC 220V Flanged Stainless Steel Motorized Electric Actuated Ball Valve
Size Range	1/2"~8", DN15~DN200
Operating Pressure	1.0MPa~6.4MPa
Control Mode	On Off Type / Modulating Type
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Body Material	Stainless Steel, WCB, CF8, CF8M, CF3M
Core Material	Stainless Steel
Sealing Material	PTFE: -30°C~180°C, PPL: -30°C~150°C
Structure	2 Way, 3 Way are Available
Connection	Flanged
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

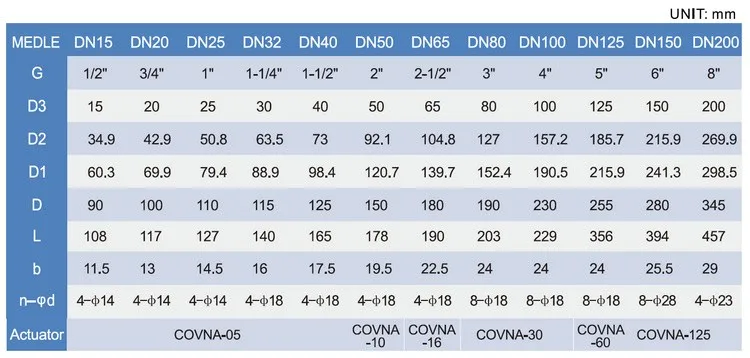

Dimension:

Electric Actuator

Wiring Diagram

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback

AC Voltage

DC12V/DC24V Direct ON-OFF Type

DC Voltage

Regulation Type with Servo Control Module

AC Voltage / DC Voltage

Other AC/DC voltage can also be customized!

Contact Us for More Details!

Application

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
