COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
- Type:SOLENOID VALVES
- Place of Origin:CN
- Application:General
- Temperature of Media:High Temperature
- Power:Solenoid
- Structure:Diaphragm
- Media:Diesel Fuel
- Brand Name:COVNA
- Model Number:US Solenoid Valve
- Port Size:1/2"to 2", DN15 to DN50
Specifications

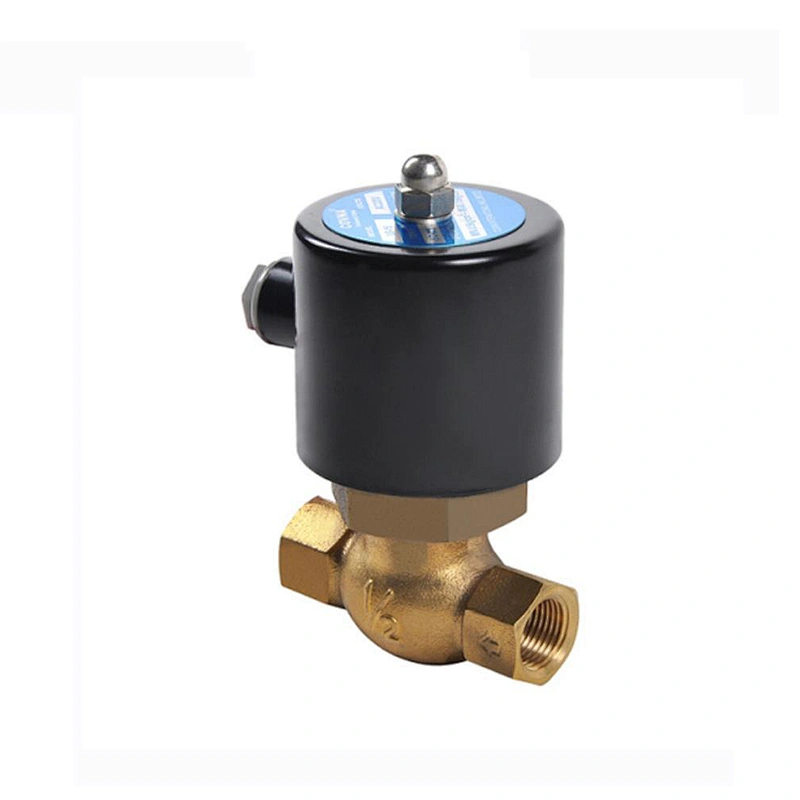

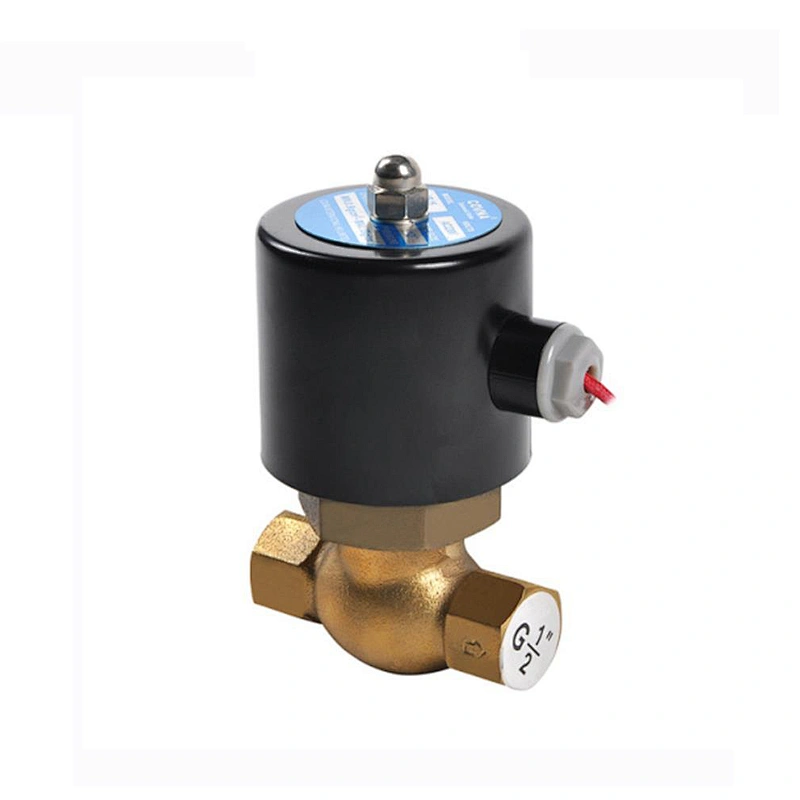

Item | COVNA Normally Closed Brass Steam PTFE Solenoid Valve |
Size Range | 1/2"~ 2" |
Medium | Hot Water,Steam,etc |
Temperature | PTFE: -5℃~180℃ |
Pressure | 0~1.0MPa |
Port Thread | BSP, Flange |
Voltage | DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz |
Tolerance | ±10% |
Material | Body: Brass or Stainless Steel Seal: PTFE Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304 |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
Technical Parameters | ||||||
Installation
Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.
Application
Production Flow
About COVNA
COVNA Top Sales Team
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.
Packing
Packing: COVNA 1/2 inch 2 Way 24V Normally Closed Brass Diesel Fuel Solenoid Valves packed with polybag in carton.
Delivery Time: 7-10 working days after payment confirmed.
