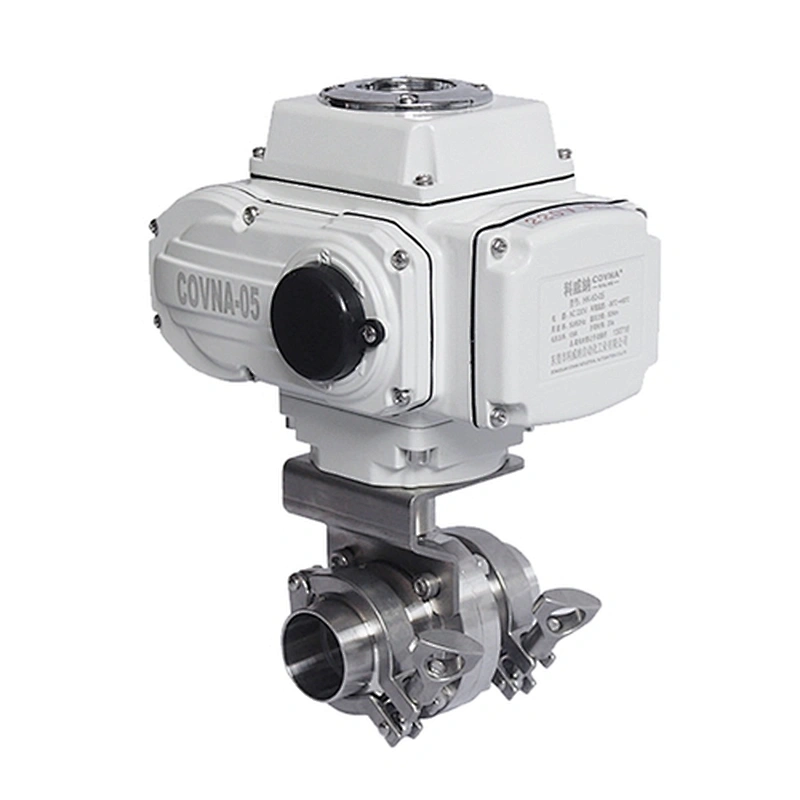

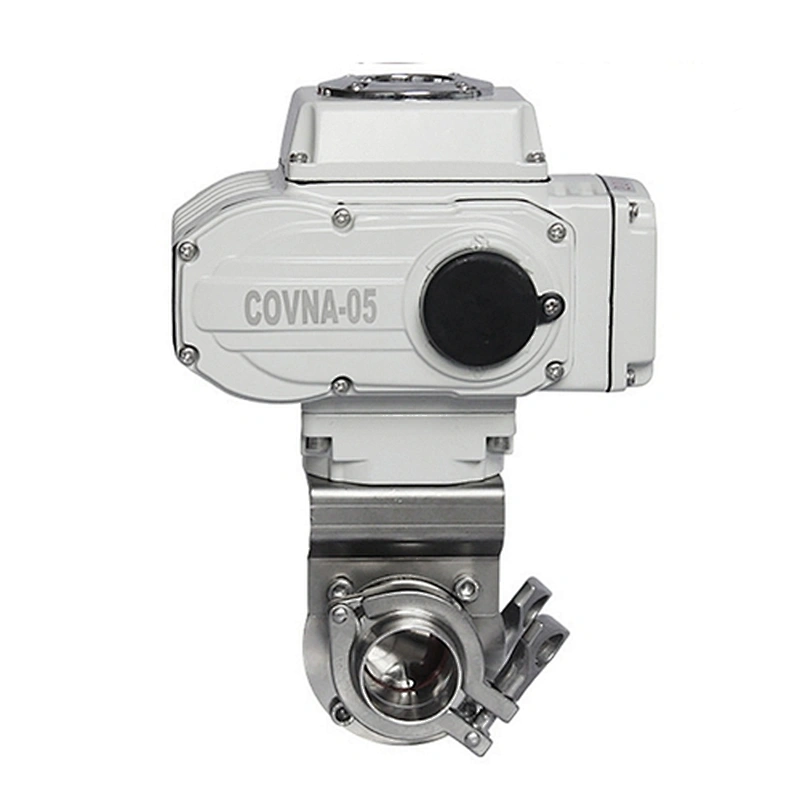

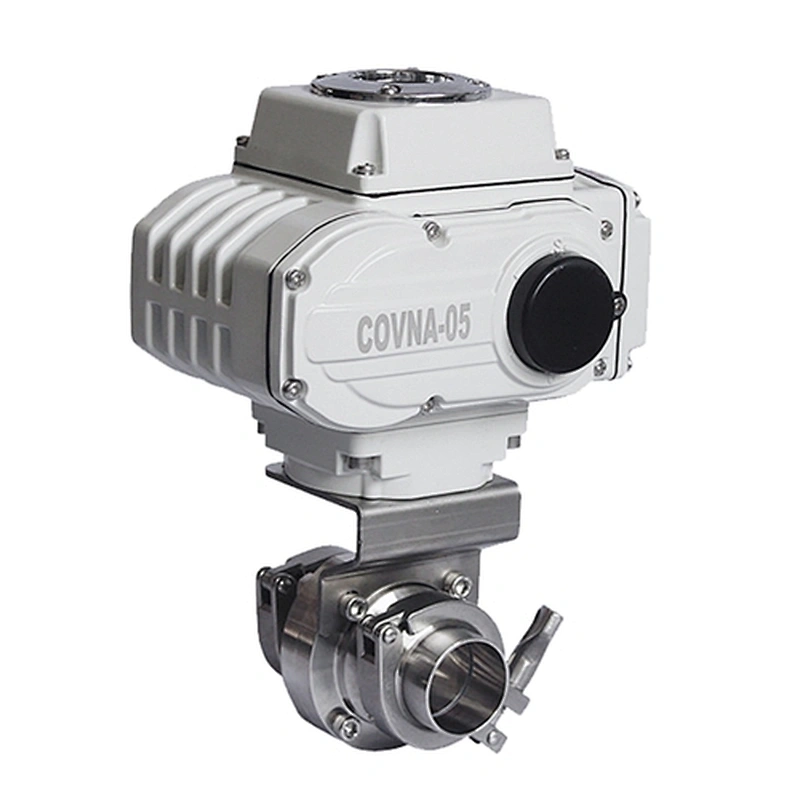

AC220V 4-20mA Sanitary Clamp Electronic Butterfly Valve with food grade

AC220V 4-20mA Sanitary Clamp Electronic Butterfly Valve with food grade

Model NO.: HK60-D-W
Price:: USD 118.00-210.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 10000 piece / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Temperature of Media:Low Temperature
Temperature of Media:Medium Temperature
Temperature of Media:Normal Temperature
Pressure:Medium Pressure
Media:Water
Structure:Butterfly
Material:SS304/SS316/SS316L
Power:electric
Brand Name:COVNA
Model Number:HK60-D-W
Port Size:DN15-100mm

Specifications

HK60Q-Q-3PS 3PC Ball Valve

HK60-Q-WT Sanitary Ball Valve

HK60-Q-PT Plastic Ball Valve

HK60-Q-F Flange Ball Valve

HK60-D Wafer Butterfly Valve

HK60-D-M Lug Butterfly Valve

In Stock, Start Order Now!

In Stock, Start Order Now!

Item	AC220V 4-20mA Sanitary Clamp Electronic Butterfly Valve with food grade

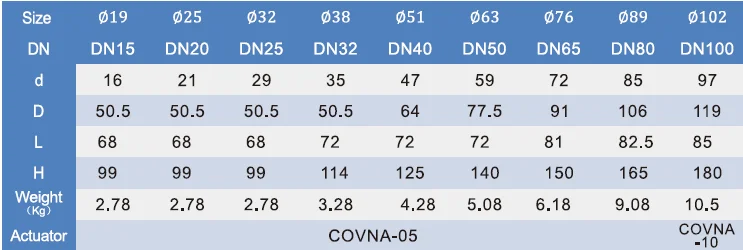

Size Range	DN15-100, 1/2"-4"
Operating Pressure	1-1.6MPa
Body Material	Stainless steel
Core Material	Stainless steel
Sealing Material	PTFE
Structure	2 Way, 3 Way are Available
End Connection	Clamp End
Applicable Media	Control of Water, Air, Gas, Oil, Liquid,Steam
Temp. of Media	Range from -20 to +180°C (14 to 356°F) with PTFE Sealing
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Technical Parameter for Actuator

Technical Parameter for Actuator

Control Mode	Function
ON-OFF Type	Feedback: the Active Contact Signal, Passive Contact Signal, Resistance
Regulation Type	Input & Output Signal: DC 4-20mA, DC 0-10V
Field Operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus

Shell Material	Die-Cast Aluminum Alloy (Powder Coated)
Lifespan	100,000 (Ten Thousand) Times
Output Torque	50 to 4000Nm
Angle of Rotation	90° ±4°
90° Cycle Time	15S/30S/60S
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Insulation Resistance	DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
Protection Class	IP65
Explosion Proof	EX d II BT4
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Ambient Temp.	Range from -20 to +180°C

Wiring Diagram

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback
AC Voltages

Regulation Type with Servo Controller Module
AC Voltages

Certifications

COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.

Packing

Packing: Air Preparation System of Air Preparation Units packed in polybag in carton.
Delivery Time: 15 working days after payment confirmed.

About COVNA

COVNA - Solve your technical questions with solid experience

We are COVNA Automations, one of the top manufacturers of quarter turn actuators and automatic control valve products in Dongguan, China with 18 years experience. Our industrial experience will be useful in your business and projects.
