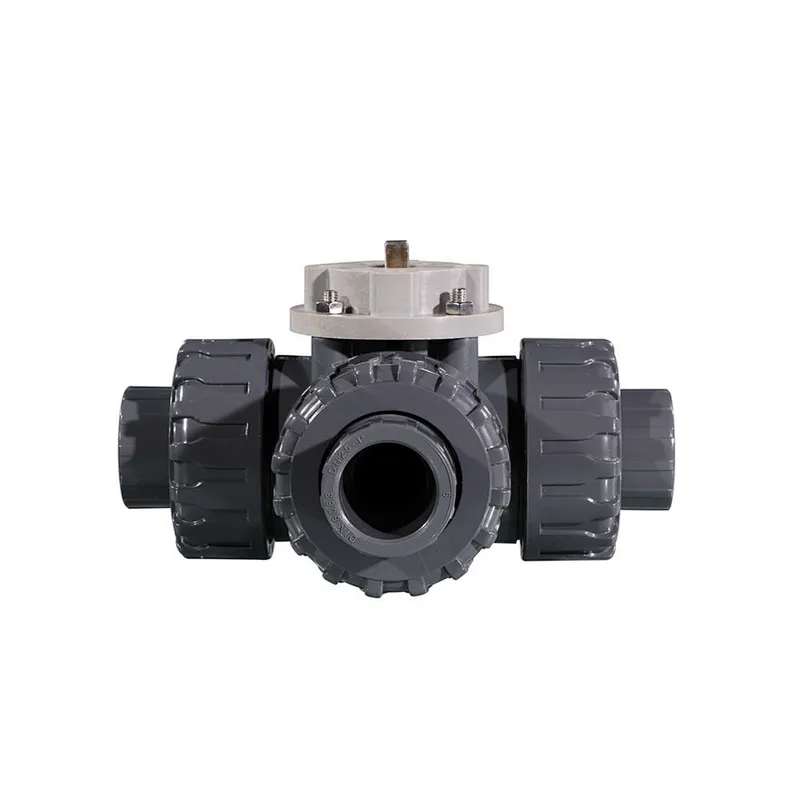

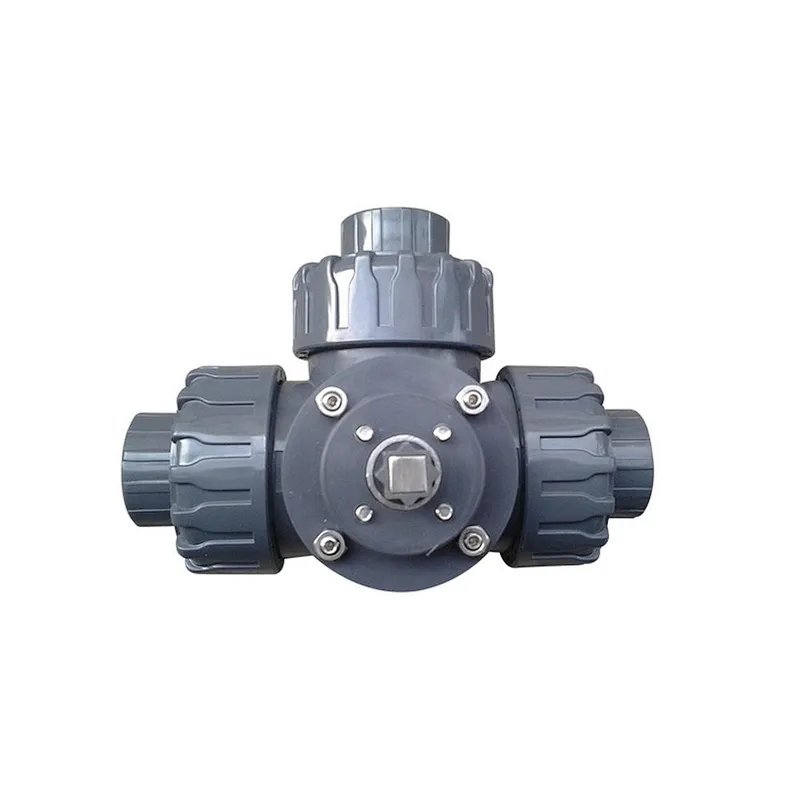

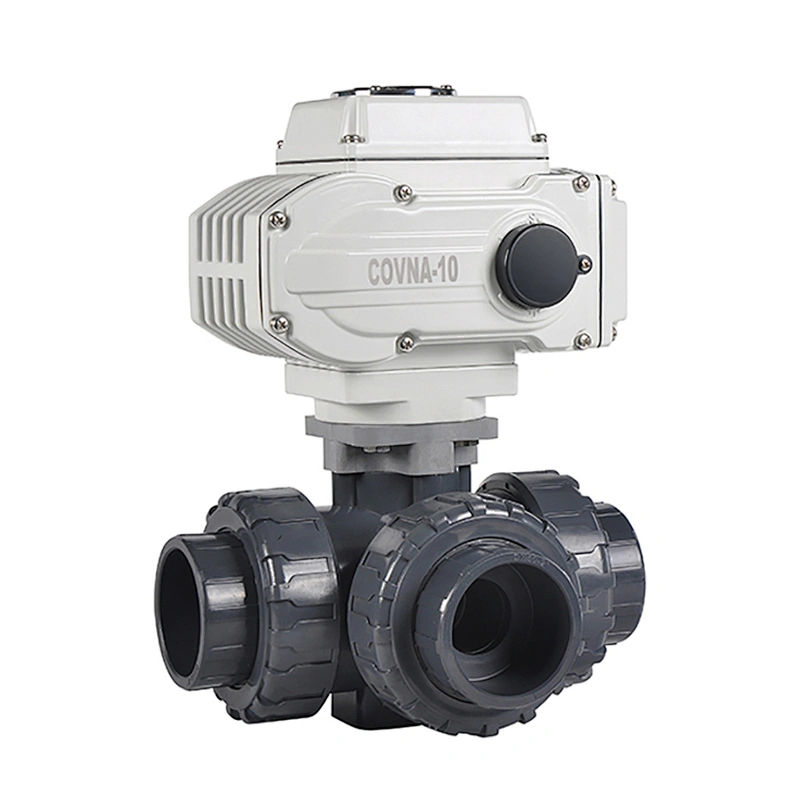

COVNA 1/2 inch 3 Way L Port 12 Volt Motorized PVC Plastic True Union Ball Valve for Water

COVNA 1/2 inch 3 Way L Port 12 Volt Motorized PVC Plastic True Union Ball Valve for Water

Model NO.: HK60-Q-PT PVC Ball Valve
Price:: USD 99.99-139.99 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 1000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Material:Plastic
Temperature of Media:Low Temperature
Temperature of Media:Medium Temperature
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Media:Water
Structure:Ball
Application:Chemical
Power:Motorized
Brand Name:COVNA
Model Number:HK60-Q-PT PVC Ball Valve
Port Size:1/2"PVC Ball Valve

Specifications

3PCS Ball Valves

Sanitary 3 Way Ball Valves

Plastic Ball Valves

Flange End Ball Valves

Wafer Type Butterfly Valves

Lug Type Butterfly Valves

In Stock, Start Order Now!

In Stock, Start Order Now!

Item	COVNA 1/2 inch 3 Way L Port 12 Volt Motorized PVC Plastic True Union Ball Valve for Water
Size Range	DN15
Operating Pressure	Low Pressure, 1.0MPa (145PSI)
Body Material	UPVC
Core Material	UPVC
Sealing Material	NBR, EPDM, FKM (VITON), PTFE
Structure	3 Way L Port, T Port are Available
End Connection	True Union, Flange End are Available
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media	Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Flow Diagram of T Pattern

Flow Diagram of T Pattern

Technical Parameter for Actuator

Technical Parameter for Actuator

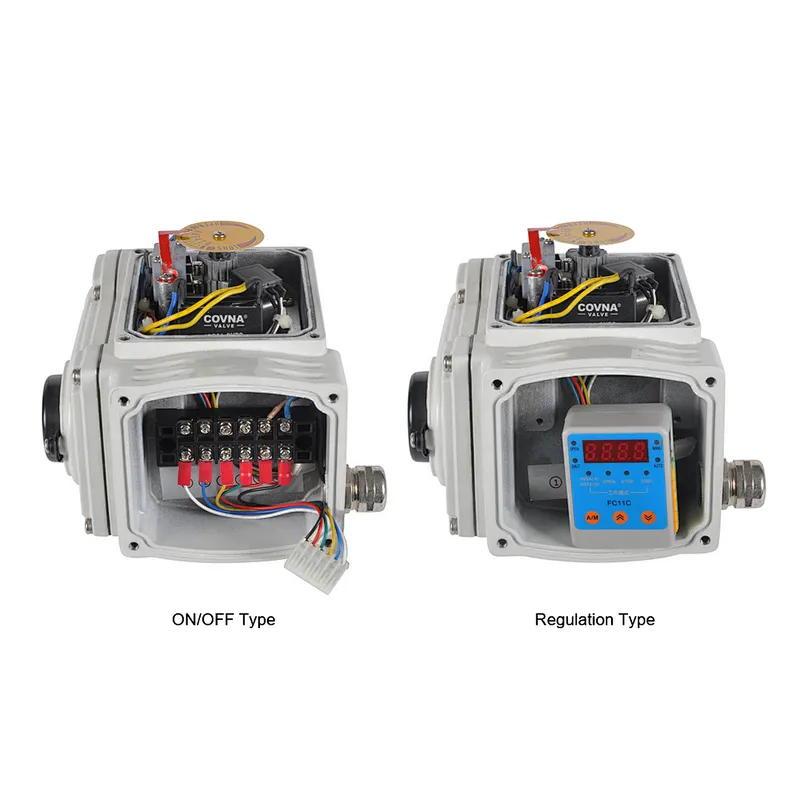

Control Mode	Function
ON-OFF Type	Feedback: the Active Contact Signal, Passive Contact Signal, Resistance
Regulation Type	Input & Output Signal: DC 4-20mA, DC 0-10V
Field Operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus

Shell Material	Die-Cast Aluminum Alloy (Powder Coated)
Lifespan	100,000 (Ten Thousand) Times
Output Torque	50 to 4000Nm
Angle of Rotation	90° ±4°
90° Cycle Time	15S/30S/60S
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Insulation Resistance	DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
Protection Class	IP65

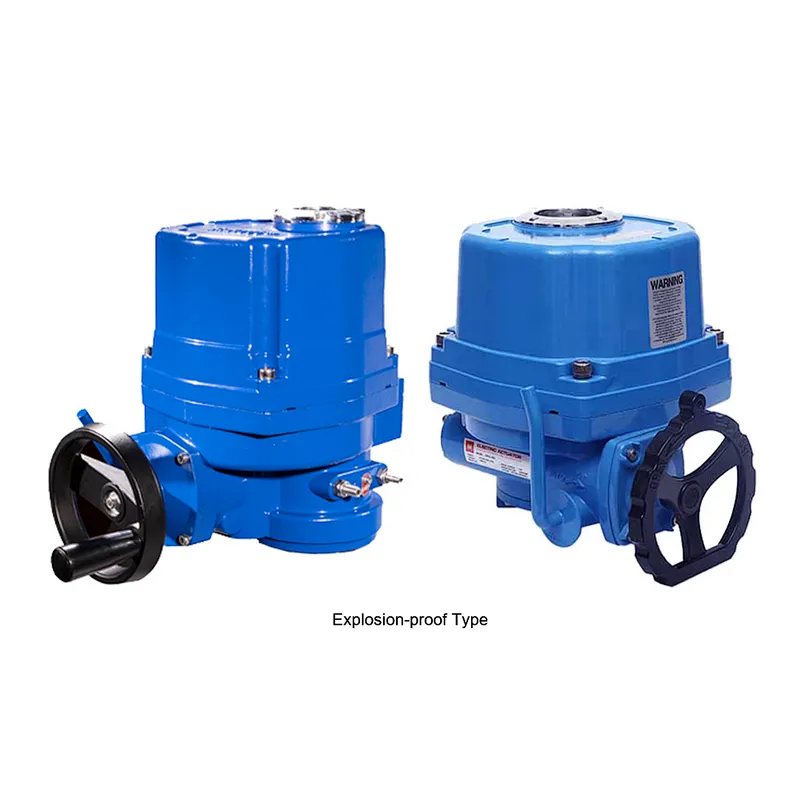

Explosion Proof	EX d II BT4
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Ambient Temp.	Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements)

Wiring Diagram

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback
AC Voltages

Regulation Type with Servo Controller Module
AC Voltages
