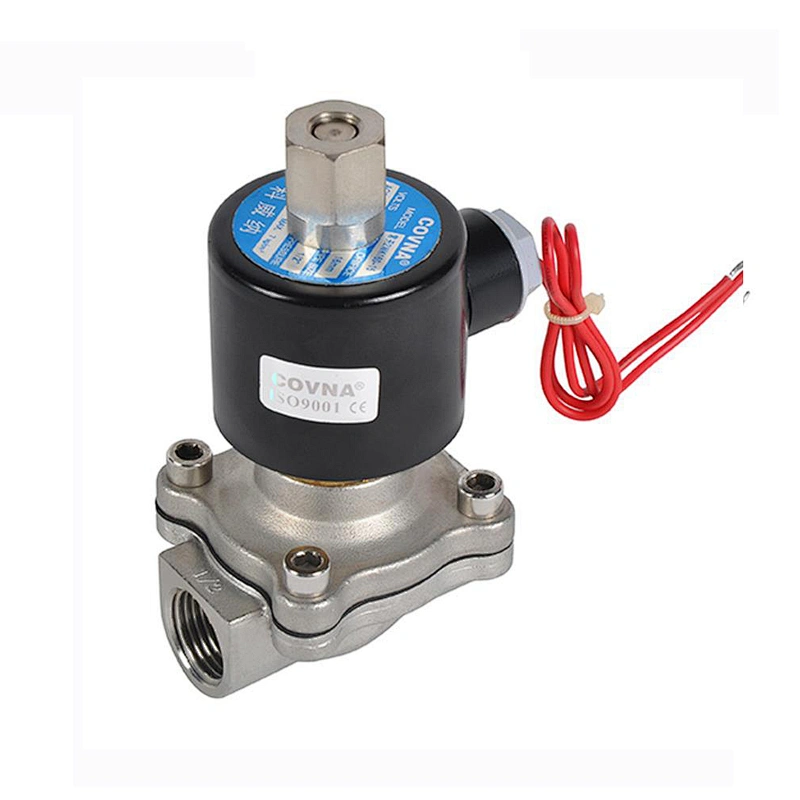

COVNA 2 Way 24 Volt Normally Open 304 Stainless Steel Electric Solenoid Water Valve

COVNA 2 Way 24 Volt Normally Open 304 Stainless Steel Electric Solenoid Water Valve

Model NO.: 2W-S-K Solenoid Valve
Price:: USD 23.00-118.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:China
Application:General
Material:Stainless Steel
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Solenoid
Media:Water
Structure:Diaphragm Solenoid Valve
Brand Name:COVNA
Model Number:2W-S-K Solenoid Valve
Port Size:1/2"~2"

Specifications

Item	COVNA 2 Way 24 Volt Normally Open 304 Stainless Steel Electric Solenoid Water Valve
Size Range	3/8"~ 2"
Medium	Water, Air, Steam, Gas, Oil, etc
Temperature	NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃
Pressure	0~1.0MPa
Port Thread	NPT, BSPP, BSP, Flange
Voltage	DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz
Tolerance	±10%
Material	Body: Brass or Stainless Steel Seal: VITON, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Technical Parameters

Technical Parameters

Contact us for more details!

Installation

Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.

Application

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
