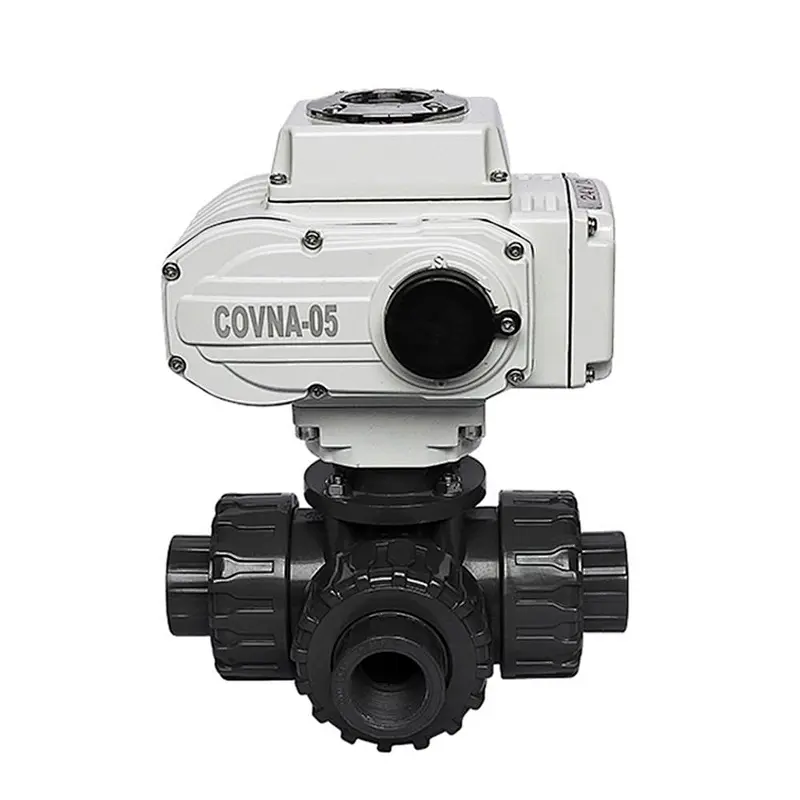

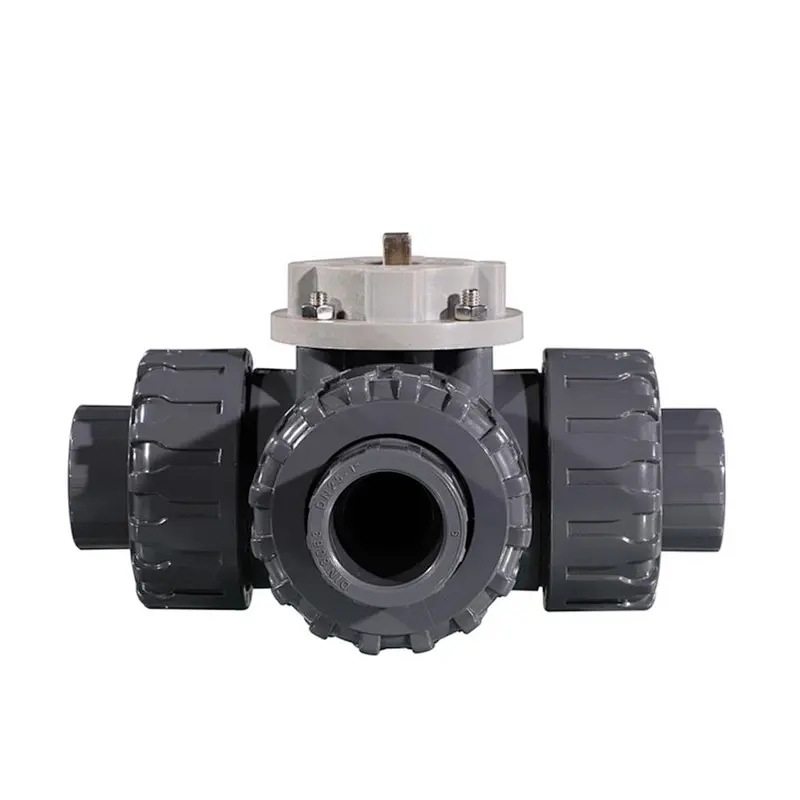

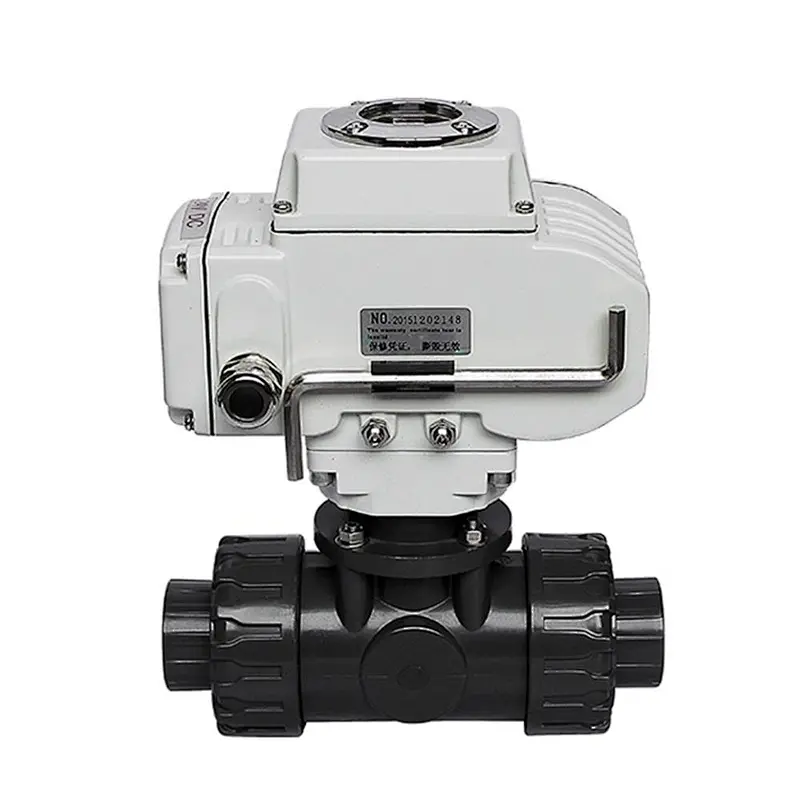

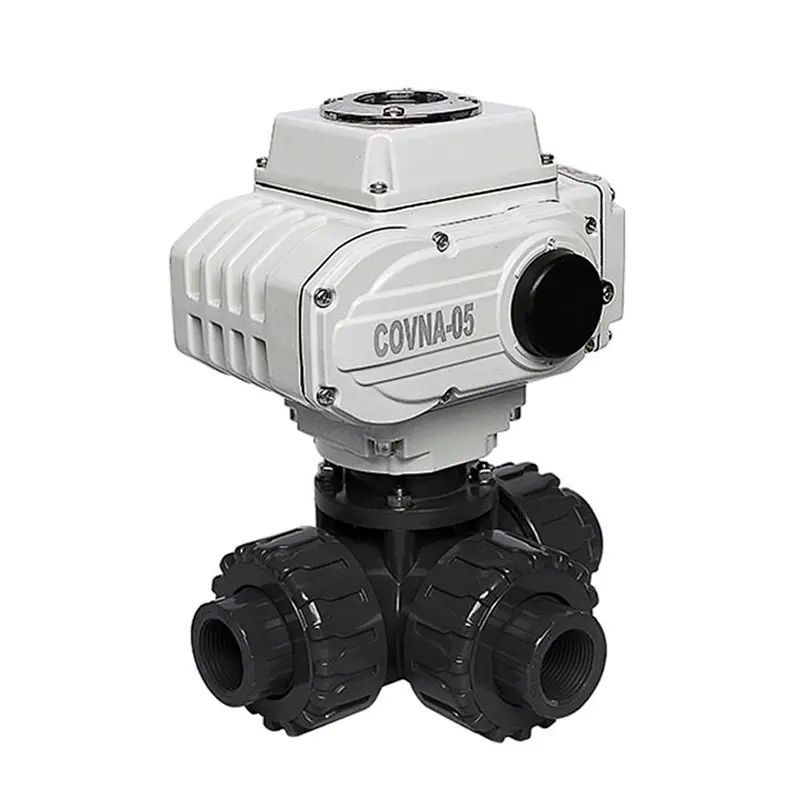

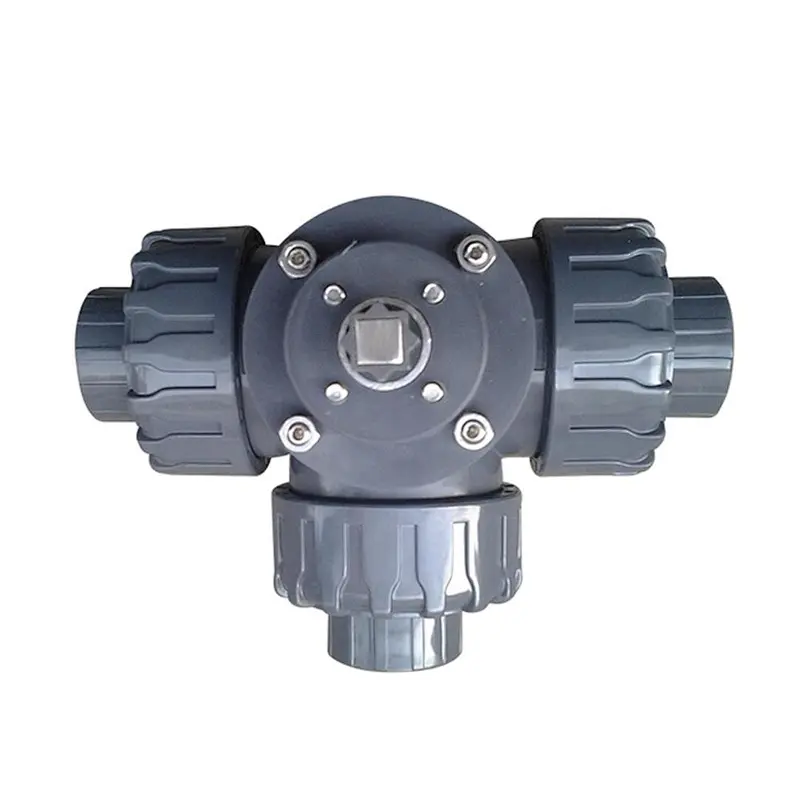

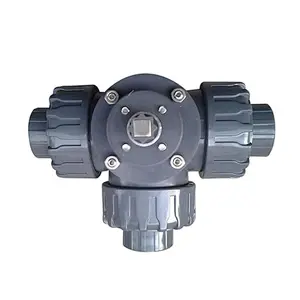

COVNA 50mm Three Way Threaded 12V PVC Plastic Motorized Ball Valve

COVNA 50mm Three Way Threaded 12V PVC Plastic Motorized Ball Valve

Model NO.: HK60-Q-P-T Ball Valve
Price:: USD 156.00-229.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Temperature of Media:Normal Temperature
Media:Water
Structure:Ball
Power:Motorized
Brand Name:COVNA
Model Number:HK60-Q-P-T Ball Valve
Port Size:1/2"~2", DN15~DN50

Specification

Item	COVNA 50mm Three Way Threaded 12V PVC Plastic Motorized Ball Valve
Size Range	1/2"~2", DN15~DN50
Operating Pressure	0~1.0MPa
Control Mode	On Off Type / Modulating Type
Optional Voltage	DC12-24V (±10%), AC110-220V, 50/60Hz
Body Material	PVC
Core Material	PVC
Sealing Material	NBR: -5℃~80℃, EPDM: -5℃~120℃, PTFE: -30°C~180°C
Structure	3 Way L Port, T Port are Available
End Connection	Threaded, Double Union
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Dimension:

Flow Diagram

Flow Diagram

T Pattern

L Pattern

Electric Actuator

Wiring Diagram

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback

AC Voltage

DC12V/DC24V Direct ON-OFF Type

DC Voltage

Regulation Type with Servo Control Module

AC Voltage / DC Voltage

Other AC/DC voltage can also be customized!

Contact Us for More Details!

Application

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
