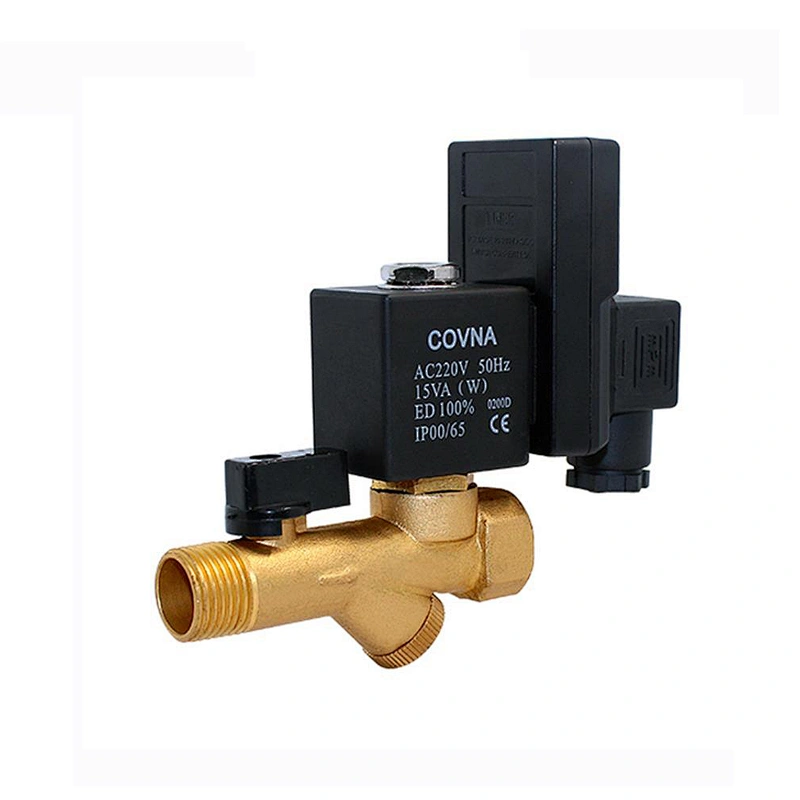

1/2" AC220V Electronic Timed Automatic Valve for Air Compressor

Model NO.: HK11 Solenoid Valve
Price:: USD 26.90-26.90 / set
Delivery: FOB
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Stainless Steel
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Solenoid
Media:Water
Structure:Pilot
Brand Name:COVNA
Model Number:HK11 Solenoid Valve
Port Size:DN15,1/2"

Specifications

◀ Wide Range of Coil Voltages

Multiple voltage options, DC24V, AC110-220V. Must be specified when ordering.

Low Temperature of Operation ▶

Built-in integrated chip, intelligently balance performance and temperature rise.

◀ Explosion-proof Coil

Explosion-protected construction and underwater coil are optional.

Underwater Coil, Zero Leakage Rating ▶

Underwater coil is optional. Ideal for interactive play fountains.

Start Order Now

Start Order Now

Item	1/2"AC220V Electronic Timed Automatic Valve for Air Compressor
Nominal Diameter	DN15,1/2"
Operating Pressure	Low Pressure, 0.03 to 1.0MPa (43.5 to 150PSI)
Number of Ways	2/2 Valve, Two Position Two Ways
Valve Operation Type	Normally Closed (NC), Opens When Energized
Body Material	Brass
Sealing Material	NBR
End Connection	Female Thread
Coil Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media	Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Ambient Temp.	Range from -20 to +60°C (-4 to 140°F)
Protection Class	IP67, Explosion-protected Construction are Available
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Dimension

Production Flow

Raw Material Check

Employing the best raw material, carefully selected.

Solenoid Coil Winding

Low temperature rise solenoid coil.

Diaphragm Lasering

Laser cutting.

CNC Machining

Advanced CNC machine from German.

Semi-finished Products and Components

Partly finished products, waiting for further processing.

Solenoid Valve Assembly

Assembled by qualified engineers.

During Production Check

Identify defects and fix them.

Final Quality Control

100% tested before shipping.

About COVNA

COVNA - Solve your technical questions with solid experience

We are COVNA Automations, one of the top manufacturers of quarter turn actuators and automatic control valve products in Dongguan, China with 18 years experience. Our industrial experience will be useful in your business and projects.
