- Place of Origin:CN;GUA
- Material:Brass
- Brand Name:COVNA coal gas solenoid valve
- Model Number:HKPS01A-15 coal gas solenoid valve
- Power:Solenoid
- Pressure:Medium Pressure
- Port Size:1/2"
- Structure:Diaphragm
- Standard or Nonstandard:Standard
- Temperature of Media:Medium Temperature
- Media:Coal gas, gas

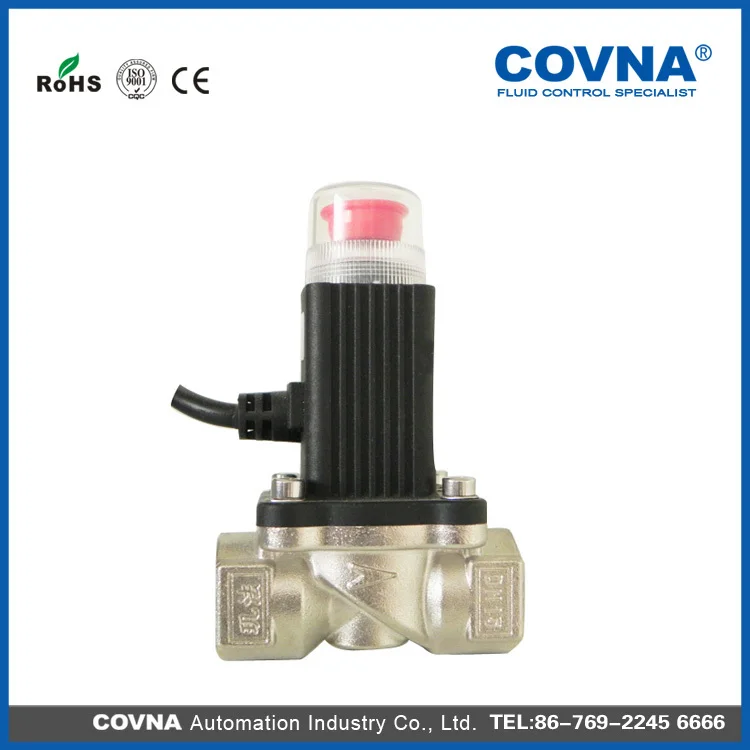

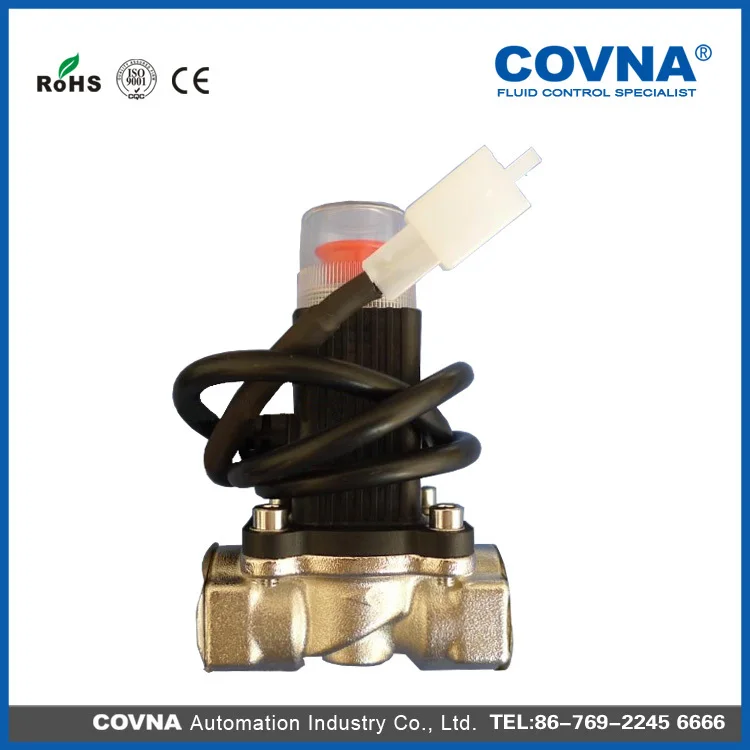

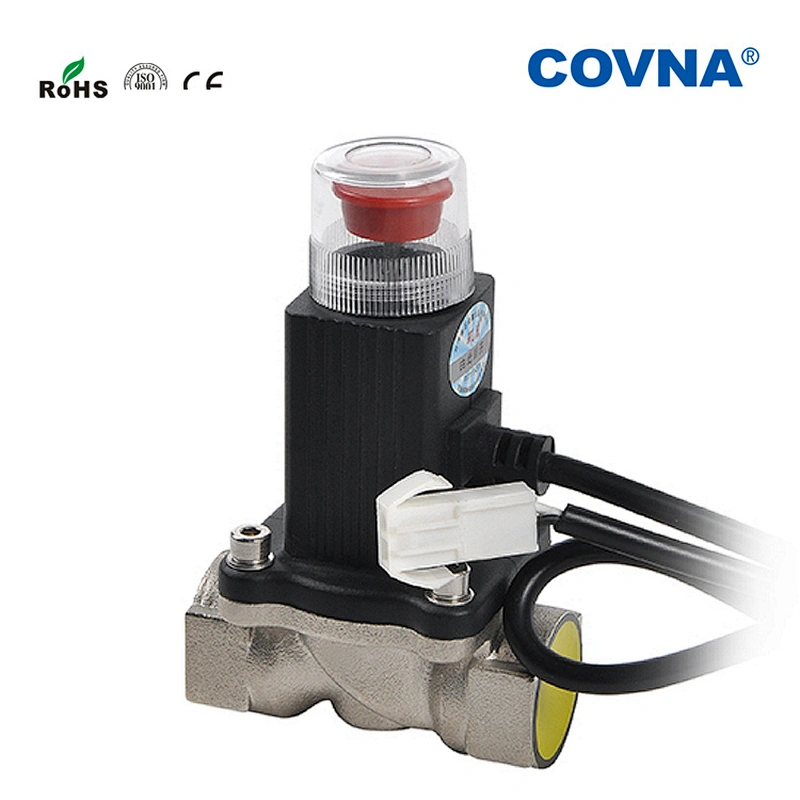

PLG/PNGauto shut off gas solenoid valve :
| Type | Air m3/h | insert pressure mbar | Kv**** m3/h | P 220V 120V (1.) 24V VA/W VA/W | |
| HKPS01A-15 | 3.8 | 200 | 4.3 | 32 | - |
| HKPS01A-20 | 8 | 200 | 9.1 | 31 | - |
| HKPS01A-20 | 8 | 360 | 9.1 | 36 | - |
| HKPS01A-25 | 10 | 200 | 11.4 | 31 | - |
| HKPS01A-25 | 10 | 360 | 11.4 | 36 | - |
| HKPS01A-25 | 3.8 | 1800 | 4.3 | 36 | - |
| HKPS01A-40/32 | 18 | 200 | 20.5 | 36 | - |
| Table specification | |||||||||
| Type | DN | Connetc Raccord | L mm | H1 mm | H2 mm | H3 mm | H4 mm | E mm | (1.) mm |
| HKPS01A-15 | 15 | Rp ½ | 71 | 161 | 112 | 24 | 92 | 56 | - |
| HKPS01A-20 | 20 | Rp ¾ | 91 | 175 | 126 | 33 | 101 | 61 | - |
| HKPS01A-20 | 20 | Rp ¾ | 91 | 175 | 126 | 33 | 101 | 66 | - |
| HKPS01A-25 | 25 | Rp 1 | 91 | 175 | 126 | 33 | 101 | 61 | - |
| HKPS01A-25 | 25 | Rp 1 | 91 | 175 | 126 | 33 | 101 | 66 | - |
| HKPS01A-25 | 25 | Rp 1 | 91 | - | 126 | 33 | 101 | 66 | - |
| HKPS01A-40/32 | 40 | Rp 1½ | 128 | 194 | 145 | 39 | 107 | 66 | - |
| With metering and pilot gas supply tappings Rp¼ on both sides connected to the inlet. | |||||||||
| With flow adjustment. | |||||||||
| Cable gland: Pg 11. terminal:2.5 mm2 | |||||||||
Can be supplied, if requested: with coupler plug acc.to ISO4400,with damping unit, with position indicator. | |||||||||
| Adjustment of gas release with SG.,L | |||||||||
Adjustable from 0-70% of the throughput(with Δp=1 mbar). The start gas flow is not adjusted at the works. | |||||||||
| the damping device is taking full effect. |
| Switching frequency: arbitrary | |||||||||
| Ambient termperature: -20℃ to +60℃ | |||||||||
| Protection: IP 54 acc. To IEC 529 Power factor of solenoid coil:cos φ=1 | |||||||||
| Coil insulation: Insulating material class F | |||||||||
| 220/240V +10/-15%; 50/60 Hz | |||||||||
| The prevailing a.c.voltage is lead to the solenoid coil via a protective circuit rectifier. | |||||||||
| Duty cycle:100% EC | |||||||||
| Fuse: max. 6.3 A anti-surge | |||||||||
| Fitting | |||||||||
| When fitting the vavle to the pipe work, do not use the solenoid as a lever, | |||||||||
| always use a suitable spanner. |
Payment
We usually accept T/T(wire transfer), Western Union.
Trade Currency: USD or RMB.
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight.
1.18 months warranty
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.MOQ
There is no MOQ for COVNA design but for cusomer's, the MOQ according your design to
decide.we will offer the free sample for the massive products
3.Package
Our package method is in perfect condition, or according customized.
4.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
We have CE and RoHS certificate,the ISO9001 certificate is under processing.
Q1: What is the Warranty for the solenoid valves?
A1: For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make replacement.
Q2:What is NO and NC?
A2: NO stands for normally open, that is , valve keeps open without power.If connect it with power, the valve will get closed.NC stands for normally closed,that is valve keeps closed without power.If connect it with power, the valve will get open.
Q3: What is the assembly way of solenoid valves?
A.3 we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.
Q4:Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.
Q5:Can we make customized product?
A5: Yes, we are good at making customized products.More than 30% of our products are customized products. We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.
Q6: Why choose us? Any advantages?
A6: The answer is Yes. There are5 advantages.
(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) CUSTOMIZED SERVICE: We can make the product as your request, Shape and Quality can meet your request.
(3) OEM: (1)Laser Print your Logo (≥10PCS). (2)Design your packing box(≥100PCS).
(4) MIX ORDER: We accept mix order, different model and small quantity order.
(5) AFTER SERVICE: (1)1.5Years Guarantee. (2)If some parts are broken, we will send new parts to repair after confirmed.
Q7: Can I order one piece for sample to test the quality?
A7: Yes, We recommend to check the sample before order. Please order the sample in our retail store.
Q8: May I have your catalogue and price list for trial order in MOQ quantity?
A8: All our products were shown on alibaba, please have a detailed looking and choose the interested models on our website.
Q9: how can you guarantee the price?
A9: we are not only trade company but manufacturing company,i am sure our price is better than other trade companies.
Q10: If I order big quantity, what's the good price?
A10: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible
