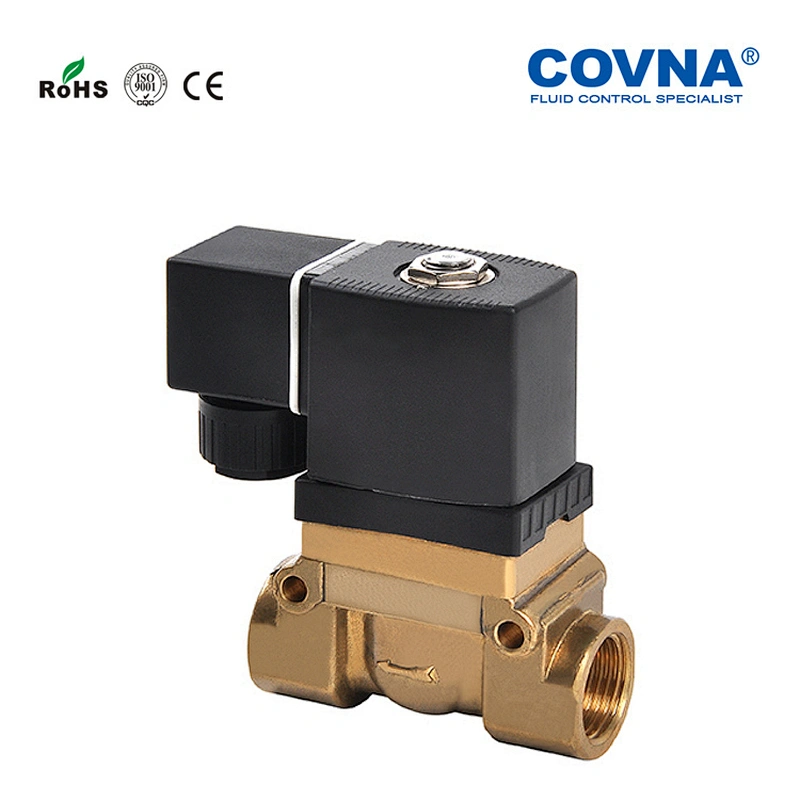

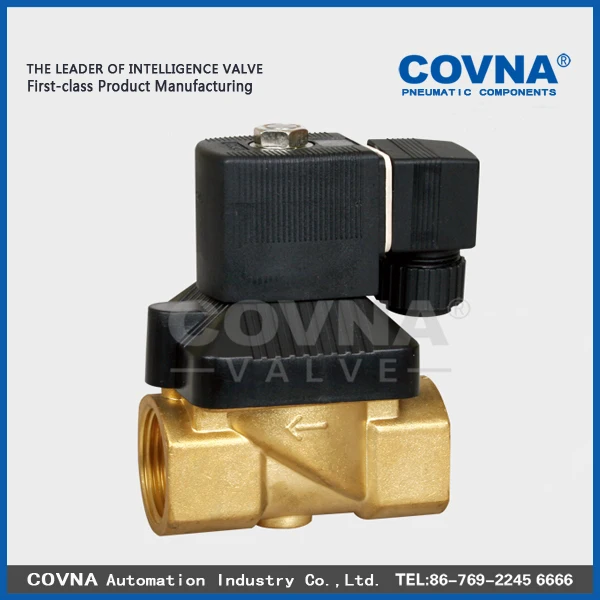

High pressure small size normally closed solenoid valve with pure brass

Model NO.: HK5231015water solenoid valve 24v
Price:: USD 10.00-15.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 100000 piece / Month
Country of Origin: sz
Stock Time: 24v high pressure electric solenoid water valve fo Days

Quantity:

Product Description

Place of Origin:CN;GUA
Material:Brass
Brand Name:COVNA water solenoid valve 24v
Model Number:HK5231015water solenoid valve 24v
Power:Solenoid
Pressure:Medium Pressure
Application:General
Port Size:1/4"NPT Female Port
Structure:Safety
Standard or Nonstandard:Standard
Media:Water
Temperature of Media:Normal Temperature

Long time working gas solenoid valve natural gas solenoid valve lpg solenoid valve specification:

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Vacuum, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow)

Response Time: Less than 20 ms

Body Material: Brass

Seal Material: NBR (Buna N)

Armature Tube Material: Stainless Steel

Plunger & Spring Material: Stainless Steel

Coil Certification: CE Certification

Coil Power: DC - 20W ; AC -50Hz 28VA / 60Hz 25VA

Coil Class: H Class IP 65

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 1/4"- (0 to 150 PSI); 3/8"- (0-100 PSI)

Operating Temperature: -10 to 80 °C

Port Size: 1/4"NPT Female Port

Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

What is ED 100% Coil Duty?

ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.

What is IP65?

Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures - IP Code), specifying the environmental protection the enclosure provides.

The IP rating normally has two (or three) numbers:

1) Protection from solid objects or materials

2) Protection from liquids (water)

3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)

IP First number - Protection against solid objects

0	No special protection
1	Protected against solid objects over 50 mm, e.g. accidental touch by persons hands.
2	Protected against solid objects over 12 mm, e.g. persons fingers.
3	Protected against solid objects over 2.5 mm (tools and wires).
4	Protected against solid objects over 1 mm (tools, wires, and small wires).
5	Protected against dust limited ingress (no harmful deposit).
6	Totally protected against dust.

IP Second number - Protection against liquids

0	No protection.
1	Protection against vertically falling drops of water e.g. condensation.
2	Protection against direct sprays of water up to 15^o from the vertical.
3	Protected against direct sprays of water up to 60^ofrom the vertical.
4	Protection against water sprayed from all directions - limited ingress permitted.
5	Protected against low pressure jets of water from all directions - limited ingress.
6	Protected against temporary flooding of water, e.g. for use on ship decks - limited ingress permitted.
7	Protected against the effect of immersion between 15 cm and 1 m.
8	Protects against long periods of immersion under pressure.
