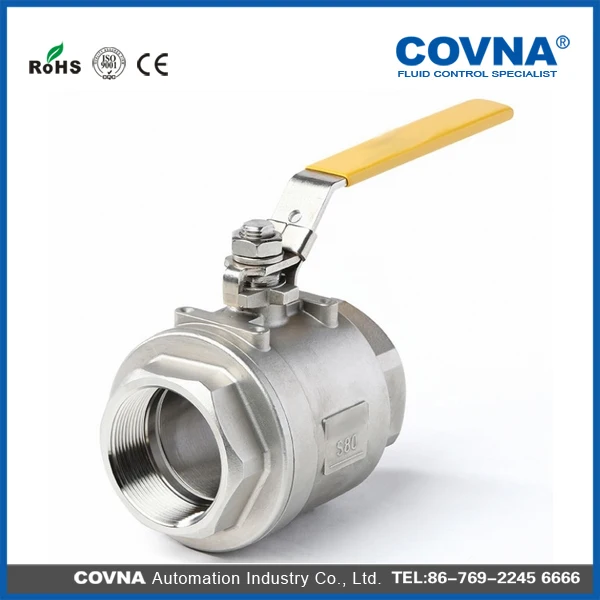

High pressure stainless steel 316 Ball Valve pn16 with prices

Additional Info

• Ports:Full
• Body Style:Two Piece
• Size Range:1/4"- 4"(8mm - 100mm)
• Temperature Range:-50°F to 450°F (-46°C to 232°C)
• Pressure Ratings:1000 psi WOG (69 Bar)
• Steam Rating:150 psi WSP (11 Bar)
• End Connections:Threaded - NPT
• Body Materials:Stainless Steel
• Seat Materials:RPTFE
• Applications:General Service, Air, Water, Oil & Gas

• Pressure/Temperature

•

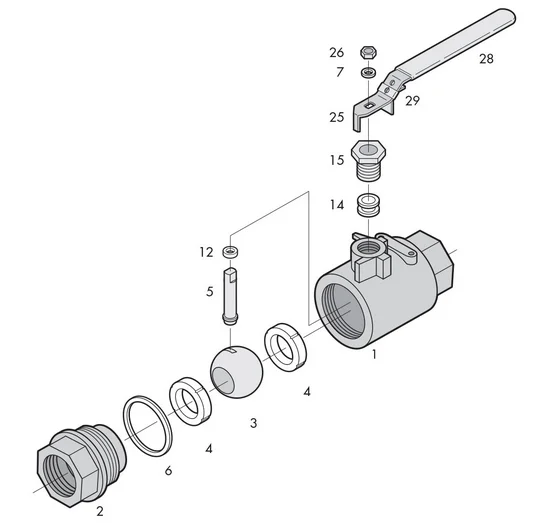

• COMPONENTS AND MATERIALS
  Item	Name	Stainless Steel	Qty.
  1	Body	ASTM A351 Gr CF8M	1
  2	End Cap	ASTM A351 GR CF8M	1
  3	Ball	SS316	1
  4	Seat	RPTFE	2
  5	Stem	ASTM A479 Type 316	1
  6	Body Seal	RPTFE	1
  7	Spring Washer	SS300	1
  12	Thrust Washer	RPTFE	1
  14	Stem Packing	RPTFE	2
  15	Packing Gland	SS304	1
  25	Handle	SS304	1
  26	Handle Nut	SS304	1
  28	Handle Sleeve	Vinyl	1
  29	Locking Device	SS300	1



•

• Dimensions and Weights - Imperial - Series 80
  Note: Dual mounting pads for 2½", 3"and 4".
  Size in	A	ØB Port	C	C1	C2	D	E	F	Cv	Torque Lb-in*	Weight lbs
  1/4	2.1	0.46	2.1	1.6	0.48	3.8	0.5	1.12	10	65	0.5
  3/8	2.1	0.49	2.1	1.6	0.48	3.8	0.5	1.12	12	65	0.5
  1/2	2.5	0.59	2.4	1.8	0.76	3.9	0.5	1.14	38	65	0.8
  3/4	2.6	0.79	2.4	2.0	0.85	4.8	0.5	1.4	66	85	1.2
  1	3.3	0.98	2.9	2.3	1.02	5.7	0.9	1.4	105	125	1.9
  1¼	4	1.25	3.1	2.5	1.20	5.9	0.9	1.5	190	230	2.5
  1½	4.3	1.50	3.3	3.0	1.47	7.2	0.9	1.5	275	300	4.0
  2	4.8	2.00	3.8	3.3	1.71	7.2	0.9	1.5	480	365	6.5
  2½	6.2	2.50	5.0	4.5	2.20	9.8	1.4	2.2	797	650	11.3
  3	7.2	3.00	5.3	5.1	2.97	9.8	1.4	2.2	1210	765	16.9
  4	8.8	4.00	6.1	5.8	3.40	14.4	1.4	2.2	2055	3000	33.2



  Dimensions and Weights - Metric - Series 80
  Note: Dual mounting pads for 65mm, 80mm and 100mm.
  Size mm	A	ØB Port	C	C1	C2	D	E	F	Cv	Torque Nm	Weight kg
  8	54	12	54	40	12.2	97	12.7	28.5	10	7.3	0.23
  10	54	12.5	54	40	12.2	97	12.7	28.5	12	7.3	0.23
  15	62.5	15	61	46	19.3	100	12.7	29	38	7.3	0.36
  20	73	20	61	50	21.6	122	12.7	35	66	9.5	0.54
  25	84.5	25	75	58	25.9	145	22.9	35	105	14.1	0.86
  32	102	32	79	64	30.5	150	22.9	38	190	26	1.1
  40	110	38	84.5	75	37.4	182	22.9	38	275	33.9	1.8
  50	122.5	50	96	85	43.4	182	22.9	38	480	41.2	2.95
  65	158	65	126	115	55.9	250	35.6	55	797	73.4	5.13
  80	183	80	135.5	130	75.4	250	35.6	55	1210	86.4	7.7
  100	225	100	156	148	86.4	365	35.6	55	2055	339	15.1
