- Place of Origin:CN;GUA
- Material:Stainless Steel
- Brand Name:COVNA
- Model Number:HK07 SS
- Power:Solenoid
- Pressure:Medium Pressure
- Application:General
- Port Size:3/8"-2"
- Structure:Pilot
- Standard or Nonstandard:Standard
- Temperature of Media:High Temperature
- Media:steam ,hot water ,oil etc.

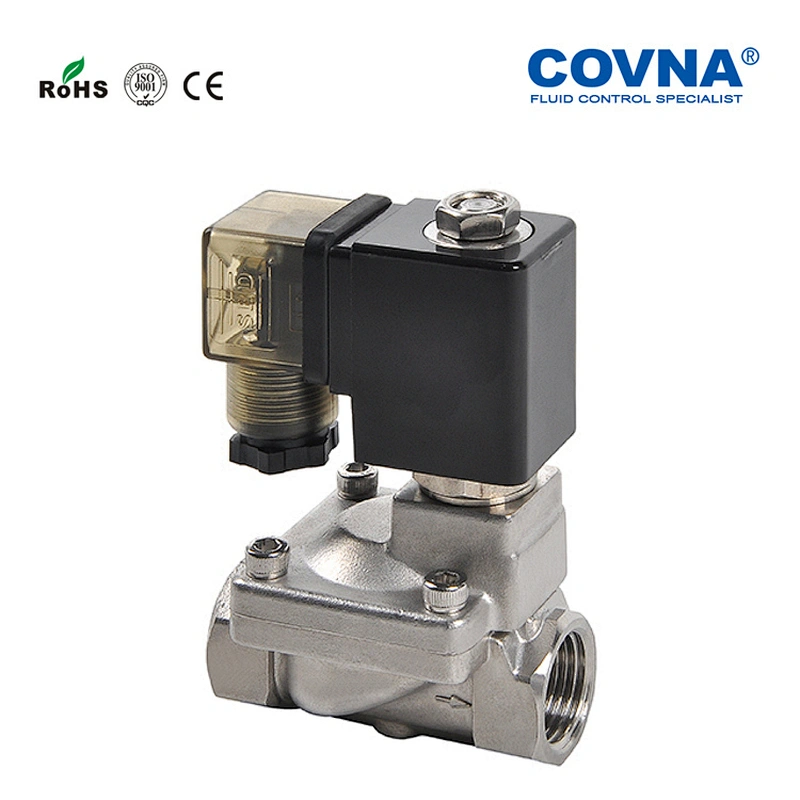

Pilot Operated Direct Acting Normally Close Solenoid Valve
Steam solenoid valve, high temperature solenoid valve
Product Information:
Characteristic: | 1. Pilot operated piston construction with low power consumption 2. Seal serves longtime at steam ambient; 3. Used for long-time working in pipeline system.
|
Medium: | Steam, Hot Water, Oil, etc.
|
Temperature: | PTFE Seal: -60°C to 200°C VITON Seal: -30°C to 150°C
|
Pressure: | DHP31: 0. 05MPa ~ 1. 6MPa NC
|
Port Size: | 3/8", 1/ 2", 3/4", ", 1, 1 1/4", 1 1/2", 2"
|
Port Thread: | G, BSP, NPT |
Orifice (mm): | 12, 15, 20, 25, 32, 40, 50
|
Voltage: | DC - 12V, 24V AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ |
Tolerance: | +/- 10% |
Coils: | S21H, 24VA (AC), 18W (DC), Ip65, 100%ED
|
Material: | Body - Stainless steel, Seal -PTFE or VITON Armature Tube - Stainless Steel 304 Plunger - Stainless Steel 430F Stop -SS430F Springs - SS 304 Shading Rings – Stainless Steel 304 |
Warranty: Great Quality Products
We stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in BRAND NEW condition in OEM or Original Packaging. Orders are packaged with care to make sure your items arrive in perfect condition.
Shipping Terms:
1.We ship most of orders within 1-3 business day after receiving your payment(for sample).
2.We will post tracking number by e-mail after processing your order.
3. We provide combine shipping if you have multiple orders. In order to get combine shipping price, please send us a combine shipping request.
This company produces the [solenoid valve] and [pneumatic valve] has been widely used in machine automation design, such as water level control, temperature control, air conditioner, automatic filling equipment, fire control, professional irrigation, the SPA massage (SPA), steam dipping, solar water heating engineering, water treatment and environmental protection equipment, chemical industry machine food machine, etc.
If the industry in all kinds of control valve design and development of need, our company is (ISO-9001) international product guarantee recognize factory, and through the [(industrial safety norms, (] [CSA], [UL429] the authentication, have research and development department for the industry to design services and solutions to problems.
The company's families will the introduction of new products, please note dealers, welcome to join us!
[ COVNA"]-global trust!
