- Place of Origin:CN;GUA
- Application:General
- Brand Name:COVNA 24v solenoid valve
- Pressure:Medium Pressure
- Temperature of Media:Normal Temperature
- Power:Solenoid
- Media:Water
- Standard or Nonstandard:Standard
- Port Size:3/8"~ 2"
- Structure:Diaphragm
- Model Number:2W 24v solenoid valve
- Material:Stainless Steel,Brass, Alloy,Plastic

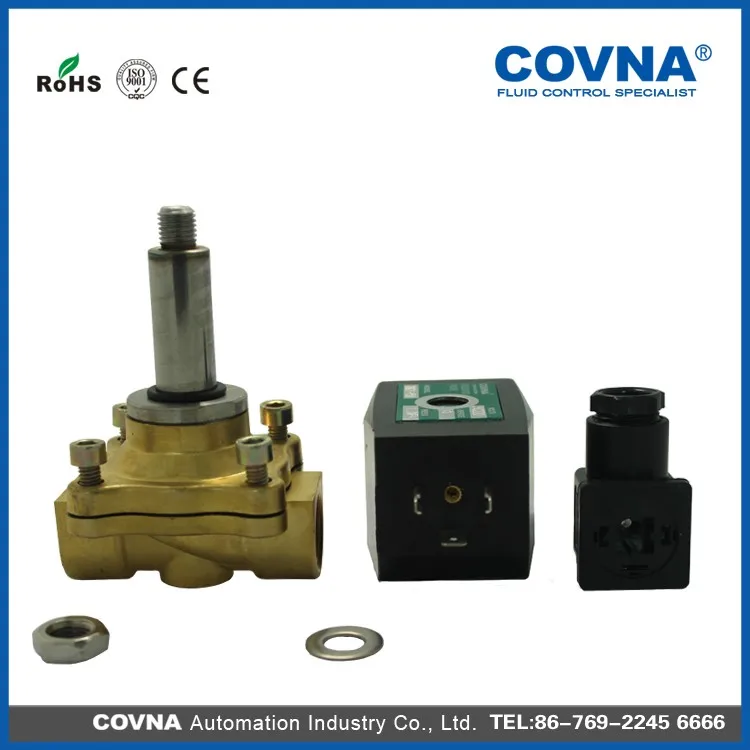

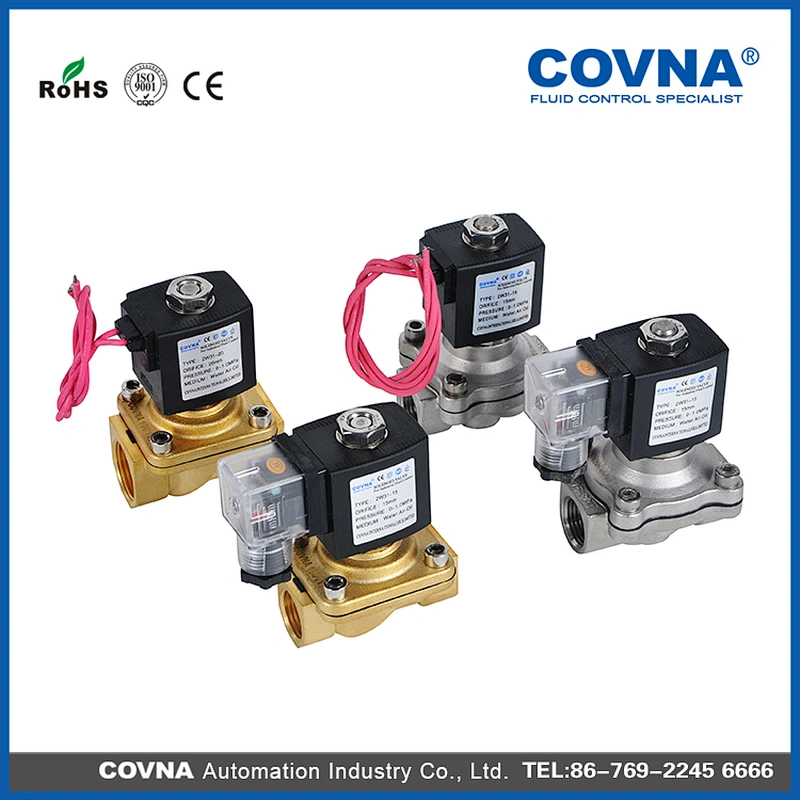

2 inch water 24v solenoid valve

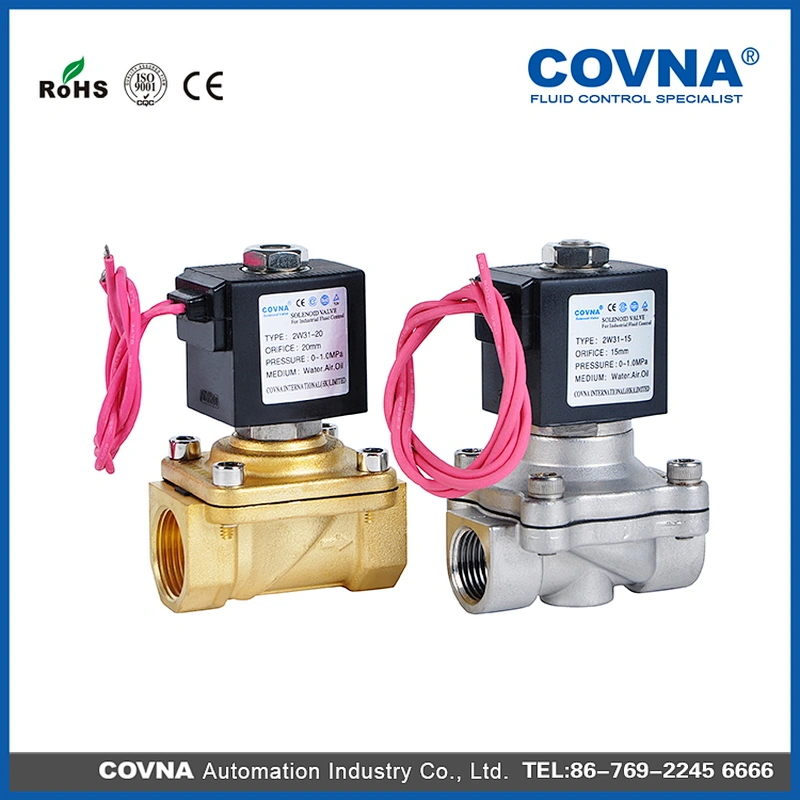

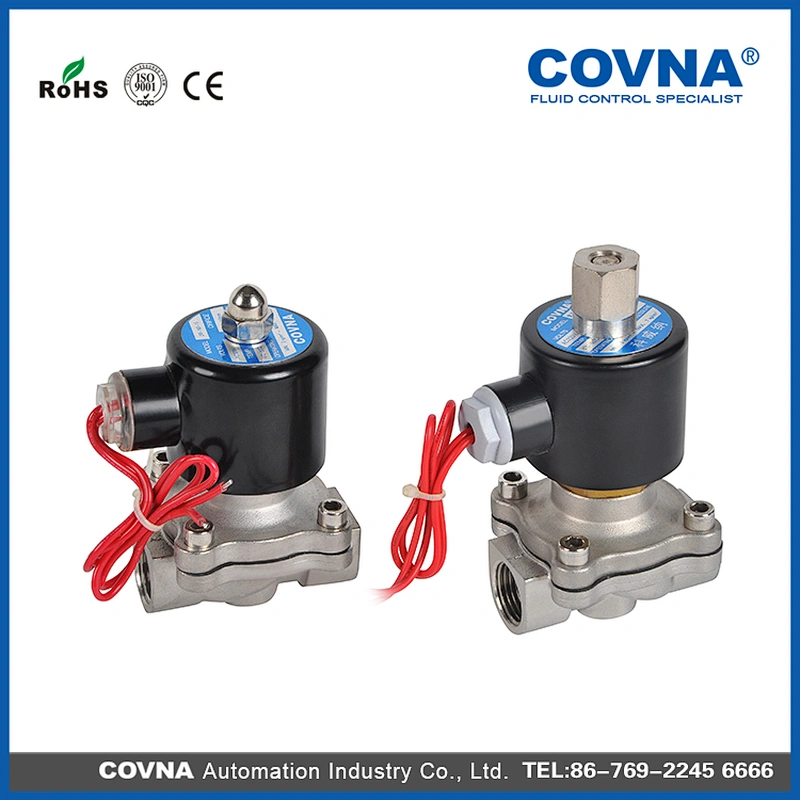

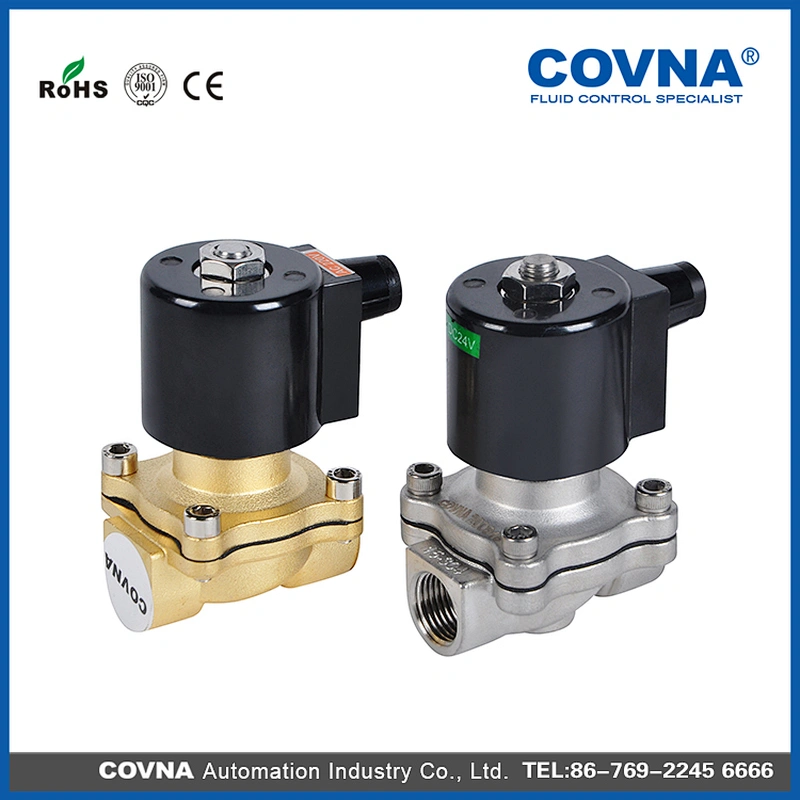

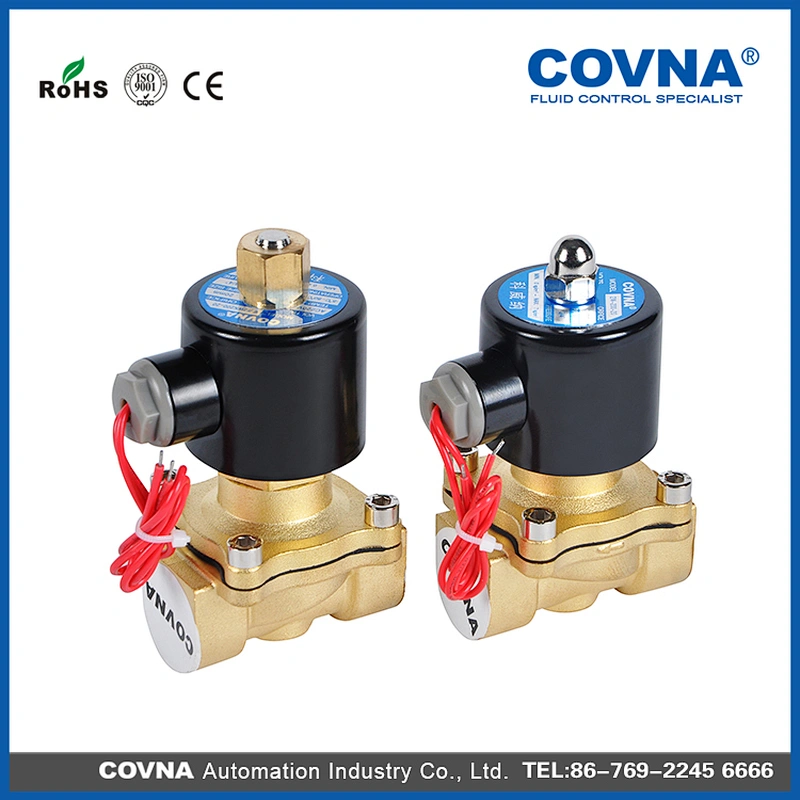

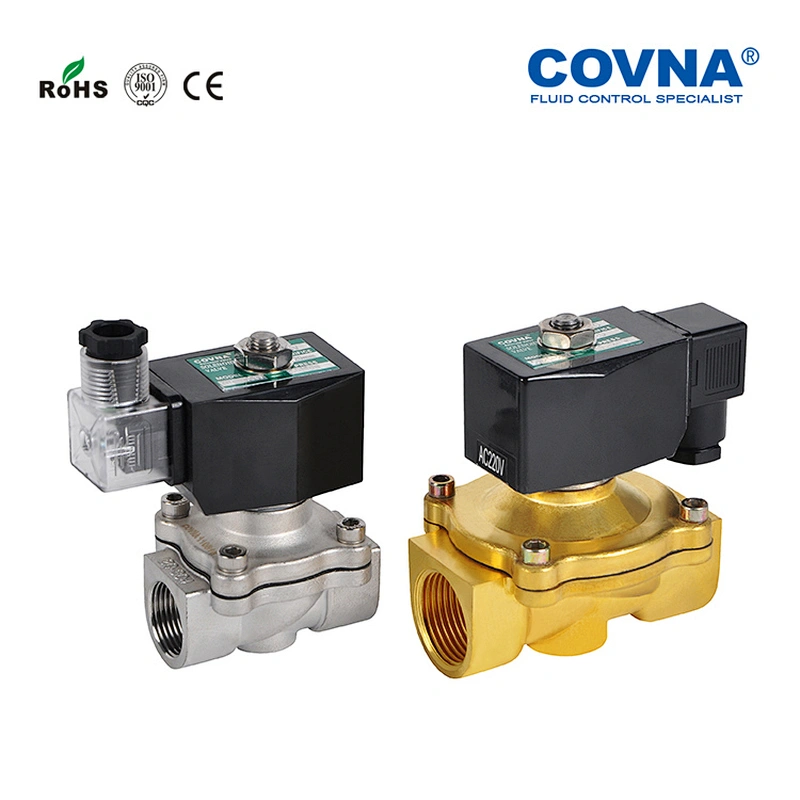

2W21 Brass/SS304 normally closed IP65 air oil water solenoid valve direct-acting Operated Normal Pressure – 3/8″2″
Valves available in normally closed and normally open constructions.
Available in either AC or DC operated with brass or Stainless Steel bodies.
Media: Water, Air, Oil (below 20cst)
Pressure: Normally Closed 10bar; Normally Open 8bar
Function type: Normally Closed (N/C), Normally Open(N/O)
Body material: Brass/ SS304/ SS316
Sealing material: NBR/VITON
Protection class: IP65
| MOTION TYPE | DIRECT ACTING | ||||||
| G CONNECTION | 3/8" | 1/2" | 3/4" | 1" | 1-1/4"FLANGE | 1-1/2"FLANGE | 2"FLANGE |
| NOMINAL DIAMETER MM | 15 | 15 | 20 | 25 | 32 | 40 | 50 |
| CV VALUE | 2.2 | 3.73 | 7 | 11.1 | 14 | 24.5 | 35 |
| PRESSURE BAR | NORMALLY CLOSED 0.0-12 ( 0.0-10); NORMALLY OPEN: 0.0-8 | ||||||
| MEDIUM TEMP | NBR -5-80 SPECIAL VITON (-10-130) | ||||||
| POWER | 220V-230V AC /50-60HZ; 110V-120V AC/50-60HZ; DC 24V; DC 12V; RANGE; ±10% | ||||||
| Characteristic | 1.Direct acting diaphragm structure with no power comsumption for long time working 2.Life span can be over 1 million times |
| Medium | Air, water,oil,alchol |
| Temperature | NBR: -10°C to 80 °C EPDM: -10°C to 120 °C VITON:-10°C to 150 °C |
| Pressure | 0.0-1.0Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |

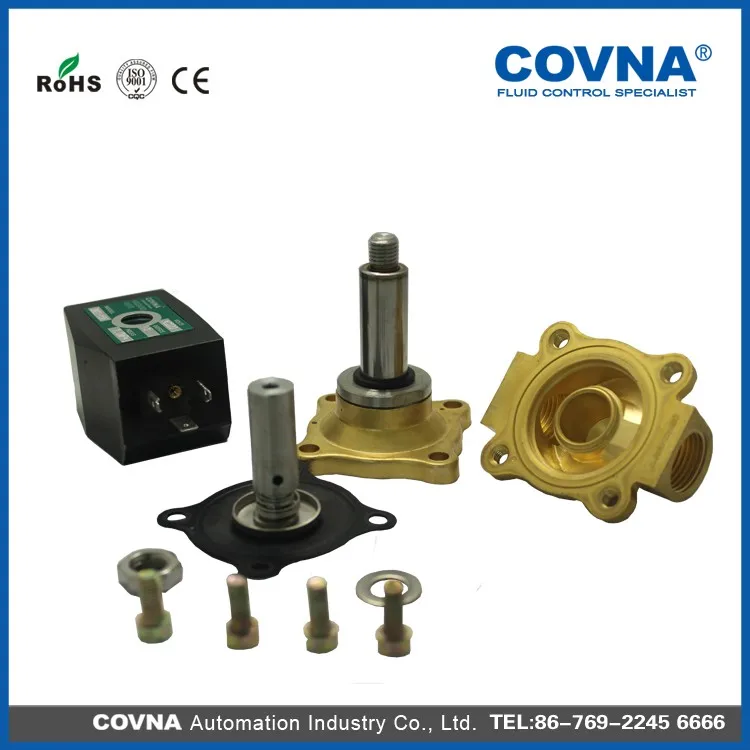

| Material | Body- Brass/SS304 Seal- NBR,EPDM,VITON Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304 |
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q: What's your business scope?
A: Our business scope is air cylinder,air source treatment ,air solenoid valve ,motorize valve ,
pneumatic valve ,quick fitting,etc.
Q: What's your delivery date?
A: It depends on the number of orders. Delivery date is 7-30 days. If you need emergency products,
we can speed up the production of the first arrangement.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information,
then we can give you an estimated price is for reference only. We can do any size and any color.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing. Valve/ solenoid valve /electric
valve /pneumatic valve and air cylinder products and so on.
Q: How many years do you warrant?
A: 18 months warranty.
Q:How many years have you done valves,cylinders?
A: More than 13 years.
