- Place of Origin:CN;GUA
- Brand Name:COVNA
- Model Number:HK059 pressure reducing valve
- Power:Manual
- Pressure:Medium Pressure
- Application:General
- Port Size:1/2"---2"
- Structure:Pressure Reducing
- Standard or Nonstandard:Standard
- Media:Water
- Temperature of Media:Medium Temperature
- Material:WCB

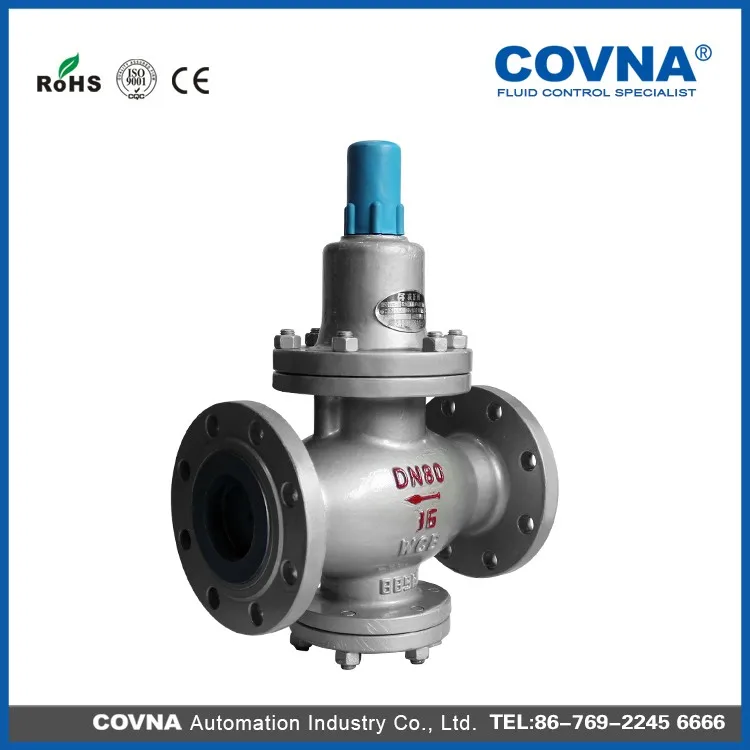

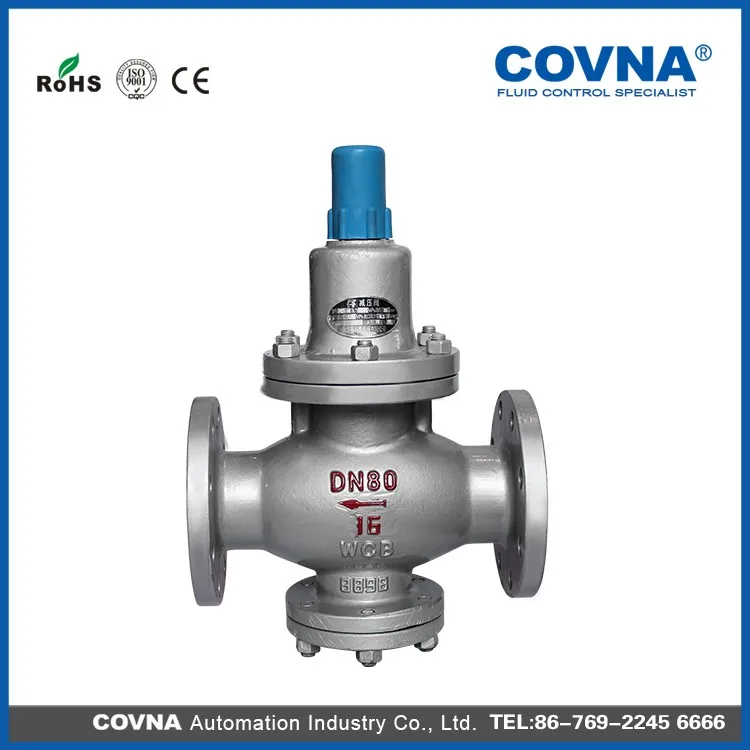

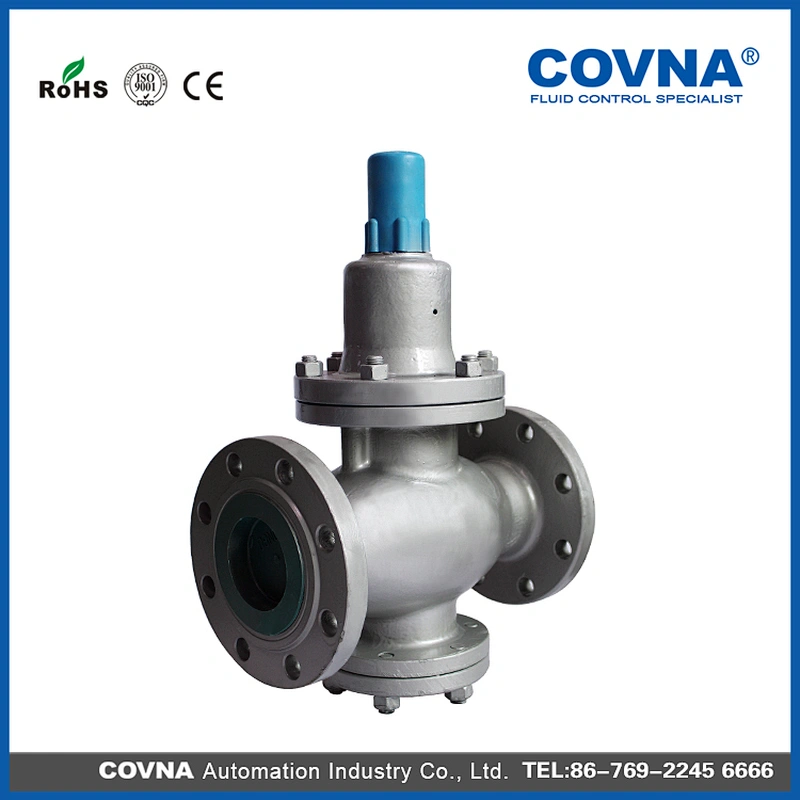

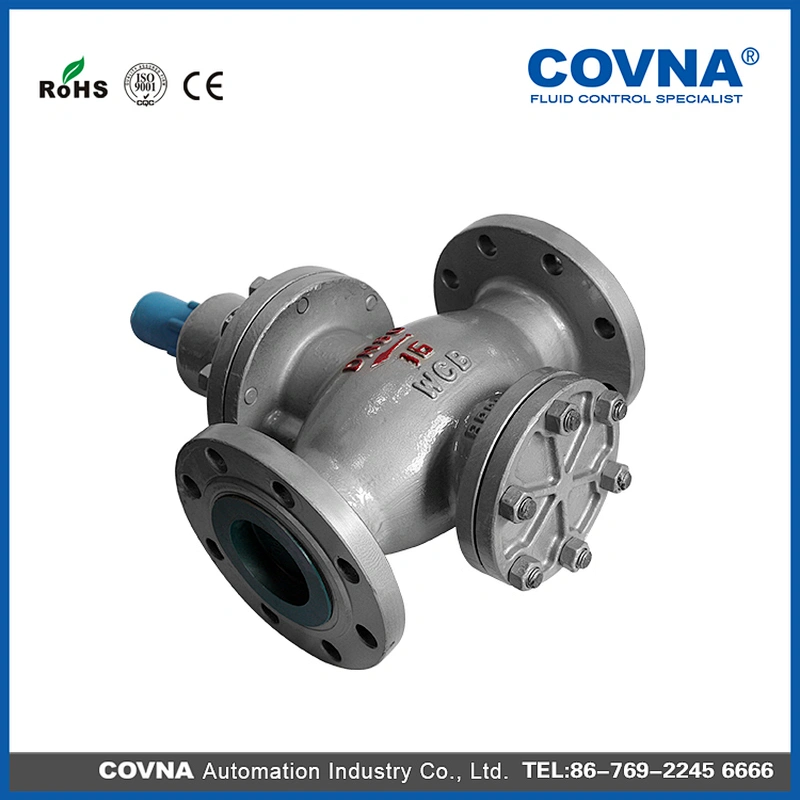

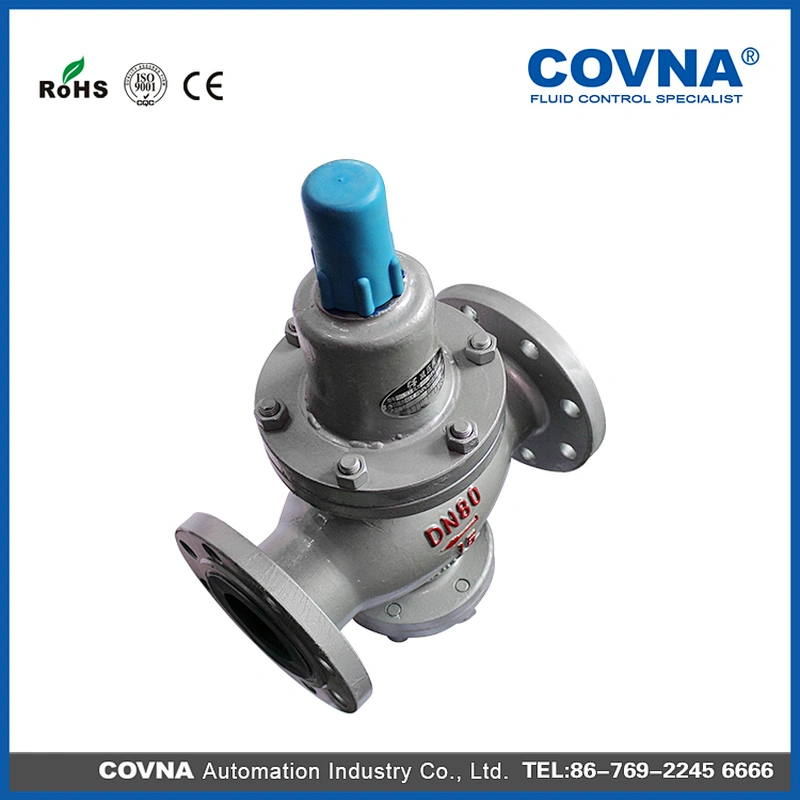

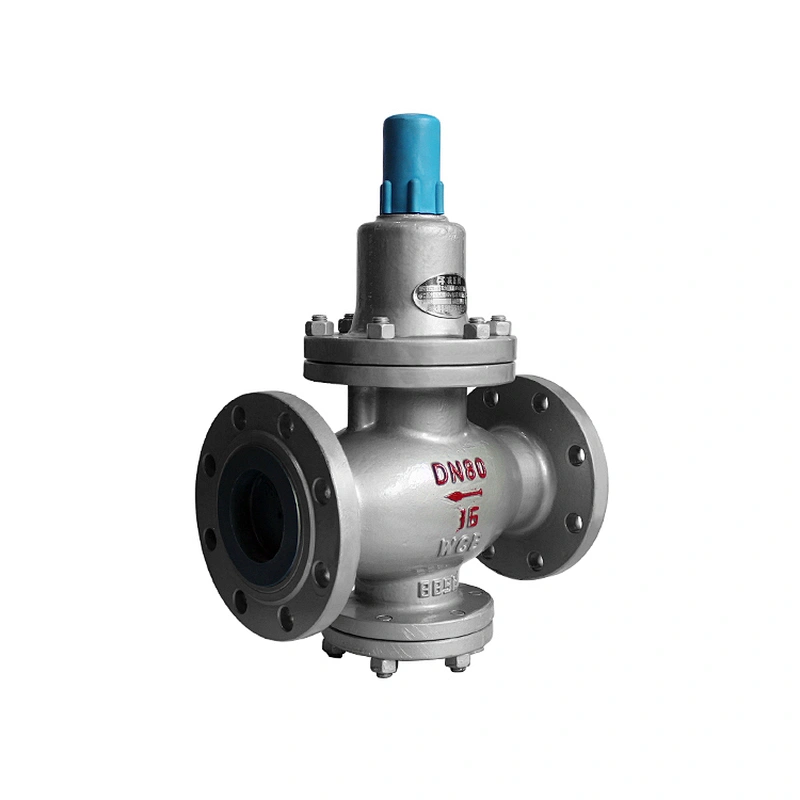

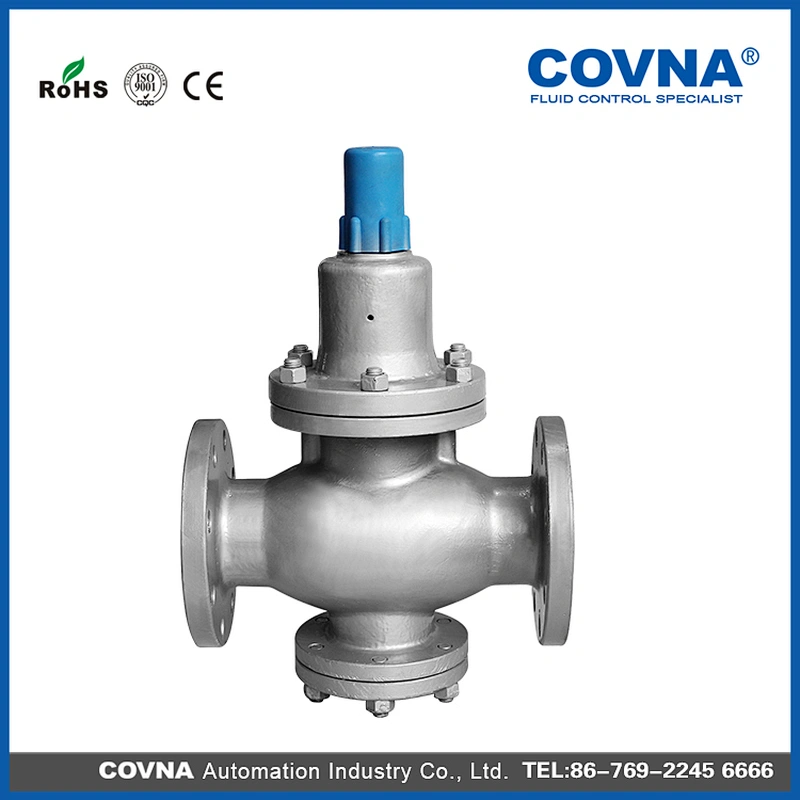

High pressure water control WCB flange Pressure Reducing Valve
Structural Feature and Function
Y42X type direct effect spring diaphragm reducing valve consists mainly of regulating spring, diaphragm, piston, seat and disc parts etc. Using the diaphragm direct sensing downstream pressure drive disc, control valve disc opening to realize pressure-reducing-and-maintaining function. This product in the urban construction, heat supply system of high-rise buildings, can replace conventional division conduit, saving equipments. It also can usually be in the hot and cold water pipe net, realize pressure reducing-and-stabilizing. This product pressure regulator, smooth movement, suitable for water and the noncorrosive liquid medium pipeline.
Material of Main Parts
Y42X Name of Parts | MATERIAL OF PARTS |
body,bonnet,bottom CAP | WCB |
seat | 410 S.S. |
disc | 410 S.S. |
valve rod | 410 S.S. |
piston | 410 S.S. |
cylinder sleeve | 410 S.S./ ASTM A29M 1025 (hard chrome plating) |
sealing ring | NBR |
O-shaped ring | NBR |
adjust spring | UNS G92600 |
diaphragm | KNITTING NBR |
Main Technical Parameter and Performance Norm
Y42X nominal pressure (MPa) | 1.0 | 1.6 | 2.5 |
casing test pressure(MPa) | 1.5 | 2.4 | 3.75 |
sealing test pressure (MPa) | 1.0 | 1.6 | 2.5 |
Max. inlet pressure (MPa) | 1.0 | 1.6 | 2.5 |
outlet pressure range(MPa) | 0.2-0.8 | 0.2-1.0 | 0.4-1.6 |
flow performance deviation(MPa)P2G | GB12244-1989 | ||
pressure performance deviation (MPa)P2P | GB12244-1989 | ||
working temperature | 0°C-80°C | ||
leakage quantity | 0 | ||
Casing test does not include diaphragm,bonnet | |||
