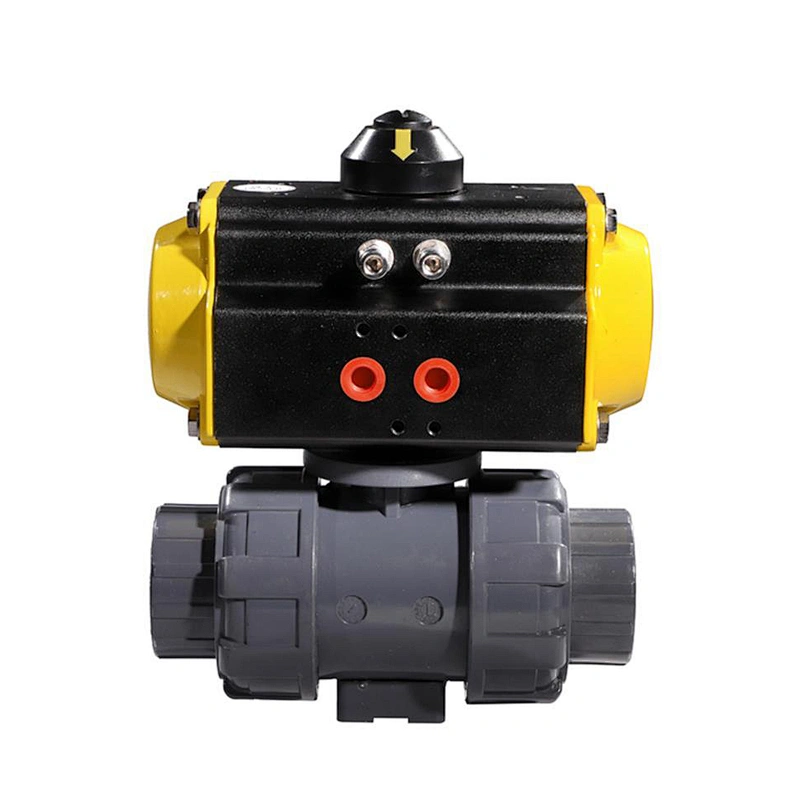

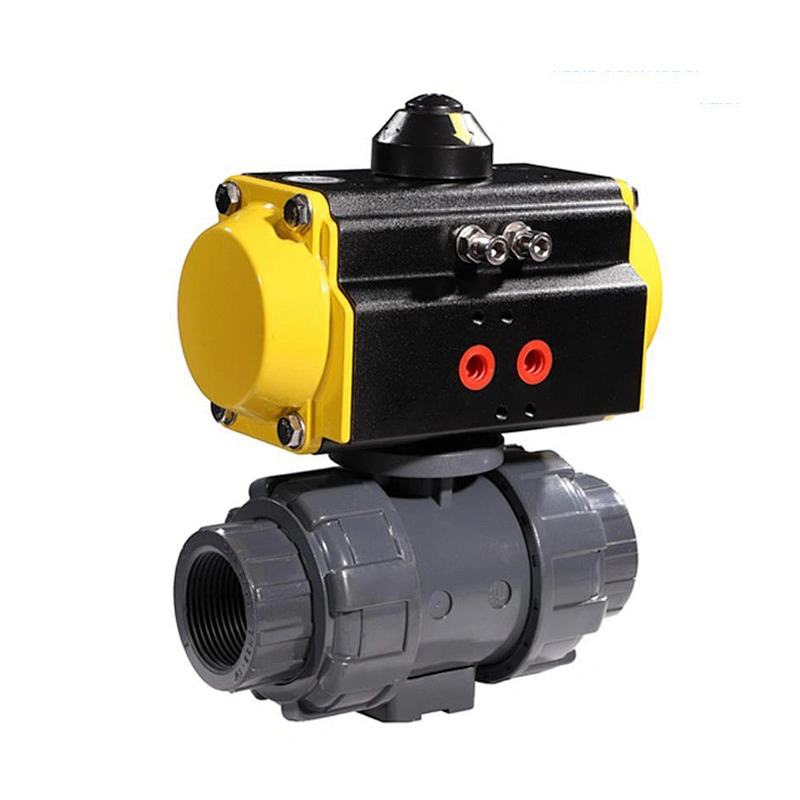

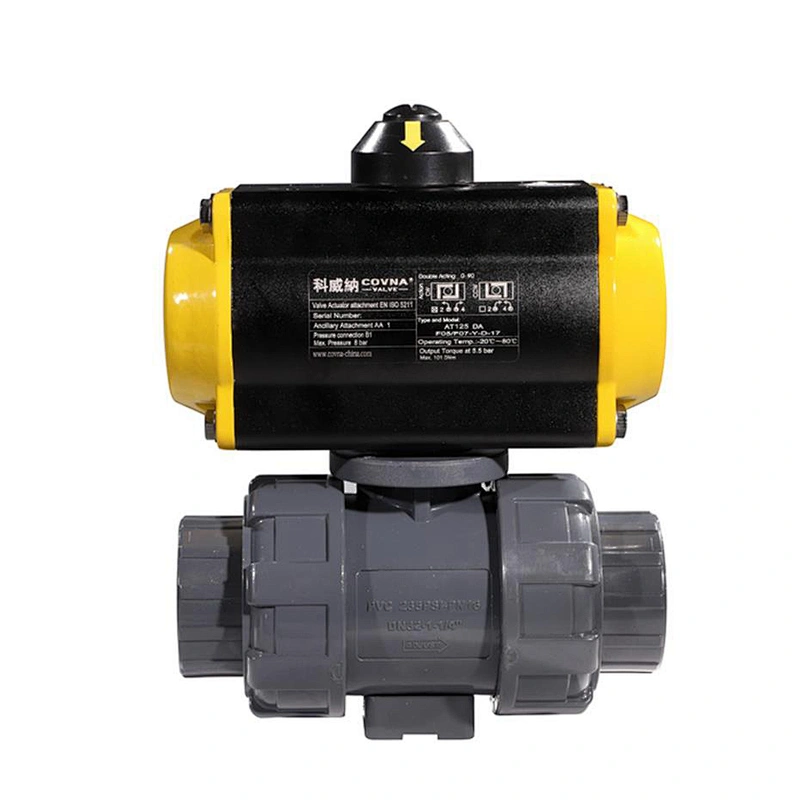

Pneumatically Actuated 1/2 PVC Ball Valve

Pneumatically Actuated 1/2 PVC Ball Valve

Model NO.: Pneumatic Valve
Price:: USD 50.00-57.00
Delivery: FOB
Minimum order quantity: 2

Quantity:

Product Description

Standard or Nonstandard:Standard
Structure:Ball
Pressure:Low Pressure
Power:Pneumatic
Material:Plastic
Temperature of Media:Normal Temperature
Media:Water
Place of Origin:CN;GUA
Application:General
Port Size:1/2"
Model Number:Pneumatic Valve
Brand Name:COVNA

Specifications

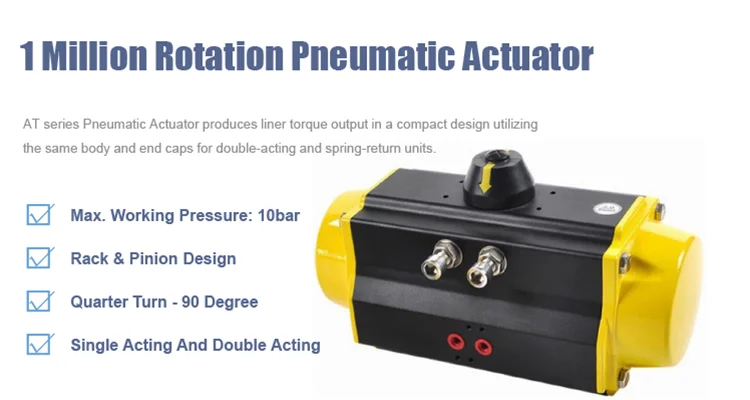

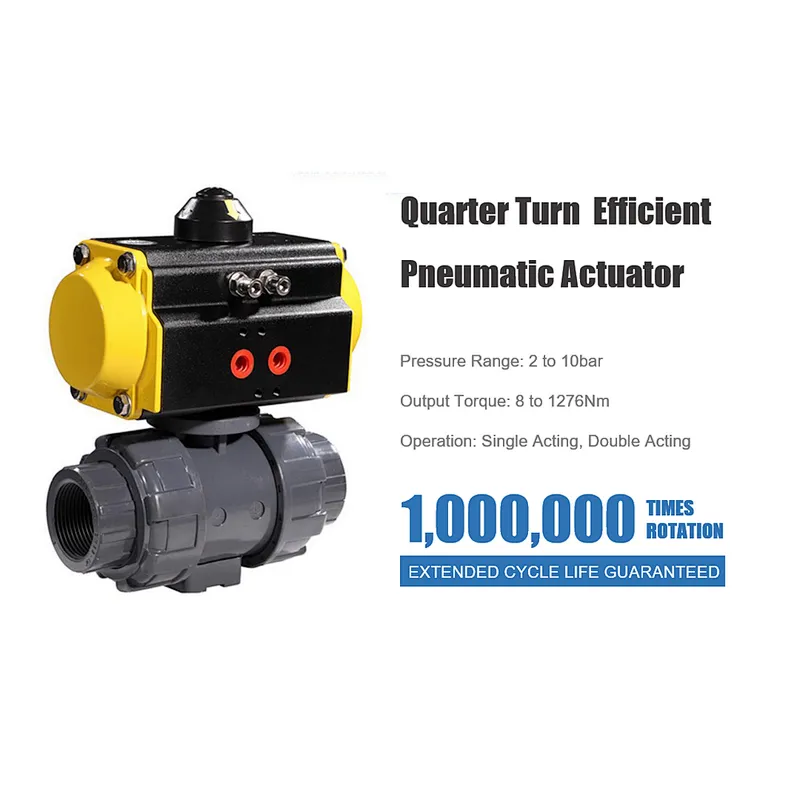

Principles of Single Acting & Double Acting Actuators

Principles of Single Acting & Double Acting Actuators

Principle of Single Acting Actuator (Spring Return)

CCW

Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Principle of Double Acting Actuator

CCW

Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.

Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.

*NOTE: Make sure that the torque necessary to operate the valve is compatible with the actuator torque (it depens on both actuator type and air supply). Please note that the requested torque depends not only on the valve,but on the working conditions and the safety margins of the plant in question, too.

*NOTE:

Make sure that the torque necessary to operate the valve is compatible with the actuator torque (it depens on both actuator type and air supply).

Please note that the requested torque depends not only on the valve,but on the working conditions and the safety margins of the plant in question, too.

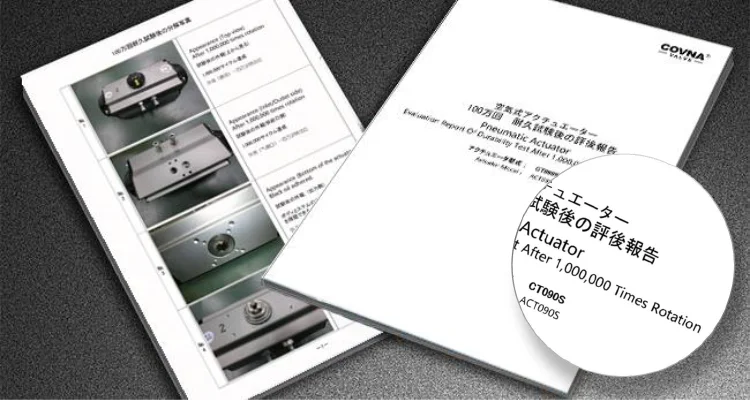

Certifications

COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.

About COVNA

COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.

COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.

Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service

Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors

This is COVNA - solve your technical questions with solid experience.
