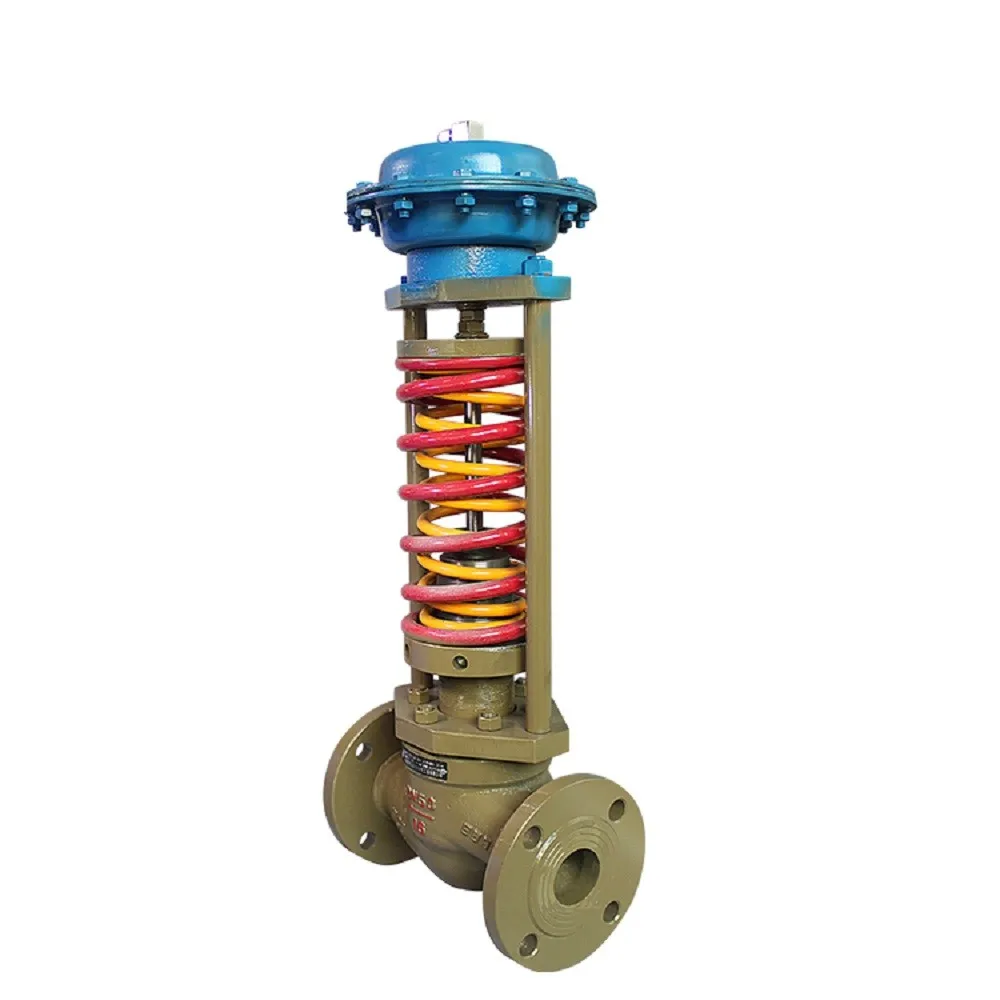

Pressure Regulator Type WCB Flanged Self Regulating Pressure Flow Control Valve
Actuator Type
Multi-Spring diaphragm type
Air Supply Pressure
0.14, 0.16, 0.28, 0.4MPa
Rating
Class 150, 300, 600, PN10, 16, 25, 40, 64, JIS 10K, 16K, 20K, 40K
Body Material
WCB, WC6, WC9, CF8, CF8M, Alloy Steel,etc.
Connection
Flanged, Welded
Temperature
-17℃~+230℃
Valve Action
Air to Close, Air to Open
Sealing Material
PTFE: -30°C~180°C
Number of Ways
2 Way
Ambient Temperature
-20℃~+70℃
Applicable Media
Control of Water, Air, Gas, Oil, Liquid
Optional Actuation
Handlever, Electric Actuated, or Pneumatic Actuated
Optional Accessories
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

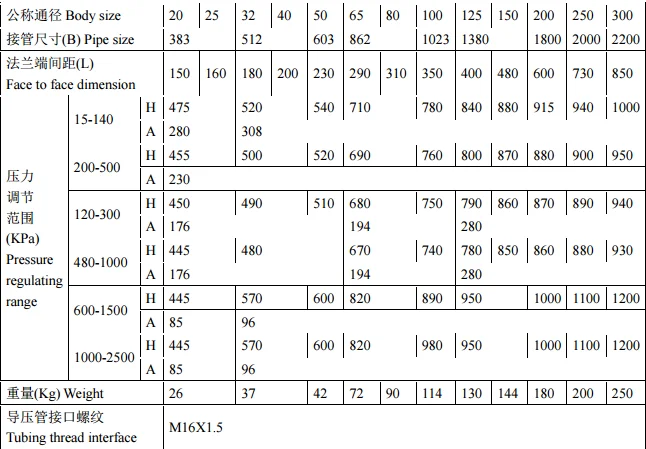

Dimension:
Application
Production Flow
About COVNA
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA Top Sales Team
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.
Packing
Packing: Pressure Regulator Type WCB Flanged Self Regulating Pressure Flow Control Valve packed with foam in carton.
Delivery Time: 7 working days after payment confirmed.
