COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
- Place of Origin:CN
- Application:General
- Temperature of Media:Medium Temperature
- Power:Manual
- Media:Water
- Structure:Ball
- Brand Name:COVNA
- Model Number:Handle Ball Valve
- Port Size:1/2"~2"
Specifications

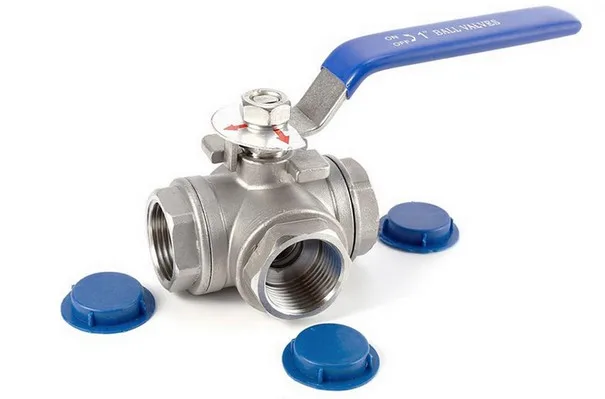

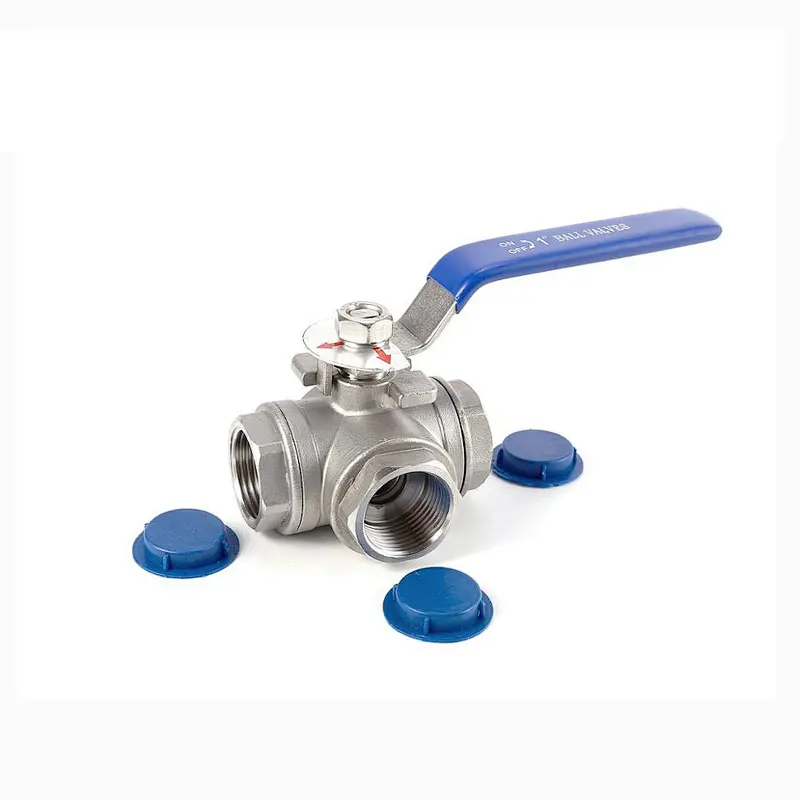

Item | 1000 WOG PSI Stainless Steel 3Way Ball Valve DN40 DN50 |
Size Range | 1/2"~ 2", DN15~DN50 |
Medium | Water, Air, Steam, Gas, Oil, etc |
Temperature | NBR: -5℃~80℃; EPDM: -5℃~120℃; FKM: -5℃~120℃; PTFE: -30°~180° |
Pressure | 1.6~6.4MPa |
Port Thread | NPT, BSPP, BSP |
Material | Brass or Stainless Steel |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |

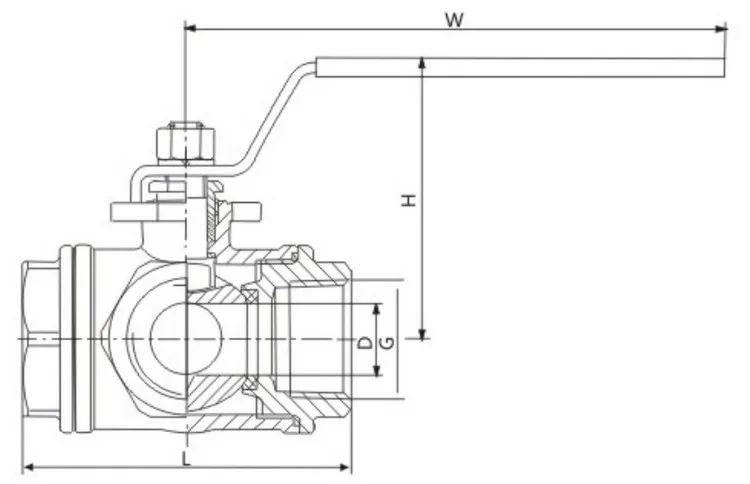

Technical Parameters | ||||||
Application
Production Flow
About COVNA
COVNA Top Sales Team
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.
Packing
Packing: 1000 WOG PSI Stainless Steel 3Way Ball Valve DN40 DN50 packed with foam in carton.
Delivery Time: 7 working days after payment confirmed.
