- Place of Origin:CN;GUA
- Brand Name:COVNA Pilot diaphragm solenoid valve
- Model Number:2W21 Pilot diaphragm solenoid valve
- Power:Solenoid
- Port Size:3/8"~2"
- Standard or Nonstandard:Standard
- Temperature of Media:Medium Temperature
- Material:brass, stainless steel
- Pressure:0.0~1.0Mpa
- Structure:Diaphragm pilot operated
- Media:steam, water, oil
Product Description

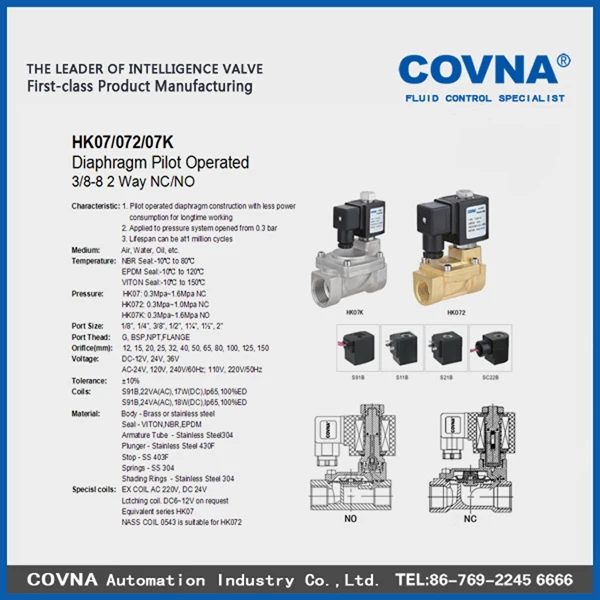

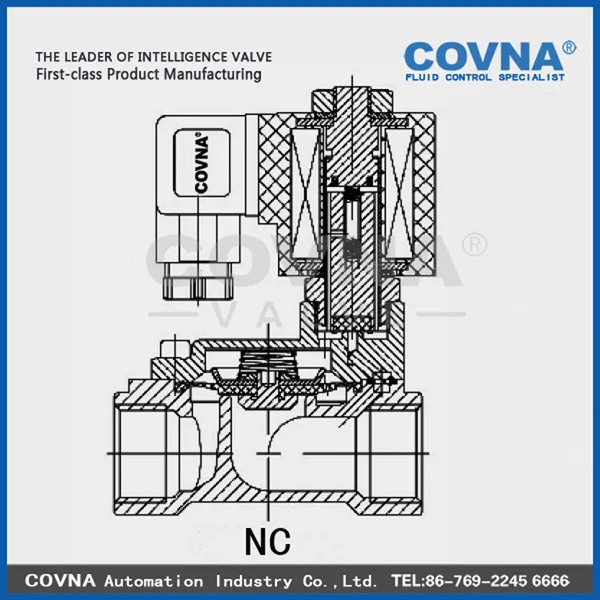

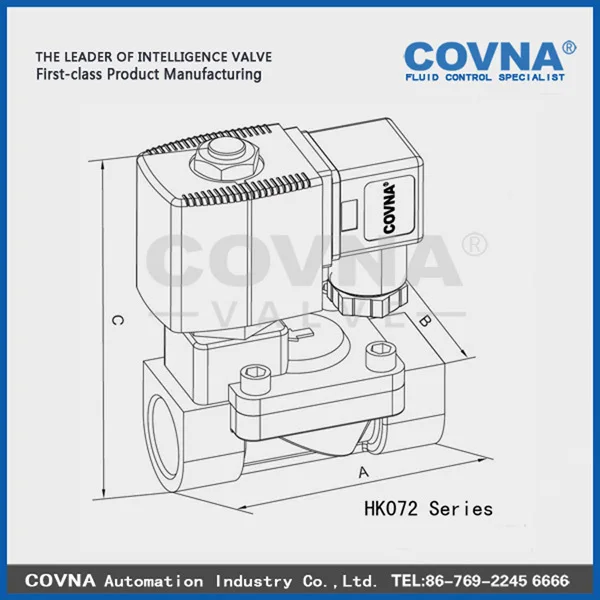

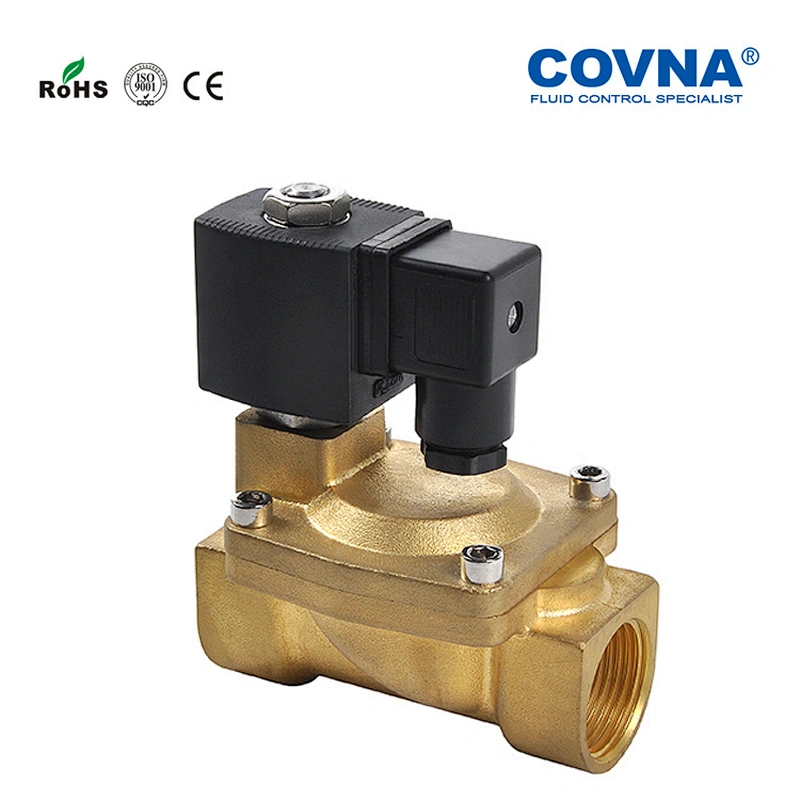

2 way diaphragm pilot operated solenoid valve,water,air,oil, hot water 2 inch brass & stainless steel solenoid valve220V:
| Charateristic | Direct lifting diaphragm construction | |||||
| Open from 0 bar for low pressrue systerm use | ||||||
| High frequency of flying lead coil | ||||||
| Medium: | Air, water, steam, oil | |||||
| Temperature | NBR seal:-10 to 80 degree | |||||
| EPDM seal:-10 to 120 degree | ||||||
| VITON seal:-10 to 150 degree | ||||||
| Pressure | 2W: 0.0Mpa to 1.0Mpa | |||||
| 2W21: 0.0Mpa to 1.0Mpa | ||||||
| 2W31: 0.0Mpa to 1.0Mpa | ||||||
| Port size | 1/8", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" | |||||
| Port thread | G, BSP, NPT, Flange | |||||
| Orifice(mm) | 12,15,20,25,32,40,50 | |||||
| Voltage | DC-12V, 24V | |||||
| AC-12V,120V,240V/60Hz, 110V, 220V/50Hz | ||||||
| Tolerace | +/-10% | |||||
| Coils | S51B, 30VA(AC), 24W(DC), IP65, 100%ED | |||||
| S91B, 22VA(AC), 17W(DC), IP65, 100%ED | ||||||
| SD01B, 28VA(AC), 36W(DC), IP65, 100%ED | ||||||
| Y32B, 40VA(AC), 18W(DC), IP65, 100%ED | ||||||
| Y42B, 50VA(AC), 20W(DC), IP65, 100%ED | ||||||
| Material | Body: Brass or stainless steel | |||||
| Seal:VITON,NBR,EPDM | ||||||
| Armature tube:Stainless steel 304 | ||||||
| Plunger:Stainless Steel 430F | ||||||
| Sopt:SS403F | ||||||
| Springs:SS304 | ||||||
| Shading Rings:Stainless steel 304 | ||||||
