- Place of Origin:CN;GUA
- Material:Alloy
- Brand Name:COVNA
- Model Number:HK3V310
- Power:Solenoid
- Application:General
- Port Size:1/2"
- Structure:Plug
- Standard or Nonstandard:Standard
- Temperature of Media:Normal Temperature
- Pressure:0.15~0.8Mpa
- Media:Air
3V320 air release solenoid valve
| 3v series air solenoid valve | ||||
| Model | 3V210-06 | 3V220-06 | 3V210-08 | 3V320-08 |
| Fluid | Air(to be filtered by 40um filter element | |||
| Acting | Internal Piloted | |||
| Port size | In=out=1/8” | In=out=1/4” | ||
| Orifice size | 125.0mm2 (Cv=0.78) | 30.0mm2 (Cv=0.89) | ||
| Valve type | 3port 2 position | |||
| Lubrication | Not required | |||
| Operating pressure | 0.15-0.8Mpa (21~114 Psi) | |||
| Proof pressure | 1.5 Mpa (215 Psi) | |||
| Temperature | -20~70 | |||
| Material of body | Aluminum alloy | |||
| Max.frequency | 5 cycle/sec | |||
| Standard voltage | AC220V,AC110V,DC24V,DC12V | |||
| Scope of voltage | AC:±15% ,DC:±10% | |||
| Power consumption | AC:3.5VA DC:3.0W | |||
| Protection | IP65( DIN40050) | |||
| Temperature calssifiction | B Class | |||
| Electrical entry | Terminal,Grommet | |||
| Activating time | 0.05 sec and below | |||

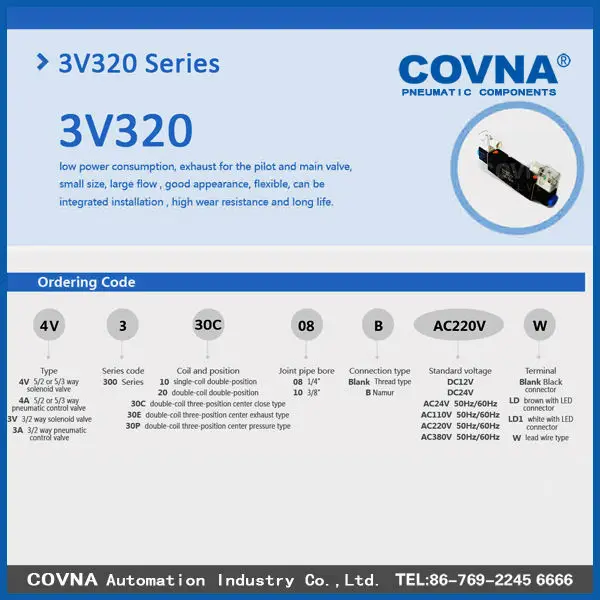

| Example | 3V | 2 | 10 | 8 | NO | A | * | p |
| Meaings | Model | Code | Valve type | Port size | Acting type | Voltage | Electricalentry | Thread |
| Explain | 3V1: | 10:singlesolenoid | NC:Normally closed | A:AC220V | Blank: | P:PT | ||
| Solenoidvalve | 2:200 series | 20:doublesolenoid | 06:1/8” | B:DC24V | Terminal | T:NPT | ||
| 3/2way | 10:1/4” | No: normally opened | C:AC110V | G:G | ||||
| F:DC12V | I:Grommet |
Our products including listed:
Cylinder Series:DNC,SQ cylinder, SI,SC,SU standard cylinder
DSN Series ISO6432 cylinder, ADVU, SDA,CQ2B compact cylinder
MA/MAL Mini cylinder
CJ2,CJP Series Needle cylinder
CYI Series Rodless cylinder
CXS,TN Series Double-shaft cylinder
CU Series Free Installation cylinder
MGP Series Three-shaft cylinder
RSQ Series Stopper cylinder
MSQ Series Rotary Table, Rack & Pinion cylinder
Parallel Style Wide Opening Air Gripper
SHZ Series Pneumatic Parrallel Gripper, SHC point type Gripper
Solenoid Valve: Two(Three)-position Five-way Solenoid Valve,Air control Valve, 4V/4A,3V/3A ,3V1 Solenoid Valve
4M Series Namur Valve, VF/VZ,MVSD Series Solenoid Valve
4H, TSV Series Hand-pull Valve
4H Series Hand-draw Valve
HV,K3 Series Hand-switching Valve
4F series Foot Valve
JM,MSV Series Mechanical Valve
ST,RE,AS,ASC,KA,CV,XQ,QE,KLA,KP,HSV valve
Two-position Two-way Solenoid Valve: 2W Solenoid Valve,
2V, 2P, 2L, PU, VX2120, 2Q Solenoid Valve
6213 Series Diaphragm Type Solenoid Valve
MCF, YMF Series Pulse Valve
JZF Series Plastic Piston Valve, SSJZF Series Stainless Steel Piston Valve
FRL Unit: Air Preparation including Filter, Regulator and Lubricator
Series Air Preparation ,Auto Drain
Fittings: plastic fitting, G thread fitting, mini fitting, stop fitting, Metal fitting, PU tube
Check Valve, Multipass Quick Coupler, Muffler, Air gun
Air Press Punch, Vane Pump
Hydraulic Ball Valve
1.18 months warranty
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.MOQ
There is no MOQ for COVNA design but for cusomer's, the MOQ according your design to decide.we will offer the
free sample for the massive products
3.Payment
We usually accept T/T(wire transfer), Western Union.
Trade Currency: USD or RMB.
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight.
1.Package
Our package method is in perfect condition, or according customized.
2.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
We have CE and RoHS certificate,the ISO9001 certificate is under processing
