- Place of Origin:CN;GUA
- Application:General
- Material:Alloy
- Temperature of Media:Medium Temperature
- Pressure:Medium Pressure
- Power:Pneumatic
- Structure:Control
- Brand Name:COVNA
- Model Number:AT052-DA Pneumatic Actuator
- Port Size:DN08
High tensile spring sets provide high performance in fail safe and emergency shut down operations.
Direct mounted solenoid connections according to NAMUR standards.
Base drilling, for valve mounting, and centering, according to ISO 5211/DIN 3337 standards.
The indicator is to remain on the actuator for continuous indication when limit switch is not being used.
▋ Accessories
▋ Principles of Single Acting & Double Acting Actuators

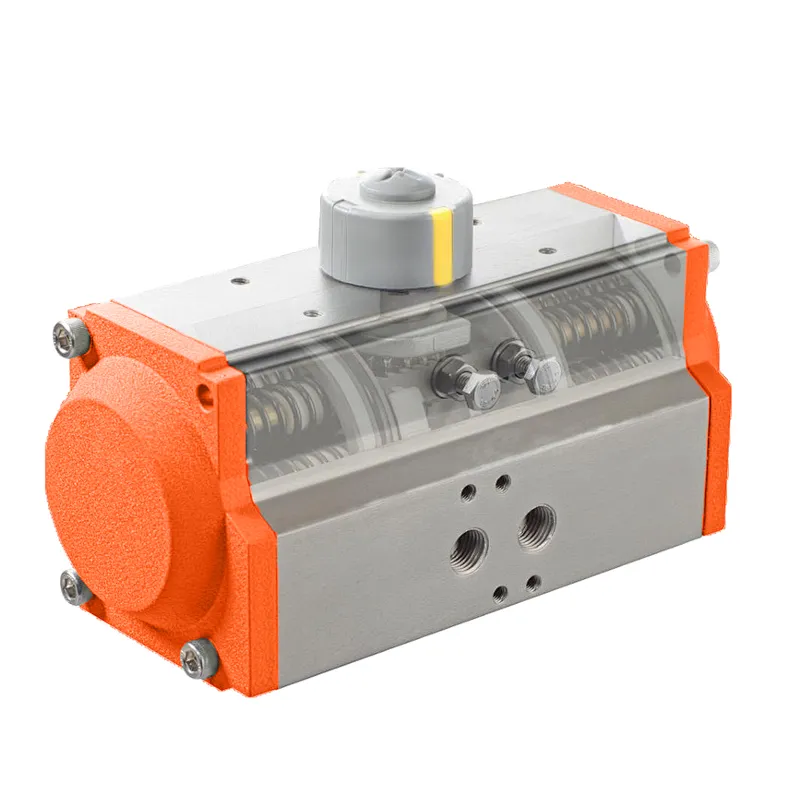

Principle of Single Acting Actuator (Spring Return)
CCW
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.
CW
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.
Principle of Double Acting Actuator
CCW
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.
CW
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.
CNC Sawing
Sawing with accuracy and precision.
CNC Machining
Advanced CNC machine from German.
Semi-finished Products and Components
Partly finished products, waiting for further processing.
Lasering
Lasering production batch and model info.
Actuator Assembly
Assembled by qualified engineers.
Final Quality Control
100% tested before shipping.
