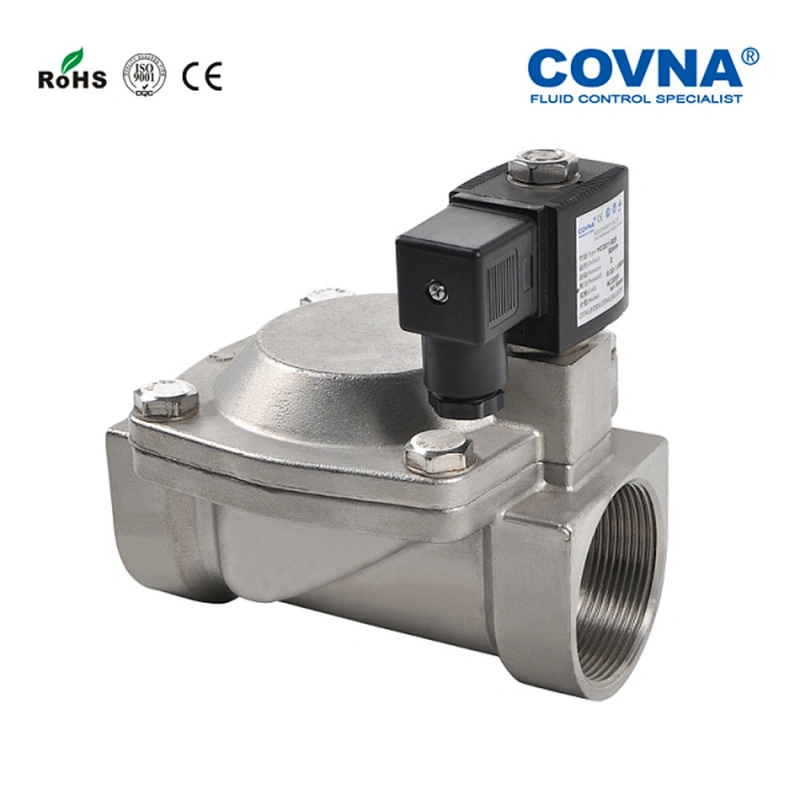

SS304 Stainless Steel Solenoid Valve with Thread Connection

Model NO.: HK09-SF
Price:: USD 12.99-12.99 / pieces
Delivery: FOB
Minimum order quantity: 2 pieces
Supply Ability: 1000 pieces / Month
Country of Origin: Shenzhen
Stock Time: 15 Working Days After Payment Confirmed Days

Quantity:

Product Description

Place of Origin:CN;GUA
Material:Stainless Steel
Brand Name:COVNA
Model Number:HK09-SF
Power:Solenoid
Pressure:Medium Pressure
Application:General
Port Size:F4''
Structure:Pilot
Standard or Nonstandard:Standard
Media:Water
Temperature of Media:Medium Temperature

Specifications

NOISELESS	ZERO LEAKAGE	LOW TEMP. RISE	LONG SERVICE LIFE

NOISELESS

ZERO LEAKAGE

LOW TEMP. RISE

LONG SERVICE LIFE

Item	SS304 Stainless Steel Solenoid Valve with Thread Connection
Applicable Standards	GB/T12238-2008
Size Range	DN15 to DN50, 1/2"to 2"
Pressure Rating	Low Pressure, 0 to 1.0MPa (0 to 150PSI)
Number of Ways	2/2, Two Position Two Ways
Valve Operation Type	Normally Closed (N/C), Open When Energized
Body Material	Brass, Stainless Steel are Available
Sealing Material	NBR, EPDM, FKM (VITON)
Structure	Pilot Diaphragm
End Connection	Female Thread
Coil Voltage	DC 24V (±10%), AC 110-220V, 50/60 Hz
Applicable Media	Control of Air, Water, Light Oil, Non-corrosive Media
Temp. of Media	Range from -10 to +80°C (14°F to 176°F) with NBR Sealing
Ambient Temp.	Range from -10 to +80°C (14°F to 176°F)
Protection Class	IP67, Explosion-protected Construction are Available
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Detail Images

#ALIBABA SELECTION SUPPLIER WITH 17 YEARS MANUFACTURING EXPERIENCE

#ALIBABA SELECTION SUPPLIER WITH 17 YEARS MANUFACTURING EXPERIENCE

QUALITY CONTROL

COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.

FIVE CHECKS IN THE WHOLE PROCESS

All valves products have to pass strict inspection before they finally go out, covering raw material check,in production check,semi-finished product check,sampling check and pre-delivery inspection.

START ORDER NOW

Learn more about us, please feel free to call us at 86-769-22763199

About COVNA

COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.

COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.

Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing，on-time delivery and full warranty service

Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors

This is COVNA - solve your technical questions with solid experience.

Our Service

Factory Views

Certifications

COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.

Packing

Packing: Solenoid valves packed in polybag in carton.

Delivery Time: 15 working days after payment confirmed.
