- Place of Origin:CN;GUA
- Material:Brass
- Brand Name:COVNA pressure switch
- Model Number:ZCZ pressure switch
- Power:Solenoid
- Pressure:High Pressure
- Port Size:1/2"~ 2", F3/4"~F2"
- Structure:Diaphragm
- Standard or Nonstandard:Standard
- Media:Water
- Temperature of Media:High Temperature

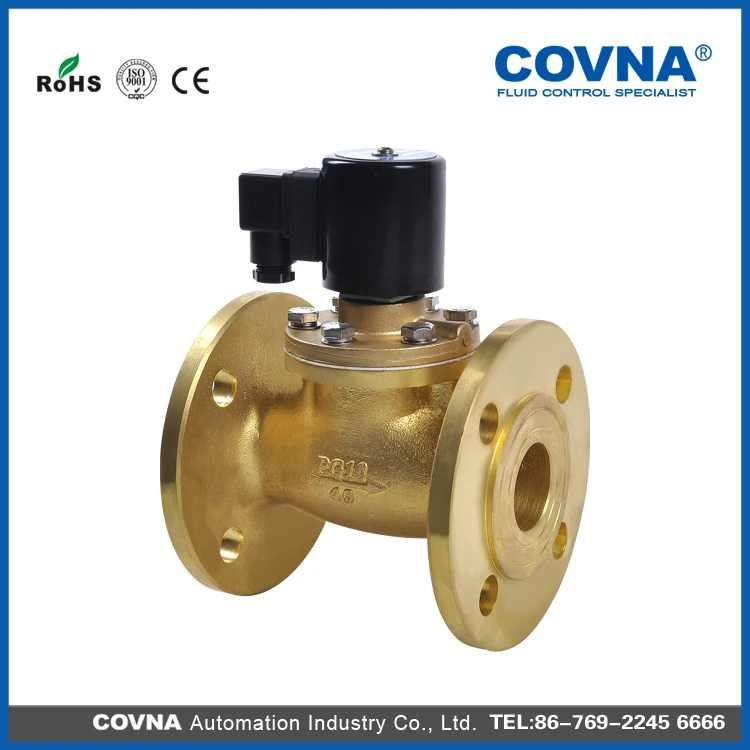

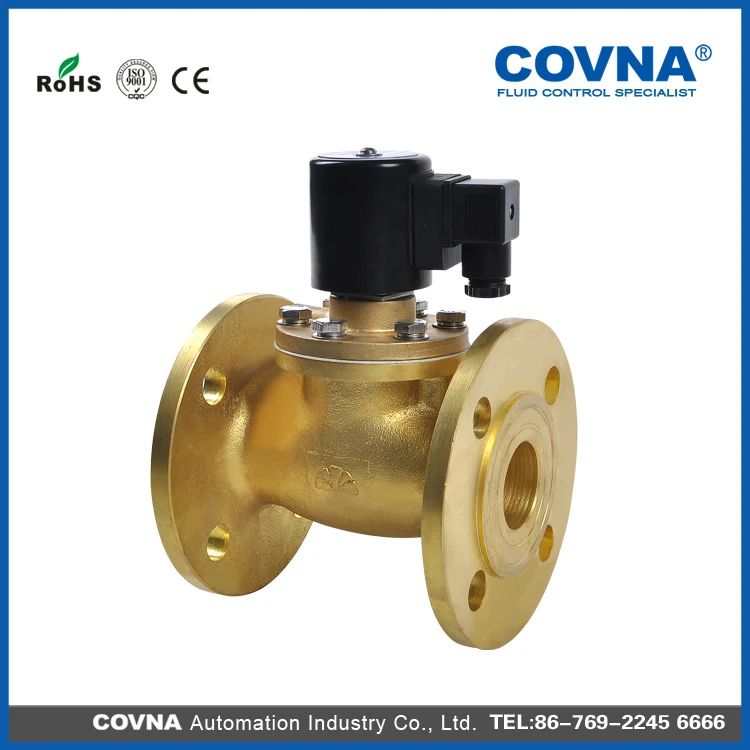

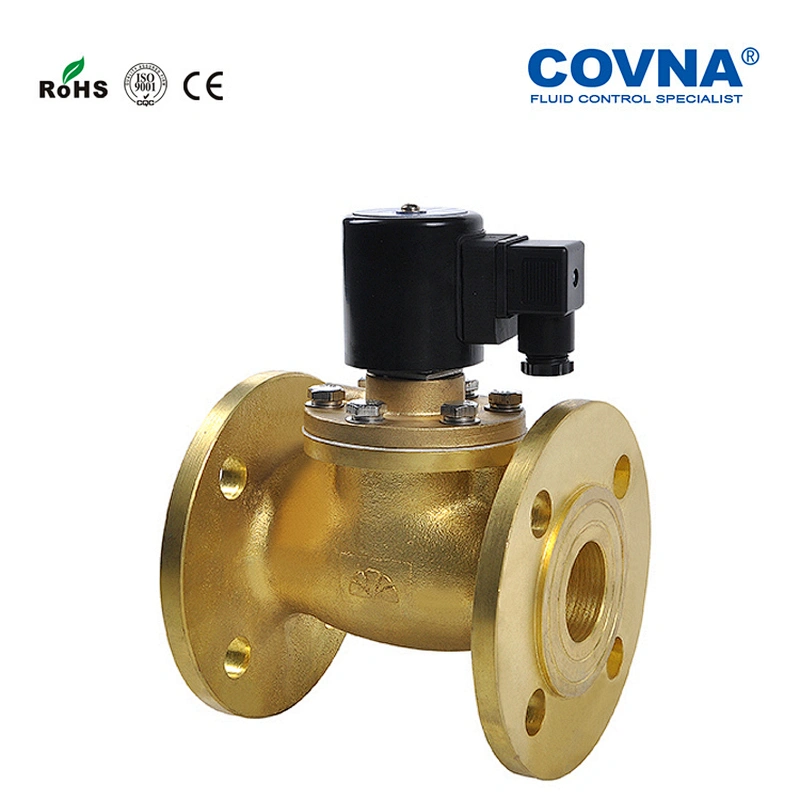

Supply high quality Flange solenoid valve, pressure switch:
| Characteristic | Pilot operated piston steam solenoid valve 2/2 normal close | ||||||
| Compact design to save the space | |||||||
| Medium | Air, Water, Steam, Oil | ||||||
| Temperature | NBR Seal:-10°C to 80°C | ||||||
| EPDM Seal:-10°C to 120°C | |||||||
| PEFT Seal:-20°C to 200°C | |||||||
| VITON Seal:-10°C to 150°C | |||||||
| Pressure | ZCZ:0.0MPa~ 1.6MPa | ||||||
| Port Size | 1/2" to 2" and F3/4" to F2" | ||||||
| Port Thread | BSPP,BSPT, NPT, Flange | ||||||
| Orifice(mm) | DN15 to DN50 | ||||||
| Voltage | DC:12V, 24V,36V | ||||||
| AC:24V,120V,240V/60Hz,110V,220V/50Hz | |||||||
| Tolerance | +/-10% | ||||||
| Coils | S91B,22VA(AC),17W(DC),IP65,100%ED | ||||||
| S21B,24VA(AC),18W(DC),IP65,100%ED | |||||||
| Material | Body:Brass | ||||||
| Seal:VITON,NBR,EPDM,PTFE | |||||||
| Armature Tube:Stainless Steel 304 | |||||||
| Plunger:Stainless Steel 430F | |||||||
| Stop:Stainless Steel 430F | |||||||
| Springs:SS304 | |||||||
| Shading Rings:Stainless Steel 304 | |||||||
Warranty
1.1 year
2.Great quality valves
3.We stand behind the quality of our valves 100%
4.All of our valves come with a warranty to give you a peace of mind.
5.New Guaranteed: All of our valves are in new condition in OEM or Original packing.
Package
1. Neutral Package: Plastic Tube + Carton + plywood case/based
2. Commercial Package: Color Box + Carton + plywood case/based
3. As your requirements and order execution
Payment:
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amount)
Contact information
Call the COVNA Customer Team:
We are here for you 24 hours a day-365 days a year.
Email us
We are looking to hear from you, and your inquiry will get fast reply.
- Certifications
- We have CE and RoHS certificate,the ISO9001 certificate is under processing.
Company profile, Factory view and Office view
We specialize in developing,manufacturing and selling solenoid valve,pneumatic valve,electric valve,
pulse valve,valves,pneumatic components,solenoid valve accessory,pipeline accessory.
FAQS
1. Is sample order acceptable?
Yes, it's acceptable.
2. How to place the order?
You can call us and send email to us or inquiry us on alibaba directly
3. What's the delivery?
There are standard products in stock.
4. How to make the payment?
L/C, T/T, Western Union is acceptable.
5. Do you have a complete catalogue showing all your products?
Our internet product catalogue is the most extensive information
source:www.covna-china.com
6. Can you deliver products exclusively made for us?
Yes, we have the possibility to develop products that are uique
for one customer subject to individual agreements.
The products may differ in appearance,
technical features or packaging.
Please contact us to discuss your requirements.
7. What the shipment?
1.By sea
2.By air
3.Express service
