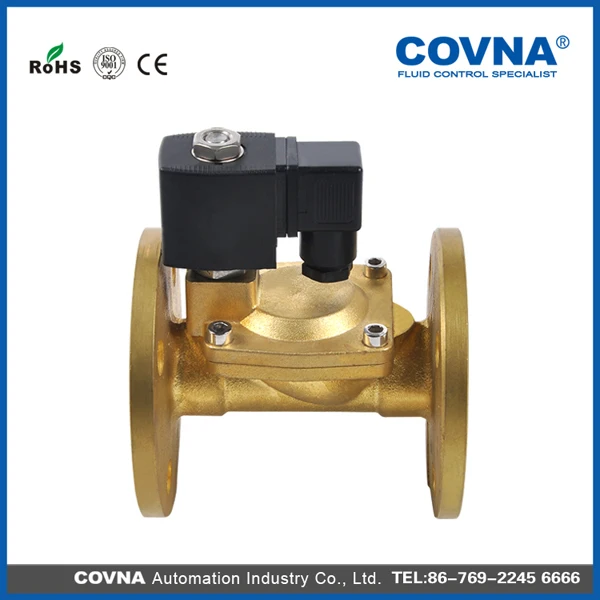

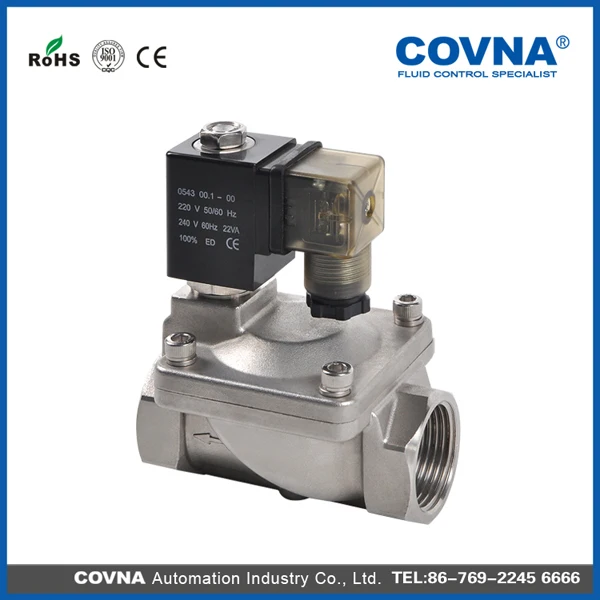

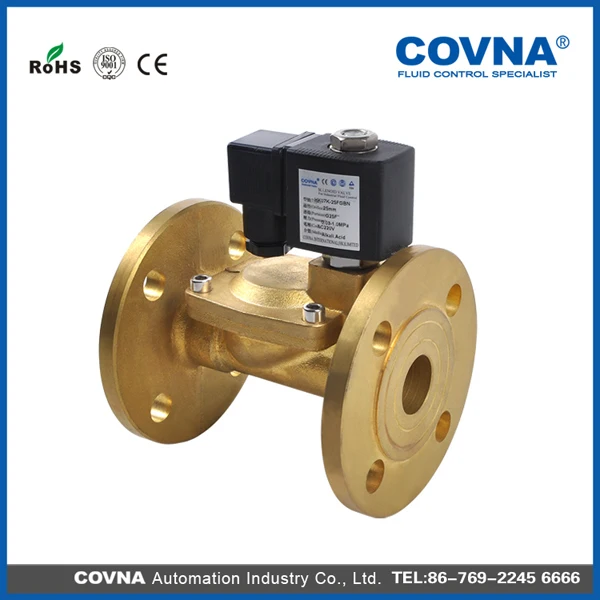

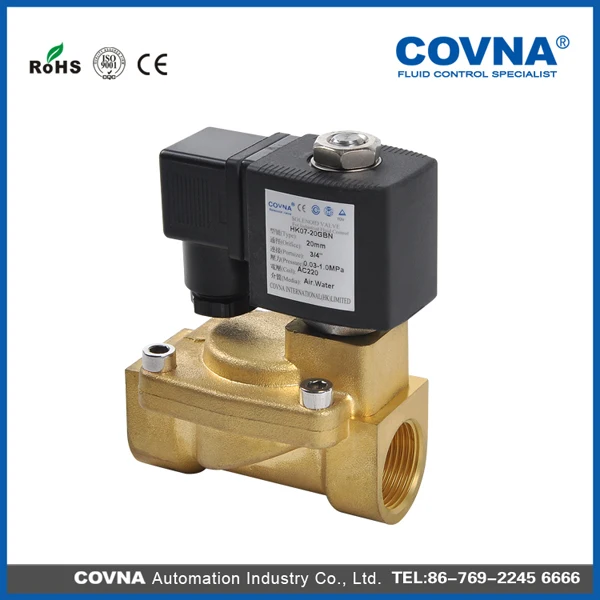

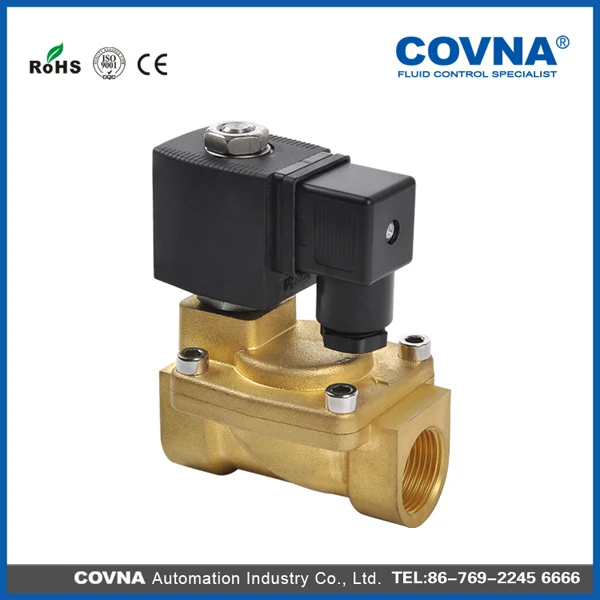

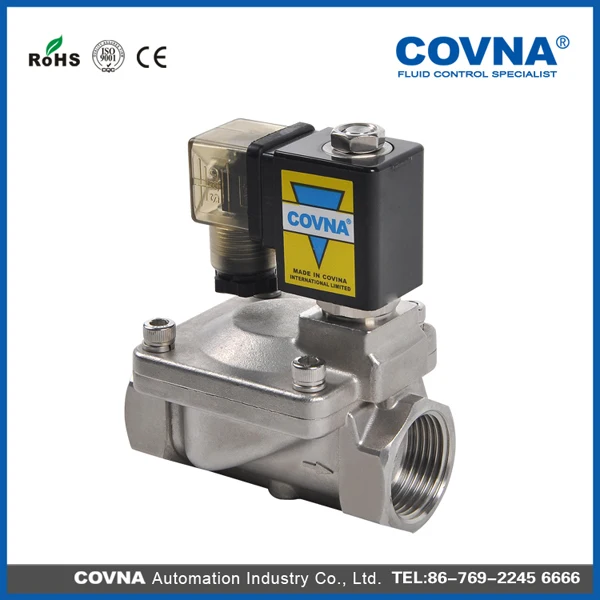

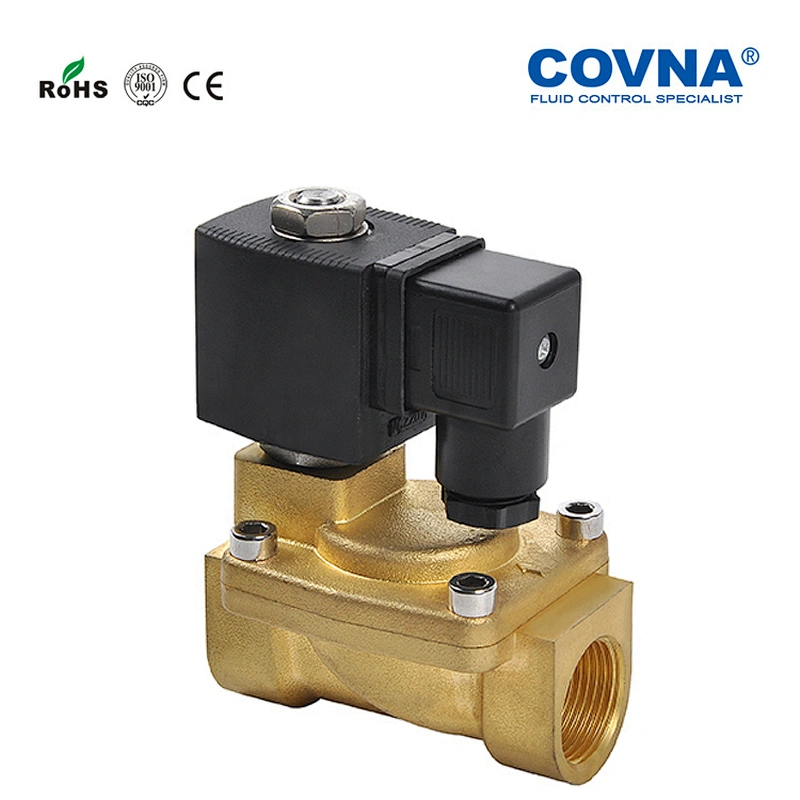

- Place of Origin:CN;GUA
- Brand Name:COVNA solenoid valve
- Model Number:HK09 solenoid valve
- Power:Solenoid
- Pressure:Medium Pressure
- Application:General
- Port Size:2''

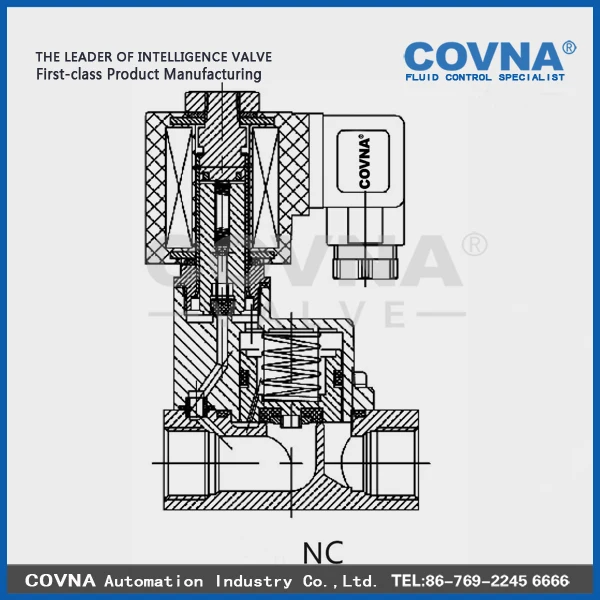

- Structure:Pilot
- Standard or Nonstandard:Standard
- Temperature of Media:High Temperature
- Material:brass or stainless steel
- Media:steam ,hot water ,oil, air
brass water air oil solenoid valve:
Solenoid valve superior Stainless steel valve water valvefootvalveselectorvalve,high temperaturesteamvalve
Steam solenoidvalve,high temperature solenoidvalve
Product Information:
HK09 is a proportional (modulating) servo-operated 2-way solenoid valve program with connections from 1/4” to 3/4”.
Through stepless regulation of the coil current, the armature can
be placed in any position in the armature tube, thus setting the valve
to any position between completely closed and completely open.
The valve is fully open when the coil current has reached its maximum valve.
| Characteristic: | 1. Pilot operated piston construction with low power consumption | |||||||
| 2. Seal serves longtime at steam ambient; | ||||||||
| 3. Used for long-time working in pipeline system. | ||||||||
| Medium: | Steam, Hot Water, Oil,air | |||||||
| Temperature: | PTFE Seal:-60°C to 200°C | |||||||
| VITON Seal: -30°C to 150°C | ||||||||
| Pressure: | DHP31: 0. 05MPa ~ 1. 6MPa NC | |||||||
| Port Size: | 3/8", 1/ 2", 3/4", ", 1, 1 1/4", 1 1/2", 2" | |||||||
| Port Thread: | G, BSP, NPT | |||||||
| Orifice (mm): | 12, 15, 20, 25, 32, 40, 50 | |||||||
| Voltage: | DC:12V, 24V | |||||||
| AC:24V, 120V, 240V/60HZ 110V, 220V/50HZ | ||||||||
| Tolerance: | +/- 10% | |||||||
| Coils: | S21H, 24VA (AC), 18W (DC), Ip65, 100%ED | |||||||
| Material: | Body:Stainless steel | |||||||
| Seal:PTFE or VITON | ||||||||
| Armature Tube:Stainless Steel 304 | ||||||||
| Plunger:Stainless Steel 430F | ||||||||
| Stop:SS430F | ||||||||
| Springs:SS 304 | ||||||||
| Shading Rings:Stainless Steel 304 | ||||||||
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q: What's your business scope?
A: Our business scope is air cylinder,air source treatment ,air solenoid valve ,motorize valve ,
pneumatic valve ,quick fitting,etc.
Q: What's your delivery date?
A: It depends on the number of orders. Delivery date is 7-30 days. If you need emergency products,
we can speed up the production of the first arrangement.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information,
then we can give you an estimated price is for reference only. We can do any size and any color.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing. Valve/ solenoid valve /electric
valve /pneumatic valve and air cylinder products and so on.
Q: How many years do you warrant?
A: 18 months warranty.
Q:How many years have you done valves,cylinders?
A: More than 13 years.
