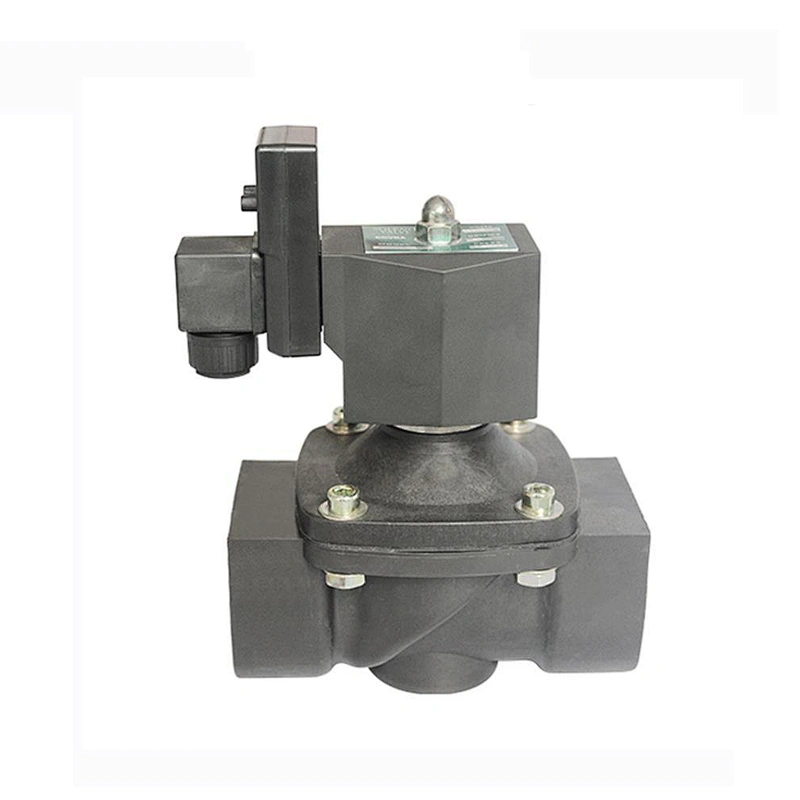

1 inch Plastic PVC Automatic Water Drain Solenoid Valve with Timer

1 inch Plastic PVC Automatic Water Drain Solenoid Valve with Timer

Model NO.: HK11-4-P Solenoid Valve
Price:: USD 26.00-131.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Plastic
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Solenoid
Media:Water
Structure:Diaphragm
Brand Name:COVNA
Model Number:HK11-4-P Solenoid Valve
Port Size:1/2"~2"

Product Details

Item	1 inch Plastic PVC Automatic Water Drain Solenoid Valve with Timer
Size Range	1/2"~2"
Medium	Water, Air, Steam, Civil Gas, Oil, etc
Temperature	NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃
Pressure	0~1.0MPa
Port Thread	BSPP, BSPT, NPT
Voltage	DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz
Tolerance	±10%
Material	Body: Plastic or Brass or Stainless Steel Seal: VITON, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304
Application	Filter Machine, Separator, Air Tank, Dripping Feet and Other Air Compressor System Parts

Dimension:

Coils Parameters:

Specification of Timer:

Timer

Voltage: 24V~240V AC/DC, 50Hz/60Hz

Absorption Current: 4mA Max

Working Temperature: -10°C~50°C

Switch Capacity: 1A

Duty Cycle: 100%ED
IP Rating: IP65

Time ON: 0.5 to 10s

Time OFF: 0.5 to 45min
Connector: DIN43650A

Contact us for more details!

Installation

Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.

Application

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
