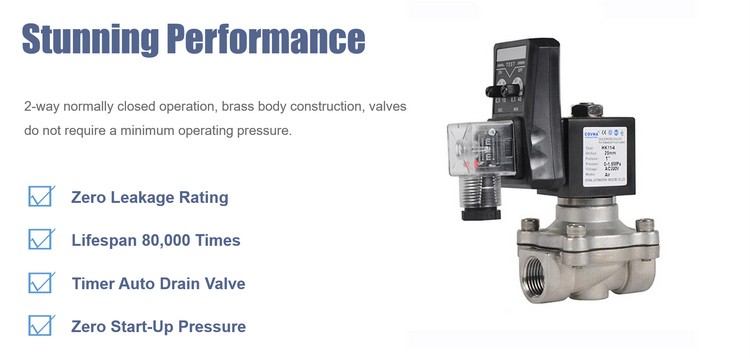

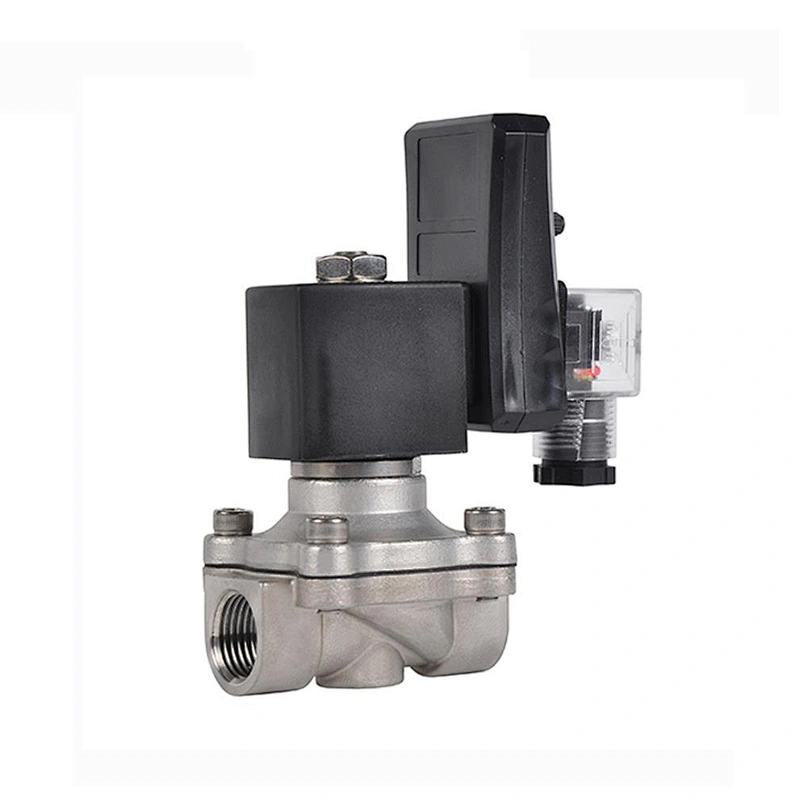

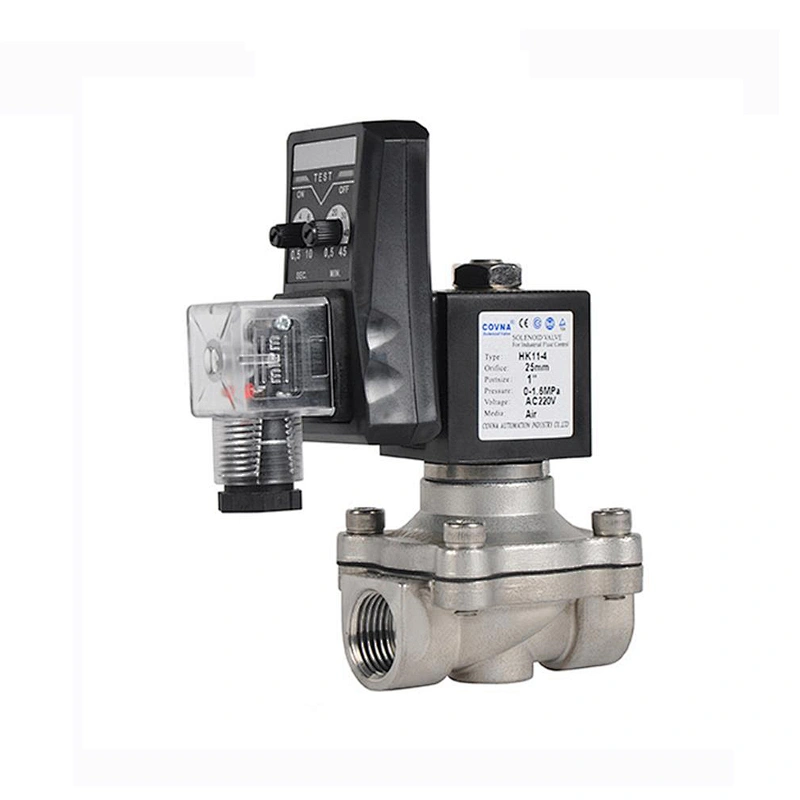

COVNA DN25 1 inch 2 Way 220V AC Normally Closed 304 Stainless Steel Timer Solenoid Valve

COVNA DN25 1 inch 2 Way 220V AC Normally Closed 304 Stainless Steel Timer Solenoid Valve

Model NO.: HK11-4 Solenoid Valve
Price:: USD 40.00-45.80 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Temperature of Media:Normal Temperature
Power:Solenoid
Media:Water
Structure:Diaphragm
Brand Name:COVNA
Model Number:HK11-4 Solenoid Valve
Port Size:1/2"~2"

Product Details

Item	COVNA DN 40 1.5 inch 2 Way AC220V Normally Closed Stainless Steel Timer Auto Drain Solenoid Valve
Size Range	1/2"~ 2", DN15~DN50
Medium	Water, Air, Steam, Gas, Oil, etc
Temperature	NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃
Pressure	0~1.0MPa
Port Thread	NPT, BSPP, BSP
Voltage	DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz
Tolerance	±10%
Material	Body: Brass or Stainless Steel Seal: VITON, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

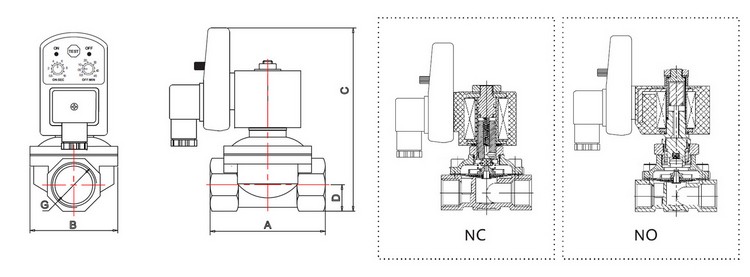

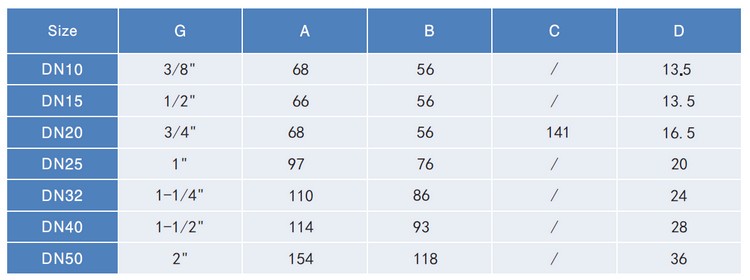

Dimension:

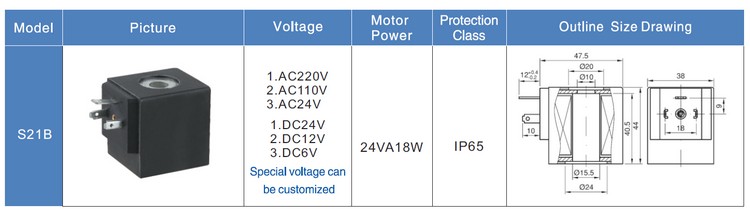

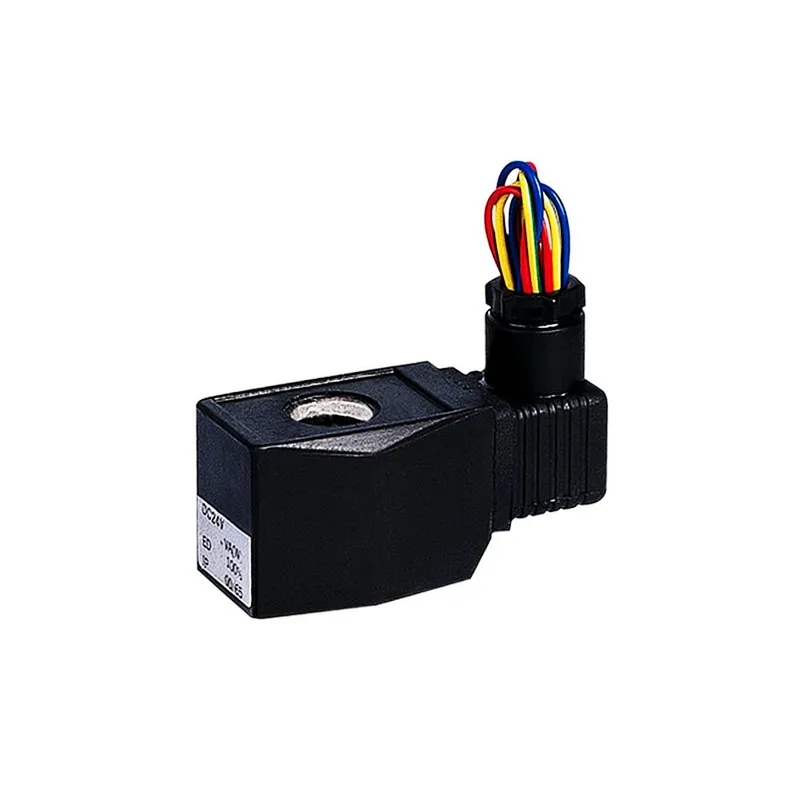

Coils Parameters:

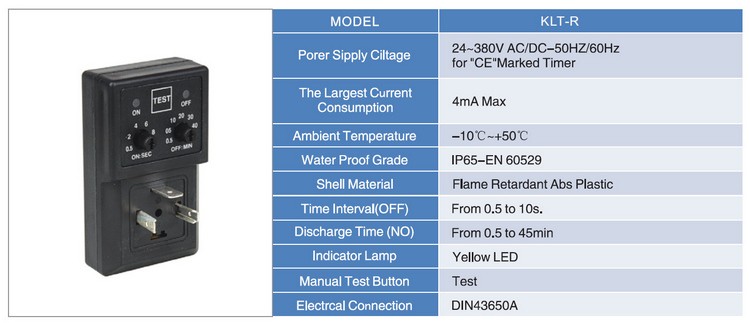

Specification of Timer:

Contact us for more details!

Installation

Make sure that the pipe is free of impurities.

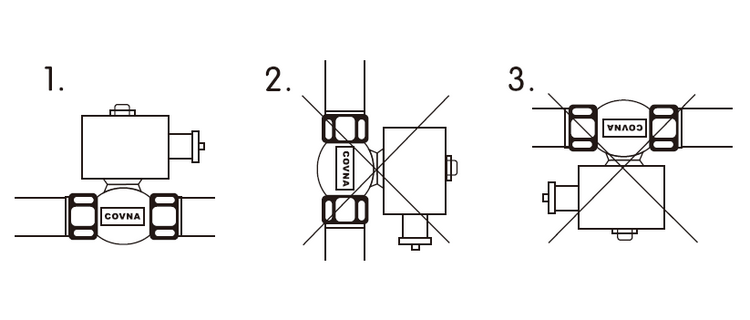

It is recommended to install the solenoid in vertical position with the coil facing upwards.

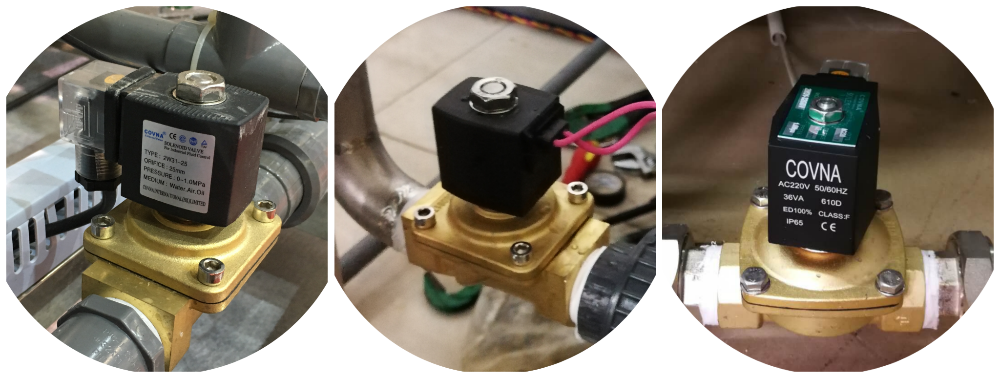

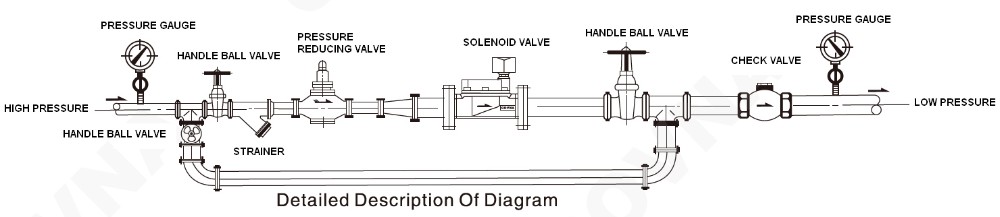

Application

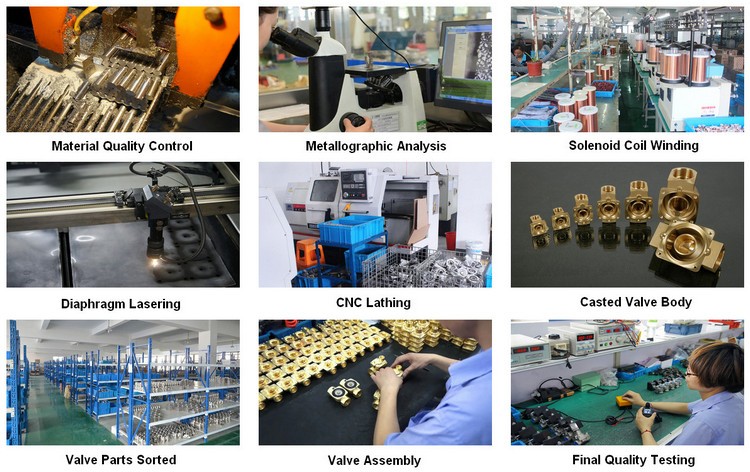

Production Flow

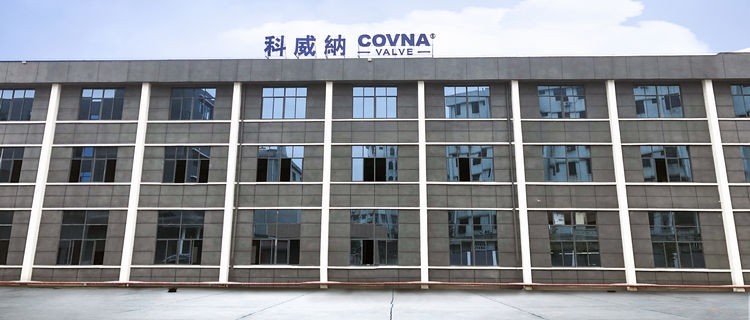

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
