- Place of Origin:CN;GUA
- Material:Alloy
- Brand Name:COVNA

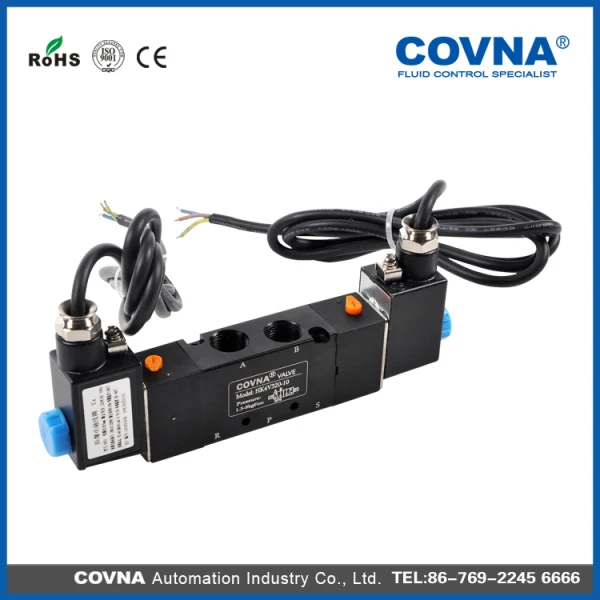

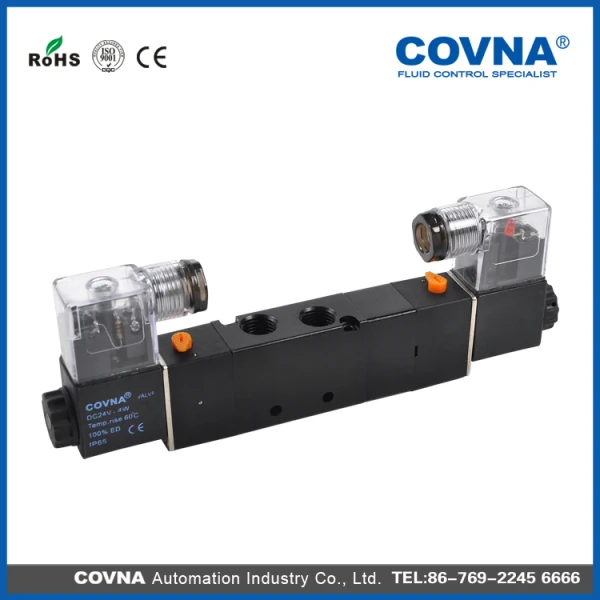

- Model Number:4V320 Pneumatic actuator solenoid valve
- Power:Solenoid
- Application:General
- Port Size:1/8"1/4"3/8"1/2"
- Structure:Plug
- Standard or Nonstandard:Standard
- Temperature of Media:Normal Temperature
- Pressure:015~0.8Mpa
- Media:Air
Specialty
1. Service life: 10 million cycle times.
2. The bodies are mirror finished and hard ending treated.
3. Equipped with imported oil seals with smaller friction and longer service life.
4. With imported coils, low power consumption, speedy response.
5.Capable of long service time for 18 months.
6.Free sample we can offer if the quantity is up to 500 pieces.
Media | water, air, hot water etc. |
Medium Temperature | -10°C~80°C |
Pressure | 0.0~0.7Mpa |
Material | plastic POM |
Port size | φ6 outer hole of soft interface |
Orifice | DN2.5 |
Seal | NBR,PTEF,VITON |
Voltage | DC-12,24V AC-24,120,240V(60Hz)110,220V(50Hz) |
Voltage tolerance | ±10%(AC) ±1%(DC) |
Port size:DN08:1/4"DN10:3/8"
Voltage: DC 24V, 24,AC 110V,220V (50 or 60Hz)
Fluid: Air (filtered through 40μ filter element)
Action: Internally piloted acting type
Valve type:5/2 way
Effective area(mm²):30mm²(CV=1.68)
Port size: In=out=3/8"Exhaust=1/4"
Lubrication: Not required
Operating pressure:1.5~8.0kgf/cm²
Proof pressure:10.5kgf/cm²
Temperature: 5 to 60°C
Voltage range:±10%
Power consumption:AC:4.5W DC:3.0W
Insulation grade: F grade
Protection:IP65(DIN 40050)
Connection: Lead wire type or terminal type
Max.frequency:5 cycle/sec.
Min. response time:0.05sec.
weight:310-10:310g 320-10:400g
Body Materials: aluminum
Seal Materials: NBR
1.Package
Our package method is in perfect condition, or according customized.
2.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
FAQ
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q:Could you offer the free samples?
A:Yeah,we could offer the free samples for the massive products.
Q: What's your business scope?
A: Our business scope is air cylinder,air source treatment ,air solenoid valve ,motorize valve ,
pneumatic valve ,quick fitting,etc.
Q: What's your delivery date?
A: It depends on the number of orders. Delivery date is 7-30 days. If you need emergency products,
we can speed up the production of the first arrangement.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information,
then we can give you an estimated price is for reference only. We can do any size and any color.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing. Valve/ solenoid valve /electric
valve /pneumatic valve and air cylinder products and so on.
Q: How many years do you warrant?
A: 18 months warranty.
Q:How many years have you done valves,cylinders?
A: More than 13 years.
Q:Do you company have specialized technical personnel?
A: Do you company have specialized technical personnel,they can design the product which the most meet your requirements.
Q:Can the product be made with our logo and brand?
A:Yes,of course,we can make .we are OEM supplier for years and professional to make.But you need give us the authorization if it is possible.
