- Place of Origin:CN;GUA
- Material:Alloy
- Brand Name:COVNA
- Model Number:HKMVSD
- Power:Pneumatic
- Pressure:Medium Pressure
- Port Size:1/8"-1/2"
- Structure:Control
- Standard or Nonstandard:Standard
- Temperature of Media:Low Temperature
- Media:air ,gas etc,

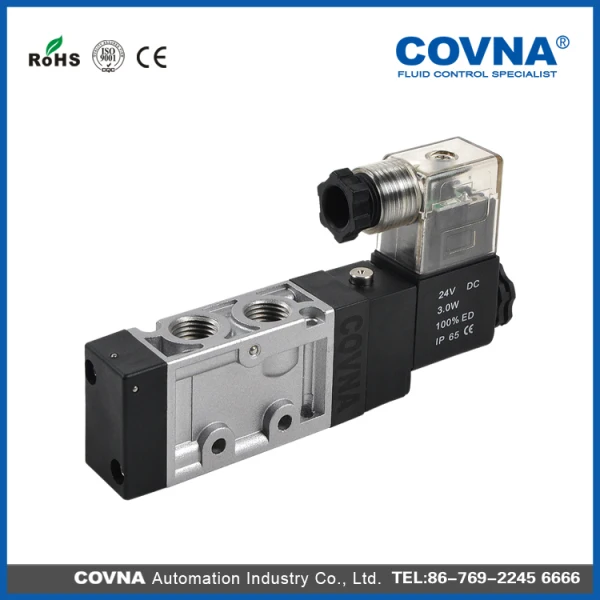

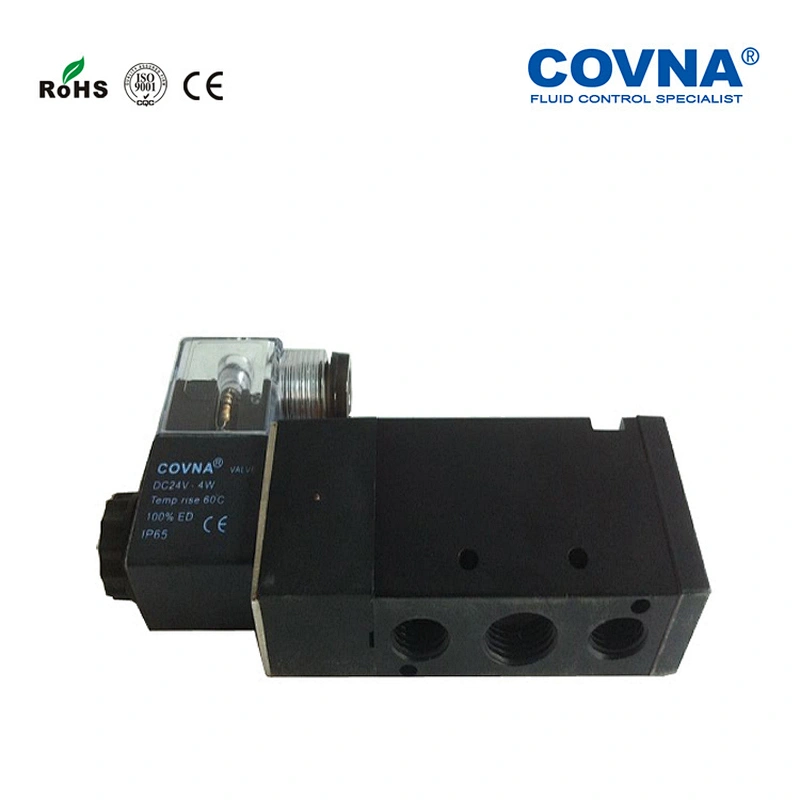

5 way solenoid valve with Manifold Complete Sets Professional custom 12v 24v 110v 220v
Characteristic:
1. Service life: 10 million cycle times.
2. The bodies are mirror finished and hardending treated.
3. Equipped with imported oil seals with smaller fricion and longer service life.
4. With imported coils, low power consumption, speedy response.
5.Capable of long service time without being damaged
.
| MSVD series air solenoid valve | ||||||||
| Model | MSVD-260-4E1 | MSVD-260-4E2 | MSVD-260-4E2 | MSVD-300-4E1 | MSVD-300-E2 | MSVD-300-E2 (C.P.E) | MSVD-600-4E1 | MSVD-600-4E2 |
| (C.P.E) | ||||||||
| NO.of Position | 2 | 2 | 3 | 2 | 2 | 3 | 2 | |
| NO.of Port | 5 | 3 | 5 | 5 | ||||
| Port Size | G 1/4'' | G 3/8'' | G 3/4'' | G 1'' | ||||
| Working media | Air | |||||||
| Working pressure | 0.2~0.7Mpa | 0.3~0.7Mpa | 0.2~0.7Mpa | 0.3~0.7Mpa | 0.2~0.7Mpa | |||
| Max.resistance Pressure | 10kg/cm2 | |||||||
| Effective Sectional Area | 18mm2 | 16mm2 | 35mm2 | 25mm2 | 20:115mm2 25:135mm2 | |||
| Ambient Temperature | -50~50℃( Non Frozen ) | |||||||
| Power Consumption | AC:5.5VA DC:4.8W | AC:13VA DC:10W | ||||||
| Available Voltage Range | ±10% | |||||||
| Insulation Class | IP 65/F Class | |||||||
1.18 months warranty
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.MOQ
There is no MOQ for COVNA design but for cusomer's, the MOQ according your design to decide.we will offer the
free sample for the massive products
3.Payment
We usually accept T/T(wire transfer), Western Union.
Trade Currency: USD or RMB.
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight.
We have CE and RoHS certificate,the ISO9001 certificate is under processing
We specialize in developing,manufacturing and selling air cylinder,air solenoid valve,air source
treatment, solenoid valve,pneumatic valve,electric valve,pulse valve,valves,solenoid valve accessory,
pipeline accessory.
Company profile
Workshop view
Workshop view
FAQ
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q:Could you offer the free samples?
A:Yeah,we could offer the free samples for the massive products.
Q: What's your business scope?
A: Our business scope is air cylinder,air source treatment ,air solenoid valve ,motorize valve ,
pneumatic valve ,quick fitting,etc.
Q: What's your delivery date?
A: It depends on the number of orders. Delivery date is 7-30 days. If you need emergency products,
we can speed up the production of the first arrangement.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information,
then we can give you an estimated price is for reference only. We can do any size and any color.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing. Valve/ solenoid valve /electric
valve /pneumatic valve and air cylinder products and so on.
Q: How many years do you warrant?
A: 18 months warranty.
Q:How many years have you done valves,cylinders?
A: More than 13 years.
Q:Do you company have specialized technical personnel?
A: Do you company have specialized technical personnel,they can design the product which the most meet your requirements.
Q:Can the product be made with our logo and brand?
A:Yes,of course,we can make .we are OEM supplier for years and professional to make.But you need give us the authorization if it is possible.
