- Place of Origin:CN;GUA
- Application:General
- Temperature of Media:Medium Temperature
- Media:Water
- Structure:Ball
- Power:Electric Actuator
- Brand Name:COVNA
- Model Number:C-05 Electric Actuator
- Port Size:1/2"to 4"
● MOQ: 1 set
●19 years of valve manufacturing experience
● Strong inventory, part of commission returned for bulk delay
● Product quality will be guaranteed for 1 year
●OEM service to help customers to promote their brands
● Offer various international standard, ANSI, JIS, DIN, etc
● Custom complaints handed by one stop professional service.
● Inquiry will be replied within 8 hours
Control Mode | Function | ||||
ON-OFF Type | Feedback: the Active Contact Signal, Passive Contact Signal, Resistance | ||||
Regulation Type | Input & Output Signal: DC 4-20mA, DC 0-10V | ||||
Field Operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus | ||||
Shell Material | Die-Cast Aluminum Alloy (Powder Coated) | ||||
Lifespan | 100,000 (Ten Thousand) Times | ||||
Output Torque | 50 to 4000Nm | ||||
Angle of Rotation | 90° ±4° | ||||
90° Cycle Time | 15S/30S/60S | ||||
Optional Voltage | DC24V (±10%), AC110-220V, 50/60Hz | ||||
Insulation Resistance | DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V | ||||
Withstand Voltage | DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute | ||||
Protection Class | IP68 | ||||
Explosion Proof | EX d II BT4 | ||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||||
Ambient Temp. | Range from -30°C to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements) | ||||

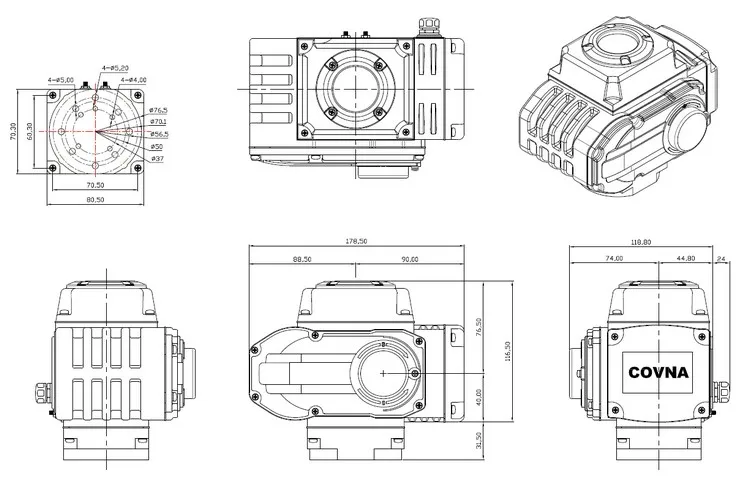

Dimension
Wiring Diagram
ON/OFF Type with Passive Contact Signal Feedback
AC Voltage
DC12V/DC24VDirectON-OFF Type
DC Voltage
Regulation Type with Servo Control Module
AC Voltage / DC Voltage
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.
Packing:Manufacturer 12V 24V IP68 90 Degree Rotary Waterproof Motorized Electric Actuator packed with foam in carton.
Delivery Time: 15 working days after payment confirmed.
Q1. Is the sample order acceptable?
A: Yes, of course.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
