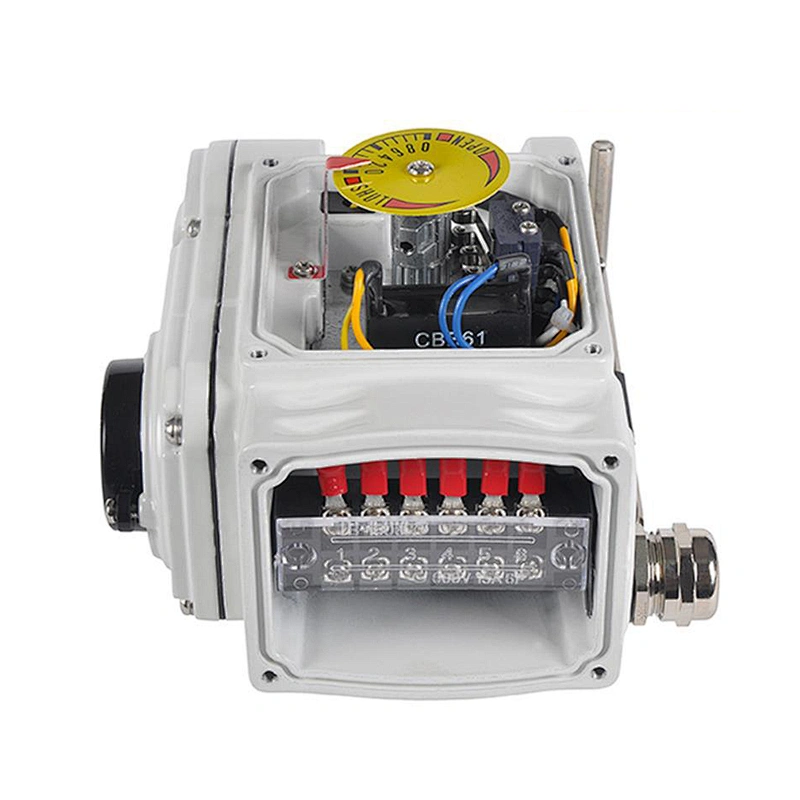

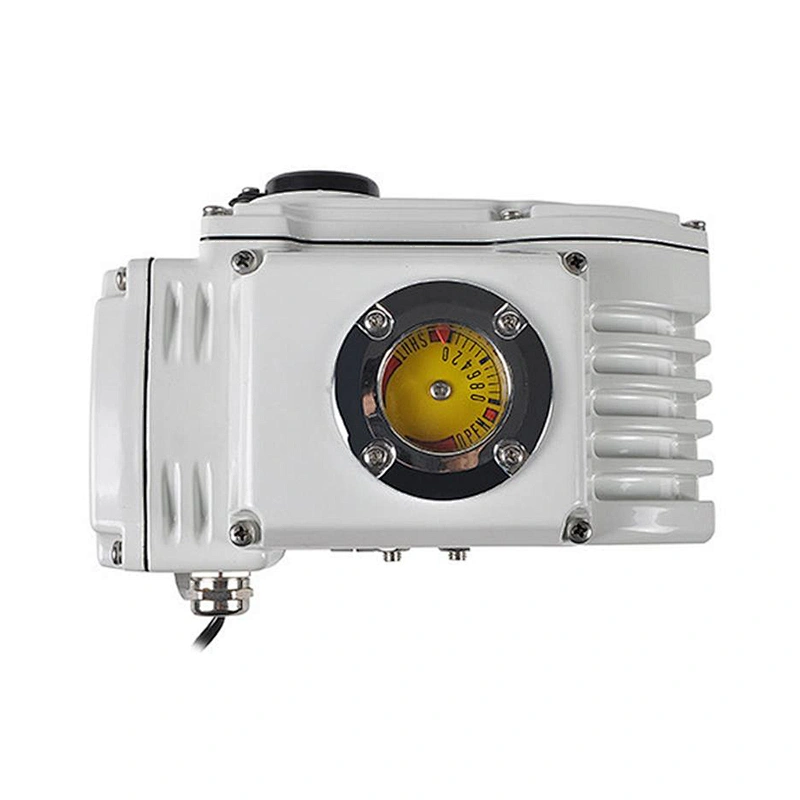

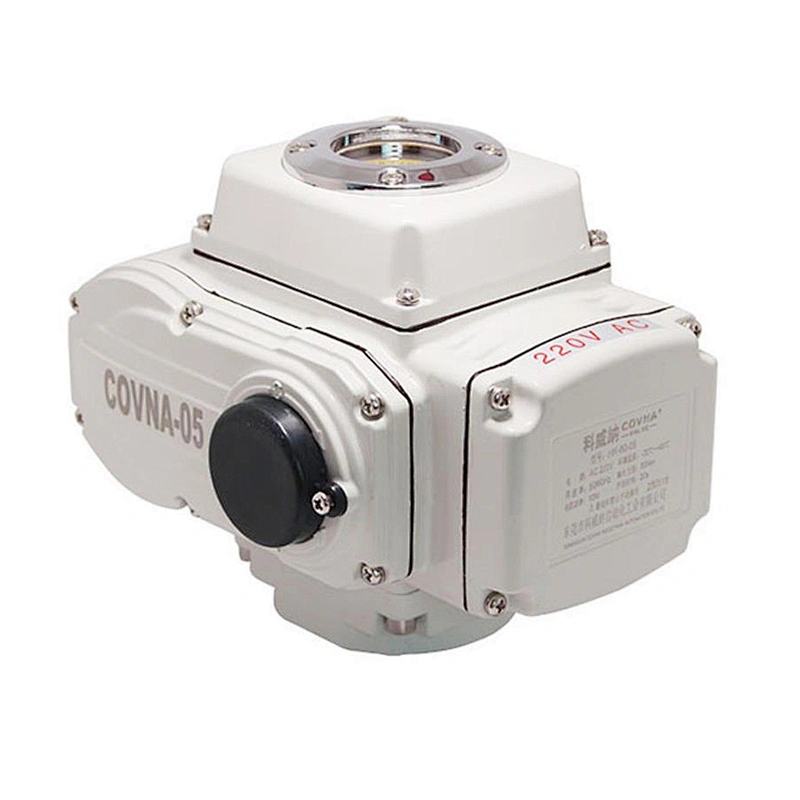

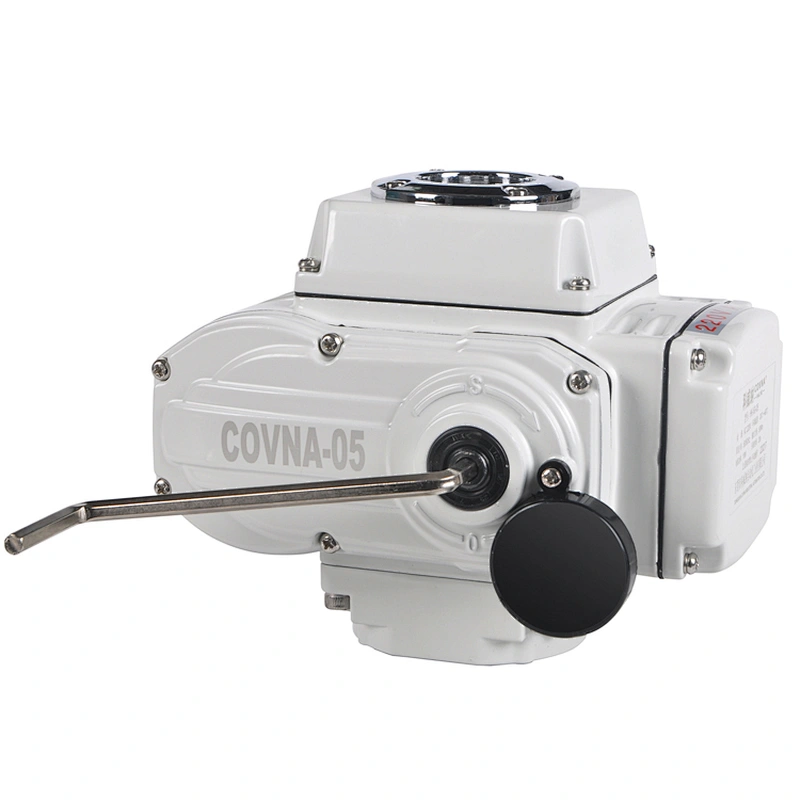

COVNA C-05 Series 12V DC On Off Control 90 Degree Electric Rotary Actuator

COVNA C-05 Series 12V DC On Off Control 90 Degree Electric Rotary Actuator

Model NO.: COVNA 05 Electric Actuator
Price:: USD 69.99-199.99 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 1000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Plastic
Temperature of Media:High Temperature
Temperature of Media:Low Temperature
Temperature of Media:Medium Temperature
Temperature of Media:Normal Temperature
Pressure:High Pressure
Media:Water
Structure:Shutoff
Power:Electric Rotary Actuator
Brand Name:COVNA
Model Number:COVNA 05 Electric Actuator
Port Size:ISO 5211

Specifications

Technical Parameter for Actuator

Technical Parameter for Actuator

Control Mode	Function
ON-OFF Type	Feedback: the Active Contact Signal, Passive Contact Signal, Resistance
Regulation Type	Input & Output Signal: DC 4-20mA, DC 0-10V
Field Operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus

Shell Material	Die-Cast Aluminum Alloy (Powder Coated)
Lifespan	100,000 (Ten Thousand) Times
Output Torque	50 to 4000Nm
Angle of Rotation	90° ±4°
90° Cycle Time	15S/30S/60S
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Insulation Resistance	DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
Protection Class	IP65
Explosion Proof	EX d II BT4
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Ambient Temp.	Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements)

In Stock, Start Order Now!

In Stock, Start Order Now!

Wiring Diagram

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback
AC Voltages

Regulation Type with Servo Controller Module
AC Voltages

Production Flow

GERMAN TECHNOLOGY

COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.

MADE BY EXPERIENCED ENGINEERS

All products are designed, engineered and manufactured by experienced engineers to provide safe, reliable and dependable valves, actuators and solutions.

About COVNA

COVNA - Solve your technical questions with solid experience

We are COVNA Automations, one of the top manufacturers of quarter turn actuators and automatic control valve products in Dongguan, China with 18 years experience. Our industrial experience will be useful in your business and projects.

18 Years Operation

Good credit rating. Large quantities of regular clients.

German Imported CNC Machine

Fully automated, high accuracy.

ISO 9001 Certificated

With additional certifications that include TUV SGS RoHS.

Affordable Prices

Our prices are both fair and affordable.

Qualified Engineers

Designed and manufactured by experienced engineers.

Well-trained Staffs

Always available to answer your questions.

ODM Services

With access to download 2D & 3D models.

Standardization Production

Stable quality, strict quality control.

Same-day Shipping

Keep a large stock of electric ball valves.

Global Presence

Find us at the exhibition or contact local representatives.

In Stock, Start Order Now!

In Stock, Start Order Now!

Packing

Packing: COVNA C-05 Series 12V DC On Off Control 90 Degree Electric Rotary Actuators packed with foam in carton.
Delivery Time: 15 working days after payment confirmed.
