12VDC, 24VDC 1/2
12VDC, 24VDC 1/2

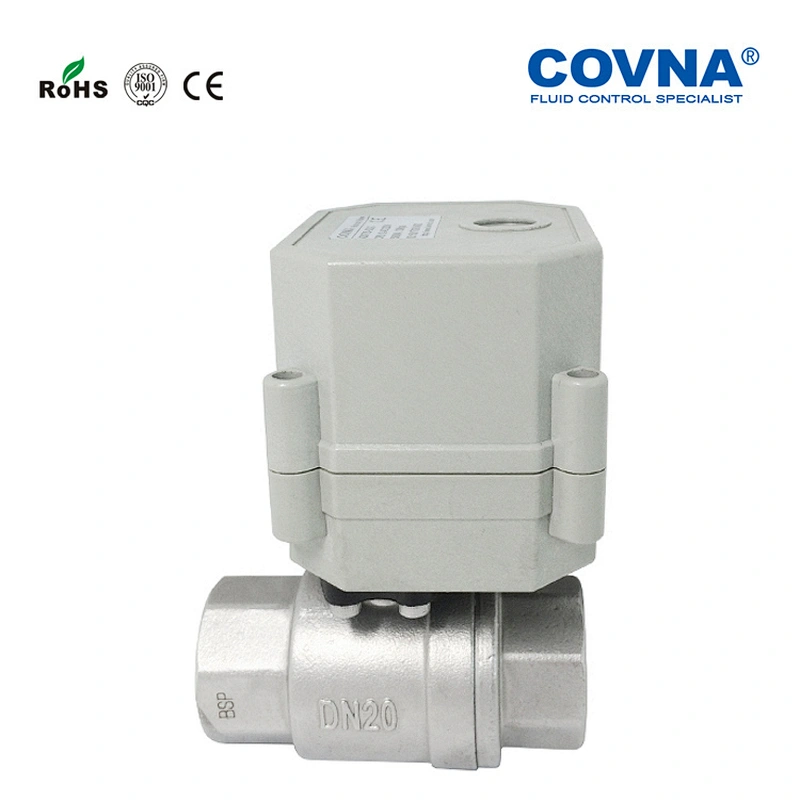

12VDC, 24VDC 1/2" to 2" Motorized Ball Valve for Water Control

Model NO.
Motorized Ball Valve
Price:
USD 89.99-89.99 / piece
Delivery
FOB
Supply Ability
10000 piece / Month
Country of Origin
shenzhen
Stock Time
2-3 days after sample confirmation Days
Quantity:
  • Place of Origin:CN;GUA
  • Material:Stainless Steel
  • Brand Name:COVNA
  • Model Number:Motorized Ball Valve
  • Pressure:Medium Pressure
  • Application:General
  • Port Size:1/2"-2"
  • Structure:Ball
  • Standard or Nonstandard:Standard
  • Media:Water
  • Temperature of Media:Normal Temperature
  • Power:Motor Operated

Brass Body Material Motorized Ball Valve

Technical Parameters



Product size

NPT1/2'', NPT/BSP 3/4", NPT 1'' (Opitonal)

Max working pressure1.0MPa
Circulation mediumFluid, Air
Rated voltageDC5V,  DC12V, DC24V,  AC/DC9-35V, AC110V-230V (Optional)
Wiring control methods

CR201, CR202, CR301, CR302, CR303, CR304, CR501,

CR701, CR702 (Optional)

Working current≤500MA
Open/close time≤5 Sec
Life time70000 times
Valve Body materialBrass,  Nickel plated Brass, 304 Stainless steel (Optional)
Actuator materialEngineering Plastics
Sealing materialEPDM & PTFE
Actuator rotation90°
Max. torque force2 N.M
Cable Length0.5m, 1.5m (Optional)
Environment temperature-15℃~50℃
Liquid temperature2℃~90℃
Manual overrideNo
IndicatorYes
Protection classIP67



Specifications



ModelWiring controlWorking voltageMax. torque
HK15-S2-ACR2 01DC5V, DC12V, DC24V2N·M
HK15-S2-ACR202AC/DC9-24V, AC/DC9-35V, AC110V-230V2N·M
HK15-S2-ACR3 01

DC5V, DC12V, DC24

2N·M
HK15-S2-ACR3 02

DC9-35V

2N·M
HK15-S2-ACR3 03

AC/DC9-35V

2N·M
HK15-S2-ACR3 04

DC5V, DC12V, DC24V, AC/DC9-35V

2N·M
HK15-S2-ACR5 01DC5V, DC12V, DC24V2N·M
HK15-S2-ACR5 02AC/DC9-24V, AC/DC9-35V, AC110V-230V2N·M
HK15-S2-ACR7 01

DC9V-35V

2N·M
HK15-S2-ACR7 02

DC5V, DC12V, DC24V, AC/DC9-35V

2N·M
HK15-S2-ACR7 03

DC12V, DC24V

2N·M
