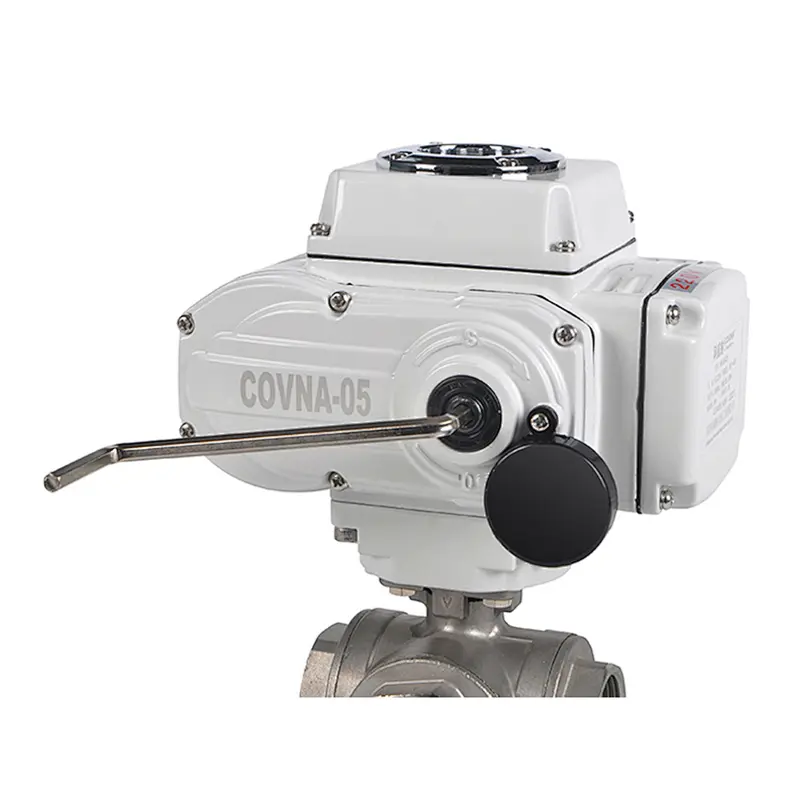

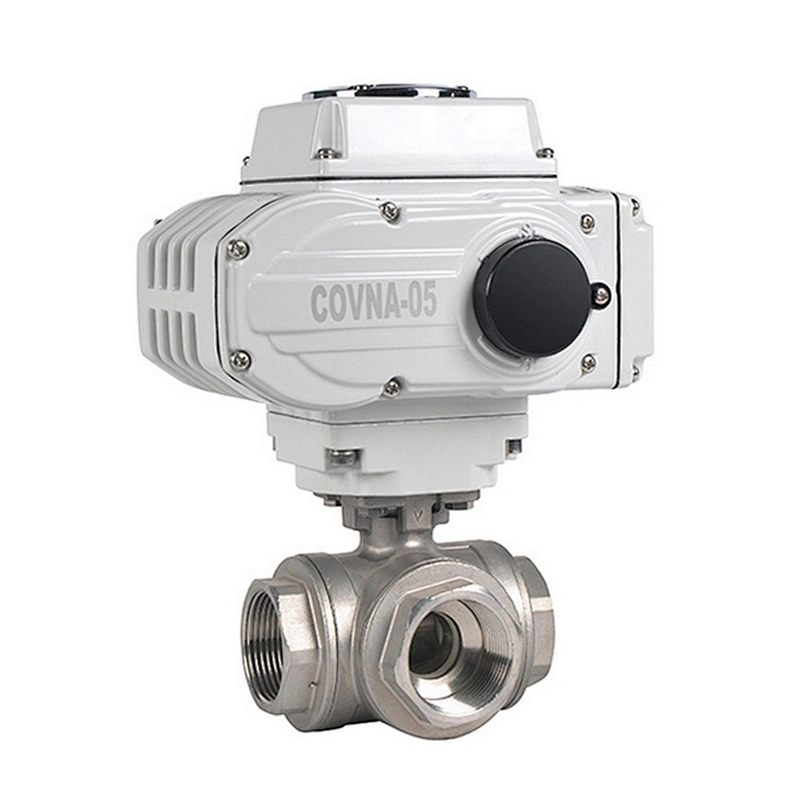

Hot Sale 3 Way 24V DC Electric Actuator Water Control Ball Valve

Hot Sale 3 Way 24V DC Electric Actuator Water Control Ball Valve

Model NO.: HK60-Q-T Motorized Ball Valve
Price:: USD 102.30-800.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Stainless Steel
Temperature of Media:Normal Temperature
Pressure:High Pressure
Media:Water
Structure:Ball
Power:Motorized
Brand Name:COVNA
Model Number:HK60-Q-T Motorized Ball Valve
Port Size:3/8"~4"

Specification

Item	3 Way 24V DC Electric Actuator Water Control Ball Valve
Size Range	1/4"~4", DN08~DN100
Operating Pressure	1.0MPa~6.4MPa
Control Mode	On Off Type / Modulating Type
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Body Material	Stainless Steel, WCB, CF8, CF8M, CF3M
Core Material	Stainless Steel
Sealing Material	PTFE: -30°C~180°C, PPL: -30°C~150°C
Structure	3 Way L Port, T Port are Available
Threaded Connection	G, NPT, BSP, BSPP
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

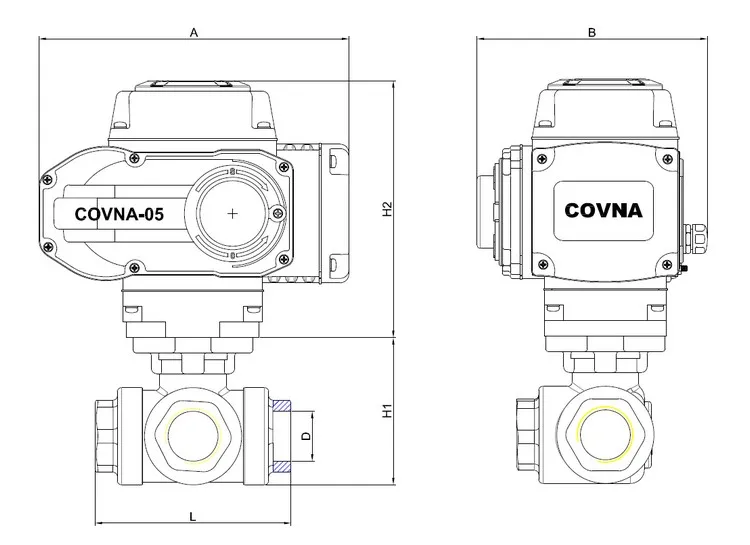

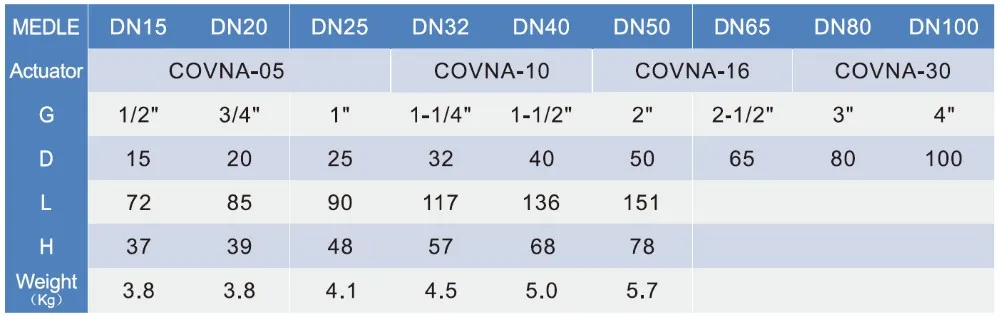

Dimension:

Flow Diagram

Flow Diagram

T Pattern

L Pattern

Electric Actuator

Wiring Diagram

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback

AC Voltage

DC12V/DC24V Direct ON-OFF Type

DC Voltage

Regulation Type with Servo Control Module

AC Voltage / DC Voltage

Other AC/DC voltage can also be customized!

Contact Us for More Details!

Application

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
