- Place of Origin:CN;GUA
- Application:General
- Material:Brass
- Temperature of Media:Low Temperature
- Temperature of Media:Medium Temperature
- Temperature of Media:Normal Temperature
- Pressure:Low Pressure
- Media:Water
- Structure:Ball
- Power:Electric Ball Valve
- Brand Name:COVNA
- Model Number:HK62-H-T Ball Valve
- Port Size:1/2"~1"

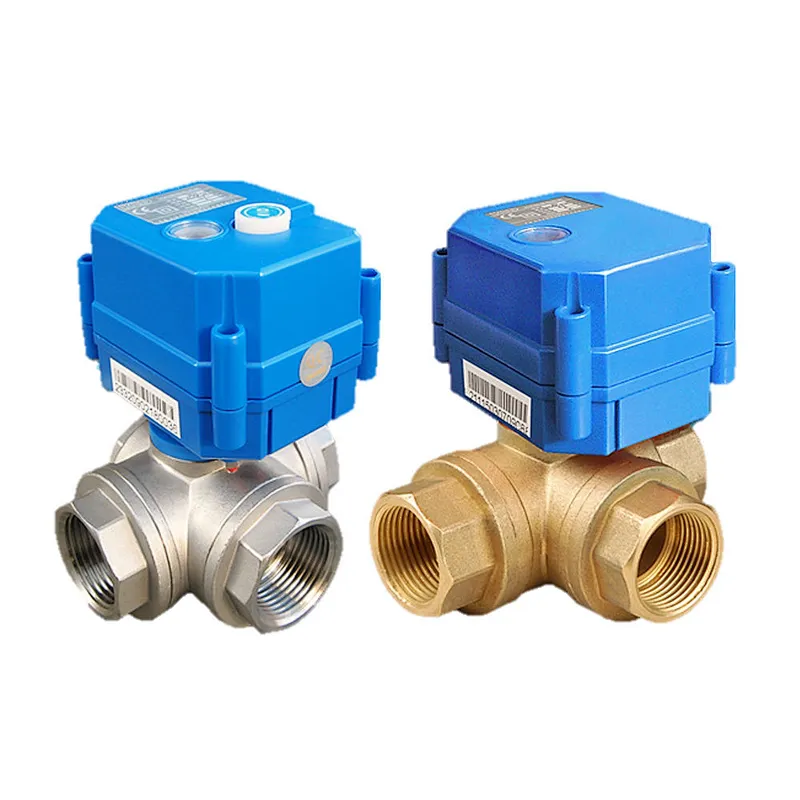

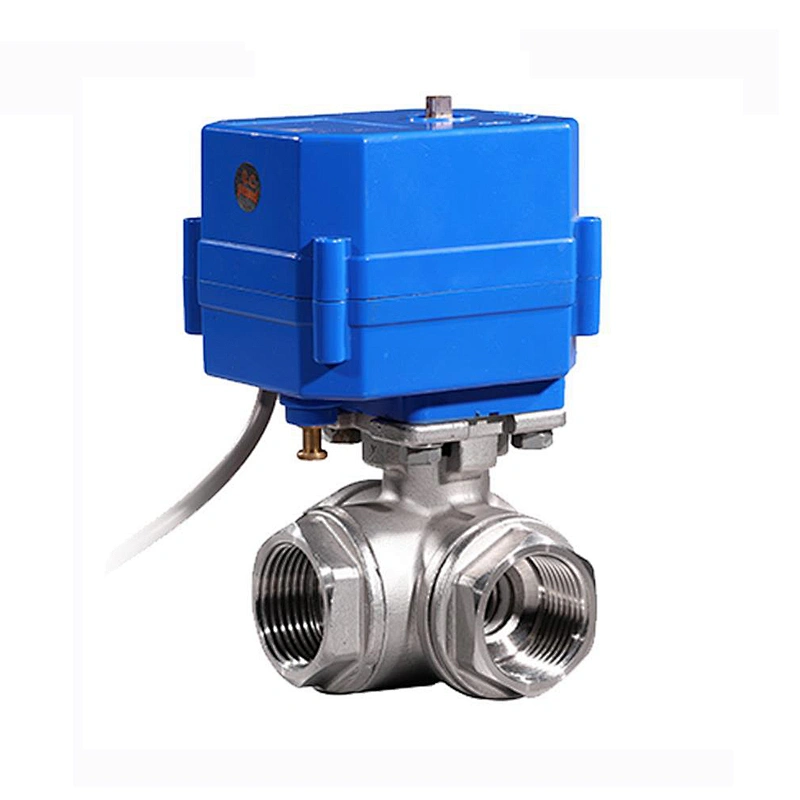

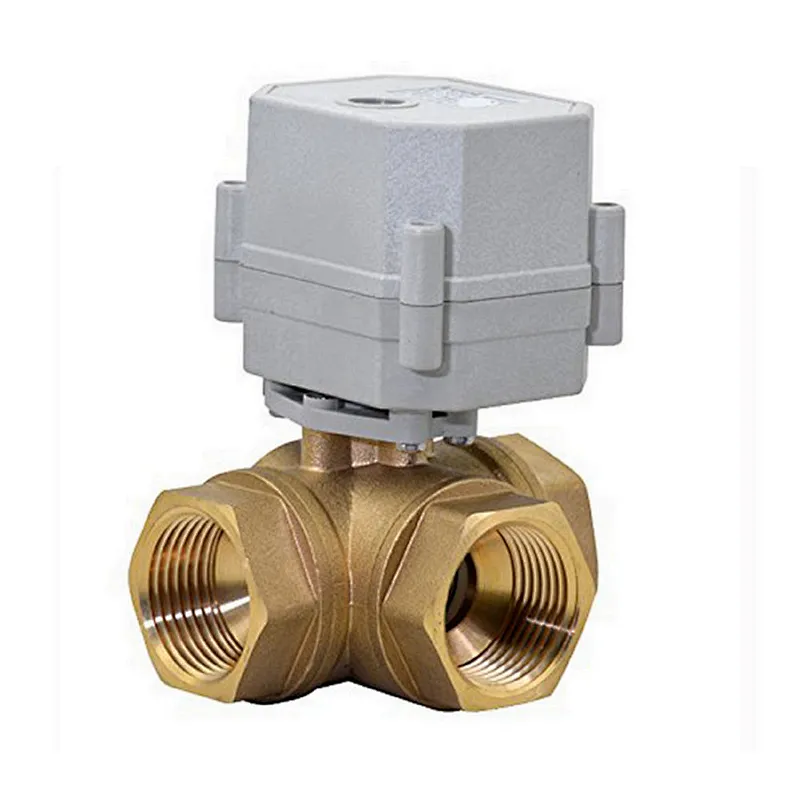

1/2 inch 3 Way L Port 24V DC CR2 2 Wire Auto Return Brass Electric Water Flow Control Valve
Advantages:
- MOQ:1 set
- 19 years of valve manufacturing experience
- Strong inventory, part of commission returned for bulk delay
- Product quality will be guaranteed for 1 year (12 Months)
- OEM service to help customers to promote their brands
- Offer various international standard, ANSI, JIS, DIN,etc
- Custom complaints handed by one stop professional service.
- Inquiry will be replied within 8 hours

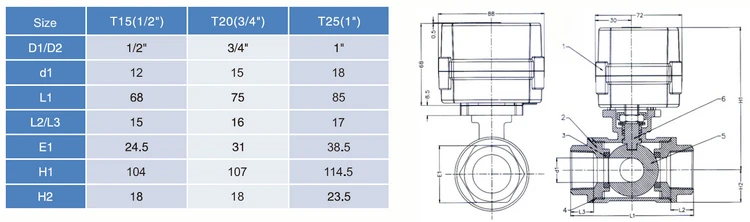

| Size Range | 1/2"~1", DN15~DN25 |
| Operating Pressure | 1.0MPa |
| Wiring Control Methods | CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR4-01, CR5-01, CR5-02, CR7-01, CR7-02, CR7-03, CR7-04 (Optional) |
| Optional Voltage | DC5V, DC12V, DC24V, AC/DC9-35V, AC110V-230V (Optional) |
| Working Current | ≤500mA |
| Open/Close Time | ≤5S |
| Life Time | 70,000 Times |
| Body Material | Stainless Steel |
| Actuator Material | Engineering Plastics |
| Sealing Material | EPDM, PTFE |
| Actuator Rotation | 90° |
| Torque Output | 2Nm |
| Ambient Temperature | -15°C~50°C |
| Liquid Temperature | 2°C~90°C |
| Connection Type | Threaded |
| Manual Override | Optional |
| Position Indicator | YES |
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam |
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
More models are offered!
Click here to ask more info about the quote and the catalog.
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
Q1. Is the sample order acceptable?
A: Yes, of course.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
