- Place of Origin:CN;GUA
- Material:Alloy
- Brand Name:COVAN Brand valve body 1/8''air solenoid valve
- Model Number:HK4V110 Type valve body 1/8''air solenoid valve
- Power:Pneumatic
- Pressure:Medium Pressure
- Port Size:1/8~1/2"
- Structure:Pilot
- Standard or Nonstandard:Standard
- Temperature of Media:Normal Temperature
- Media:air
1. Service life: 10 million cycle times.
2. The bodies are mirror finished and hardending treated.
3. Equipped with imported oil seals with smaller fricion and longer service life.
4. With imported coils, low power consumption, speedy response.
5.Capable of long service time for 18 months
Direct Manufacturer air solenoid valve

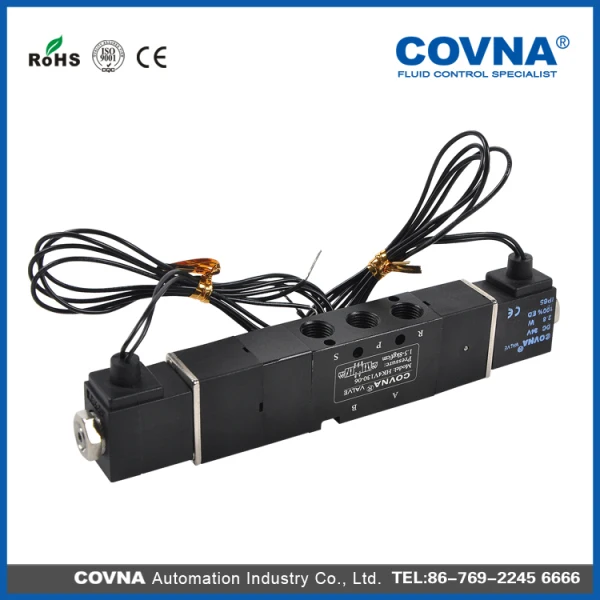

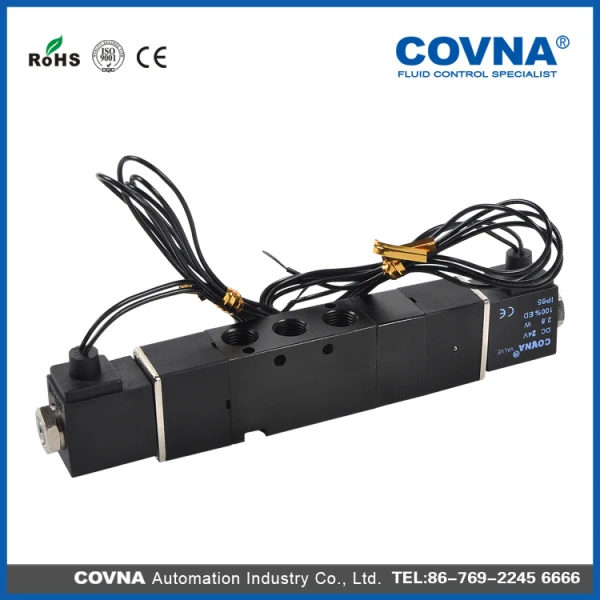

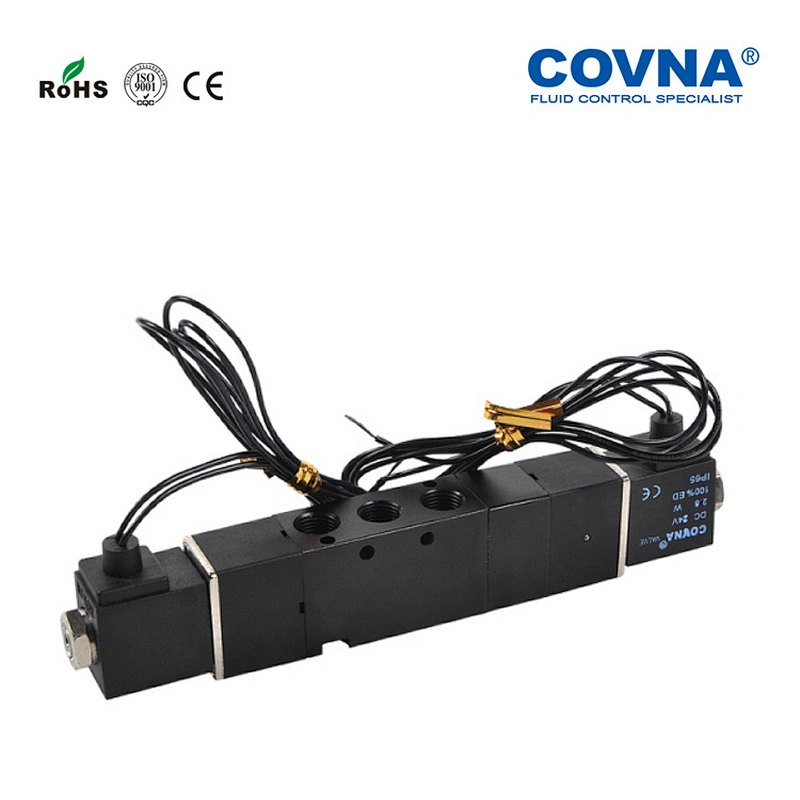

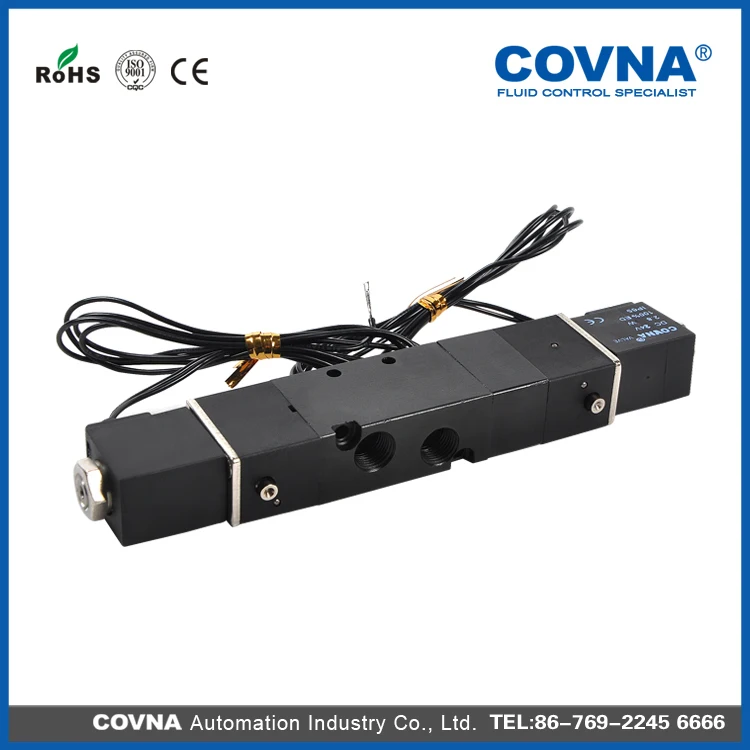

valve body 1/8''air solenoid valve
| Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 | |||
| Position and Way NO. | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | |||||||||
| Port size | Air inlet=Air outlet=Air exhaust= M5*0.8 | Air inlet=Air outlet= Air exhaust= PT1/8 | |||||||||||
| Effective area | 10mm2 (CV=0.56) | 12mm2 (CV=0.67) | |||||||||||
| Air Temperature | -5~50°C (23~140°F) | ||||||||||||
| Working Medium | 40 Micron Filtered Air | ||||||||||||
| Motion Pattern | Inner guid type | ||||||||||||
| Max. proof pressure | 1.2Mpa (170Psi) | ||||||||||||
| Power Consumption | AC:6VA DC: 3W | ||||||||||||
| Protect class | IP65 (DIN40050) | ||||||||||||
| Wiring Form | Direct lead wire or connector | ||||||||||||
| Max. action frequency* | 5 cycles/second | ||||||||||||
| Coil insulation | Class B | ||||||||||||
| Voltage Range | —10%~+10% | ||||||||||||
| Shortest Excitation Time | Below 0.05second | ||||||||||||
1.Warranty
Warranty 1 year
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.Package
Our package method is in perfect condition, or according customized.
3.Payment
MOQ: Customer design
We usually accept T/T(wire transfer), Western Union
Trade Currency: USD or RMB
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight
4.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 10-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
5.Contact information
Call the COVNA Customer Team:
We are here for you 24 hours a day-365 days a year.
6.Email us:
We look forward to helping you with your inquiry. We respond to email to message
in the order that they are received, and will respond to your email as quickly as possible.
Connect With Live Help:
Ask your question right now with trade manager.
Certifications
We have CE and RoHS certificate,the ISO9001 certificate is under processing.
Company profile
We are the factory of pneumatic and hydraulic parts in China. We are producing
high quality and general quality, do not produce low quality items.Hope to do long
business with you in the near future.
We are dealing of pneumatic valves , water valves , air solenoid valves ,air cylinders,
airunit ,treatment unit . Filter , regulator ,Lubricator and so on.
Factory view
Office view
FAQs
1. Q: I want to return my purchase! What do I do?
A: If the product quality problems, we will help you to change it.
2. Q: Do you have a catalog?
A: No. Currently, we have a ‘virtual’ catalog. In order to ensure that our customers have
access to the most Current styles, prices, sizes, and overall selection, we do not publish
a catalog that you may purchase directly from us. Plus, with all the styles that we carry,
a catalog would be as big as a phone book! If there is a particular valve or style of valve
that you are interested in, please feel free to contact us and we will be happy to help you
locate it.
3. Q: Are you a manufacturer or trading company?
A: We are a manufacturer of different kinds of valves.
