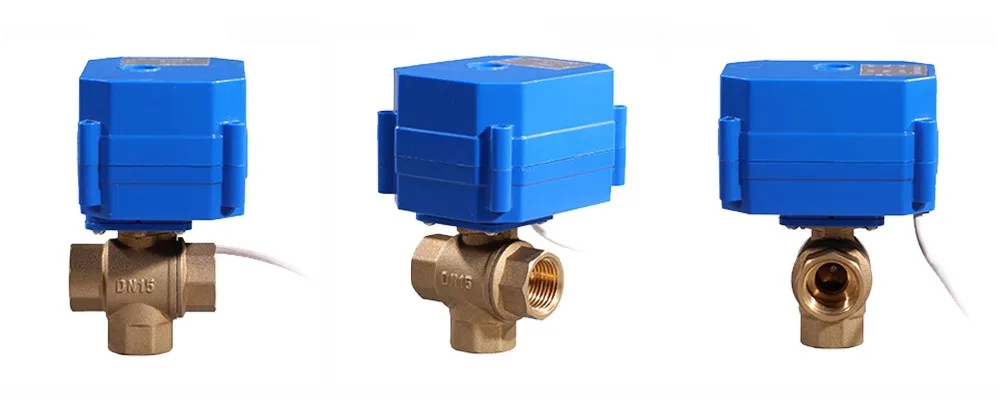

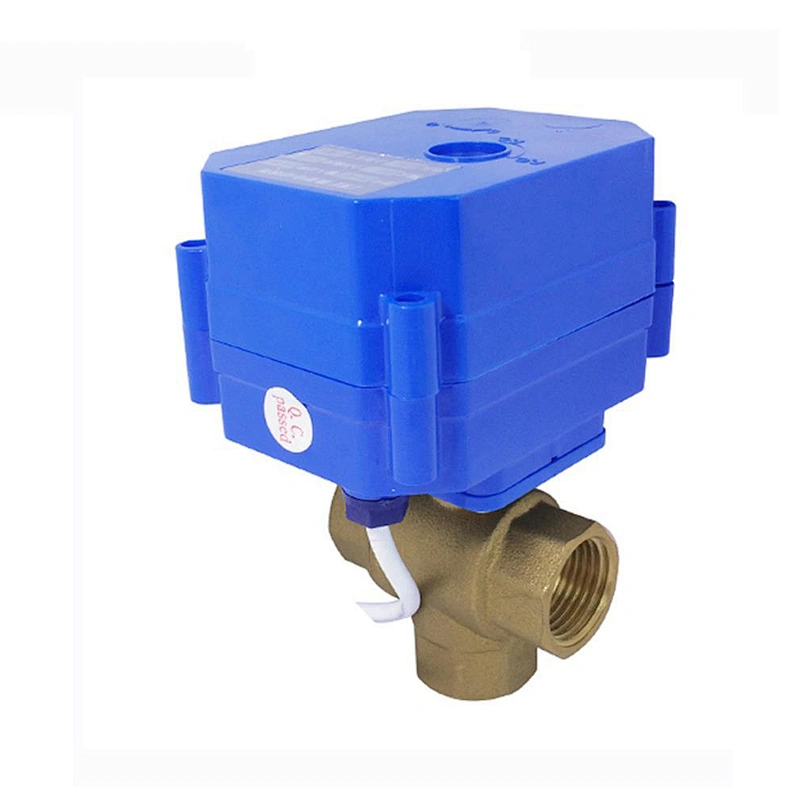

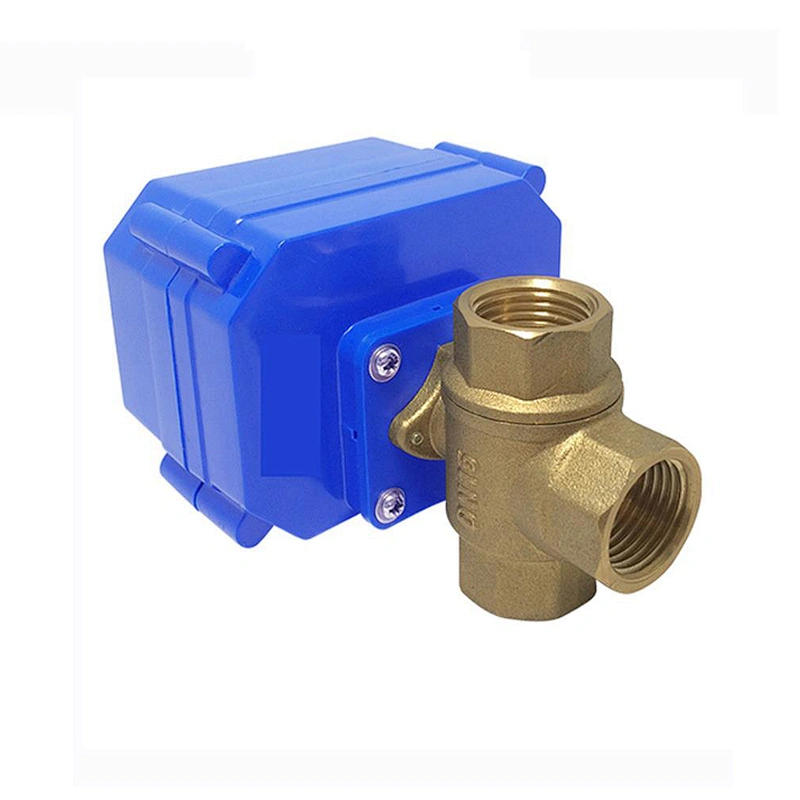

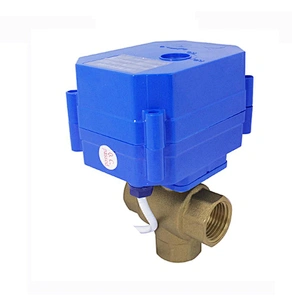

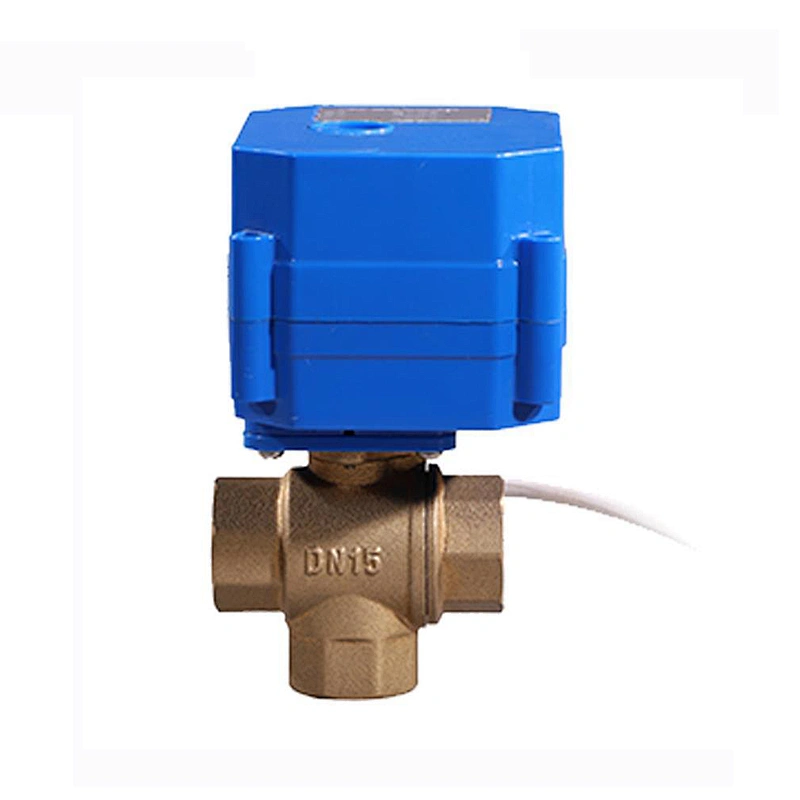

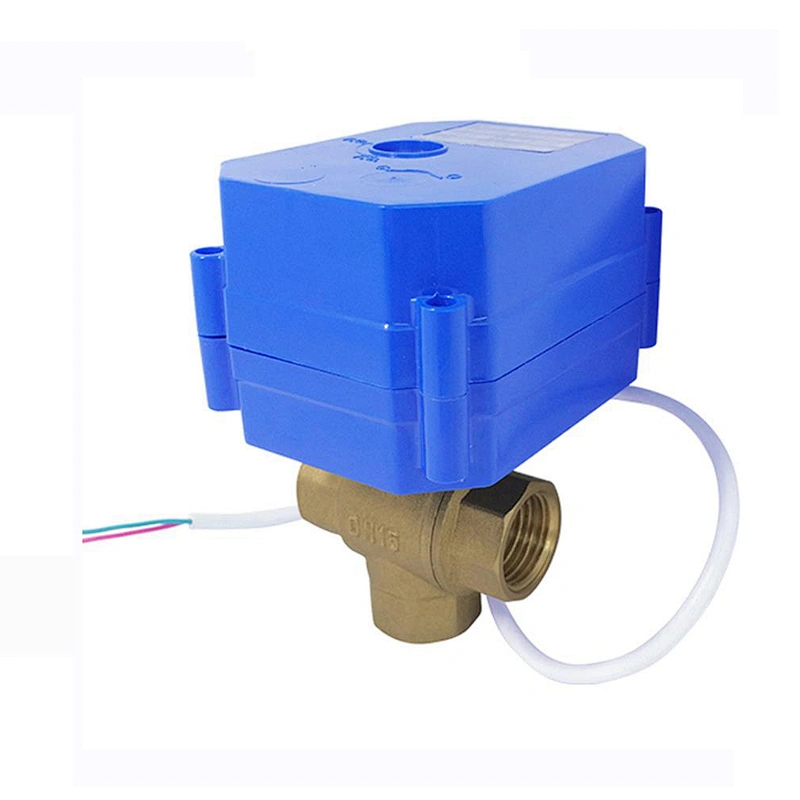

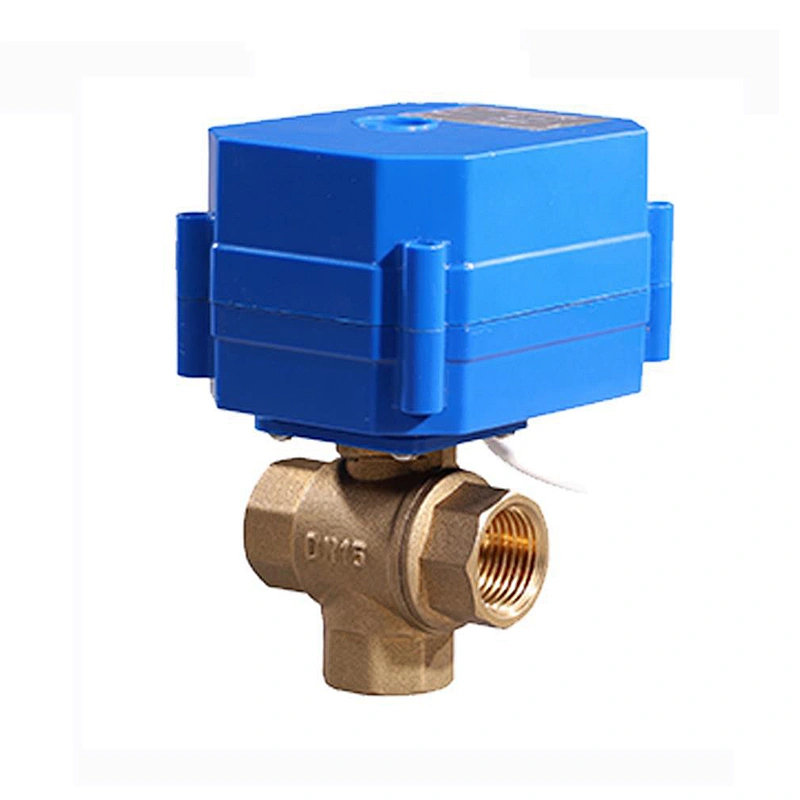

COVNA CWX 15Q 3-Way Brass Threaded Motorized Flow Control Ball Valve

COVNA CWX 15Q 3-Way Brass Threaded Motorized Flow Control Ball Valve

Model NO.: HK63-H-T Ball Valve
Price:: USD 86.50-104.90 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Brass
Temperature of Media:Normal Temperature
Pressure:High Pressure
Media:Water
Structure:Ball
Power:Motorized
Brand Name:COVNA
Model Number:HK63-H-T Ball Valve
Port Size:1/2"~1", DN15~DN25

Specification

Features:

1. Full copper gear design, high-precision and high torque output
2. Compact design and structure
3. Low power consumption, energy-saving
4. Can be mounted in any direction
5. Good sealing performance, IP67 protection class

Item	COVNA CWX 15Q 3-Way Brass Threaded Motorized Flow Control Ball Valve
Product Size	1/2"~1", DN15~DN25
Max. Working Pressure	1.0MPa
Media	Water, Air, Gas, Oil, Liquid
Optional Voltage	DC5V, DC12V, DC24V, AC/DC9-35V, AC110V-230V (Optional)
Wiring Control Methods	CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR4-01, CR5-01, CR5-02, CR7-01, CR7-02, CR7-03, CR7-04 (Optional)
Working Current	≤500mA
Open/Close Time	≤5S
Life Time	70,000 Times
Valve Material	Brass
Actuator Material	Engineering Plastics
Sealing Material	EPDM & PTFE
Actuator Rotation	90°
Torque Output	2Nm
Ambient Temperature	-15°C~50°C
Liquid Temperature	2°C~90°C
Manual Override	Optional
Position Indicator	YES
Protection Class	IP67
Application	Petrochemical, Power, Environmental Protection and Large-Scale Intelligent Water Meter Control and Other Fields

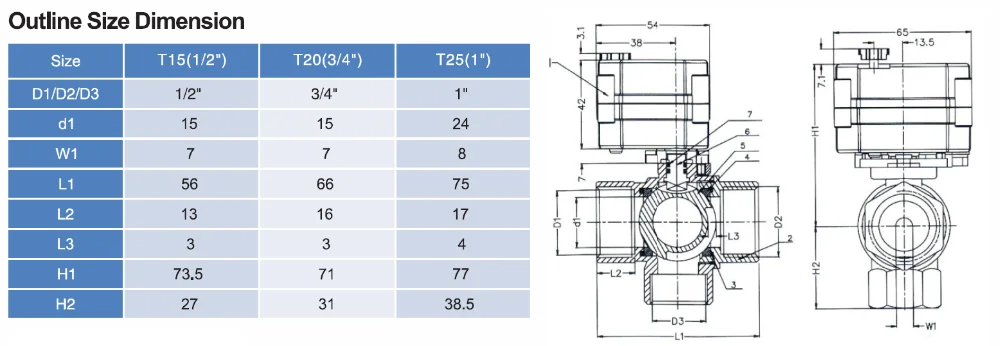

Dimension:

Flow Diagram

Flow Diagram

T Pattern

L Pattern

Electric Actuator

Wiring Diagram

Wiring Diagram

RD connect with positive, BK connect with negative, the valve closed, the actuator automatically power off after in place, the valve remains fully closed position.

BK connect with positive, RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position.

Suitable Working Voltage: DC12-24V.

Exceeding the working voltage is forbidden.

When the SW is closed , the valve open, the actuator automatically power off after in place.

When the SW is open, the valve closed, the actuator automatically power off after in place.

Suitable Working Voltage: DC12-24V.

Exceeding the working voltage is forbidden.
