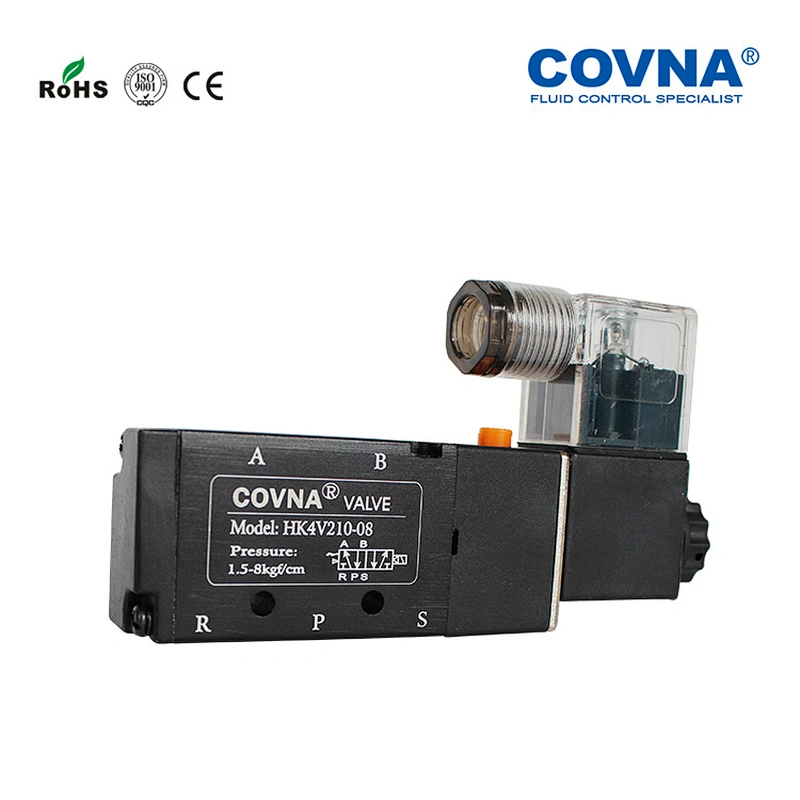

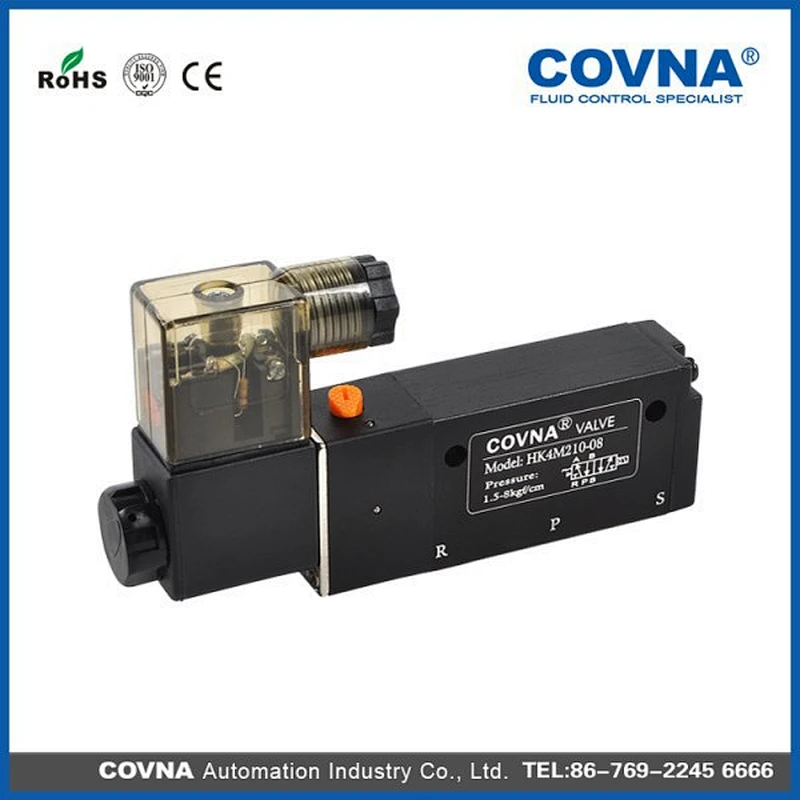

COVNA 5 Way 4V Series Solenoid Valve with Single/Double Coil

Quantity:

Valve Characteristic

1. Service life: 10 million cycle times.

2. The bodies are mirror finished and hardending treated.

3. Equipped with imported oil seals with smaller fricion and longer service life.

4. With imported coils, low power consumption, speedy response.

5.Capable of long service time for 18 months

Model	4V230C-08
Position and Way No.	Three-position Five-way
Effective Sectional Area	12 mm²
Working Medium	40 Micron Filtered Air
Joint Pipe Bore	Air Inlet=Air Outlet=Exhaust=G1/8"
Motion Pattern	Inner Guide Type
Working-pressure	0.15~0.8Mpa
Max.Pressure Resistance	1.2Mpa
Operating Temperature	-5~50°C
Voltage Range	-10%~+10%
Protect Class	IP65
Power Consumption	AC:2.5VA DC:2.5W
Insulation	F Class
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5Cycle/sec
Shortest Excitation Time	0.05Second

air pneumatic Solenoid Valve

Media: air

Medium Temperature: 0°C~55°C

Pressure: 0.0~0.8Mpa

Material: Aluminum

Port size: 1/8"~1/4″

Orifice: 2mm
