- Place of Origin:CN
- Application:General
- Material:Brass
- Temperature of Media:High Temperature
- Pressure:Medium Pressure
- Media:Water
- Structure:Ball
- Power:Electric Control
- Brand Name:COVNA
- Model Number:Electric Control Ball Valve
- Port Size:1/2"-1"

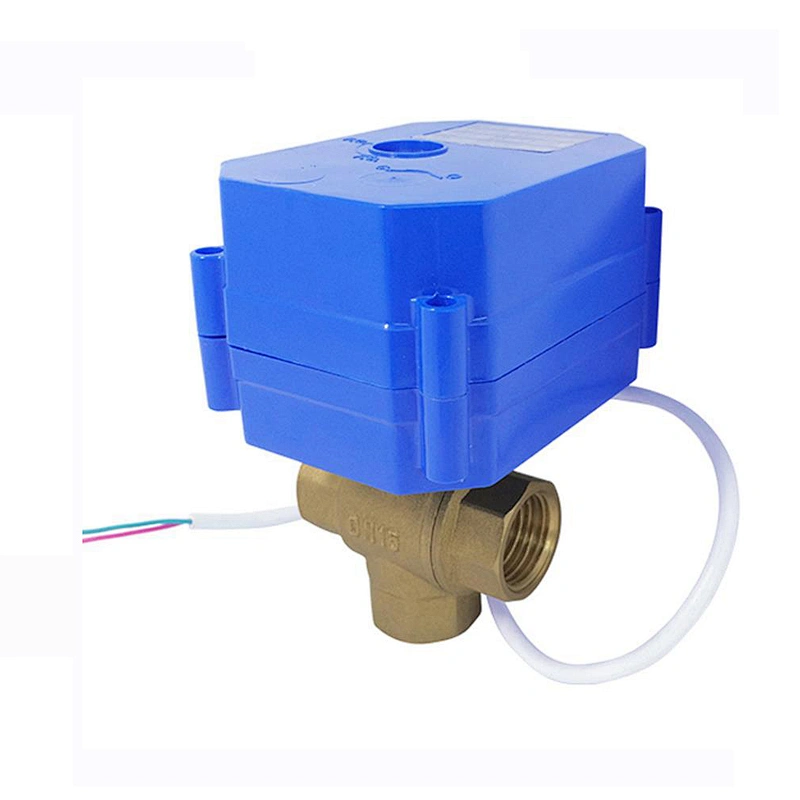

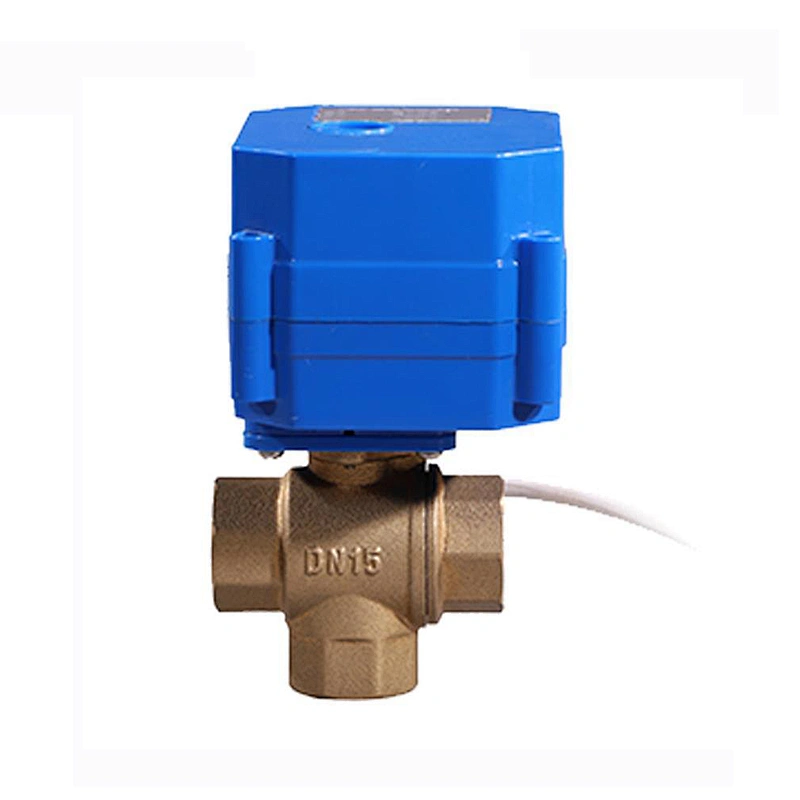

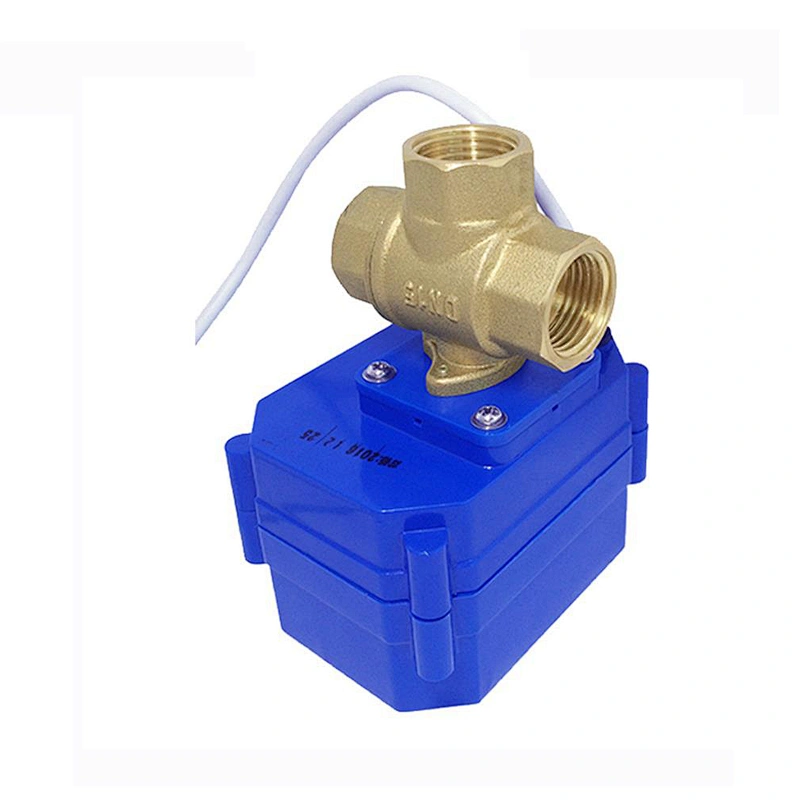

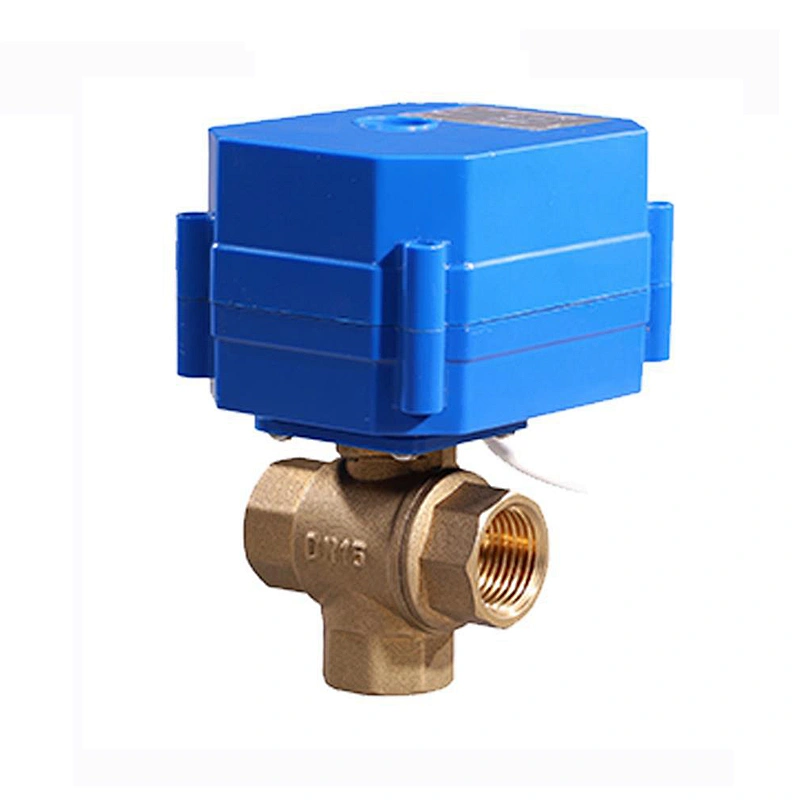

3 Way Electric Control Ball Valve for Automatic Control System
Product Description
Technical Parameters
| Product Size | NPT1/2", NPT/BSP 3/4", NPT 1"(Opitonal) |
| Max. Working Pressure | 1.0MPa |
| Circulation Medium | Fluid, Air |
| Rated Voltage | DC5V, DC12V, DC24V, AC/DC9-35V, AC110V-230V (Optional) |
| Wiring Control Methods | CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR3-04, CR5-01, CR7-01, CR7-02 (Optional) |
| Working Current | ≤500mA |
| Open/Close Time | ≤5 Sec |
| Life time | 70,000 Times |
| Valve Body Material | Brass, Nickel plated Brass, 304 Stainless steel (Optional) |
| Actuator Material | Engineering Plastics |
| Sealing Material | EPDM & PTFE |
| Actuator Rotation | 90° |
| Max. Torque Output | 2N.M |
| Cable Length | 0.5m, 1.5m (Optional) |
| Ambient Temperature | -15℃~50℃ |
| Liquid Temperature | 2℃~90℃ |
| Manual Override | No |
| Indicator | Yes |
| Protection Class | IP67 |
Optional Wiring Control
| Model | Line Control | Working Voltage | Max. Torque |
| HK15-S2-C | CR2-01 | DC5V, DC12V, DC24V | 2N·M |
| HK15-S2-C | CR2-02 | AC/DC9-24V, AC/DC9-35V, AC110V-230V | 2N·M |
| HK15-S2-C | CR3-01 | DC5V, DC12V, DC24 | 2N·M |
| HK15-S2-C | CR3-02 | DC9-35V | 2N·M |
| HK15-S2-C | CR3-03 | AC/DC9-35V | 2N·M |
| HK15-S2-C | CR3-04 | DC5V, DC12V, DC24V, AC/DC9-35V | 2N·M |
| HK15-S2-C | CR5-01 | DC5V, DC12V, DC24V | 2N·M |
| HK15-S2-C | CR5-02 | AC/DC9-24V, AC/DC9-35V, AC110V-230V | 2N·M |
| HK15-S2-C | CR7-01 | DC9V-35V | 2N·M |
| HK15-S2-C | CR7-02 | DC5V, DC12V, DC24V, AC/DC9-35V | 2N·M |
| HK15-S2-C | CR7-03 | DC12V, DC24V | 2N·M |
Optional Function for Actuator

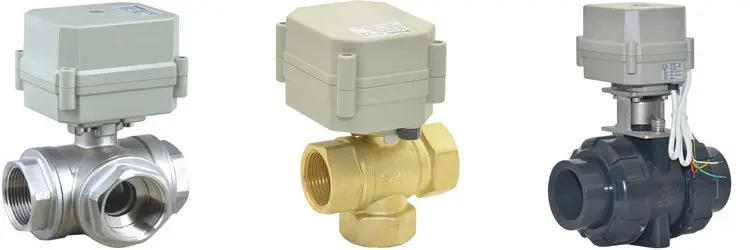

Related Products

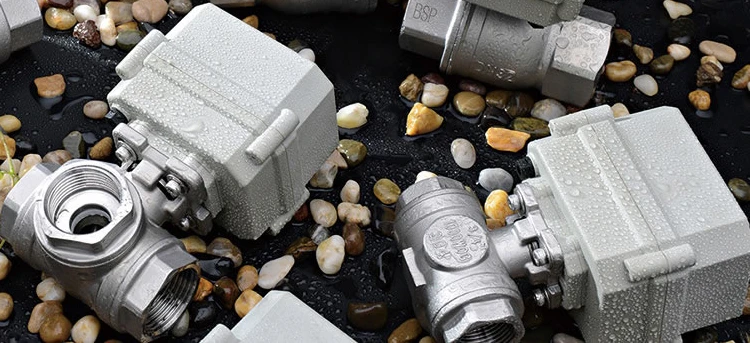

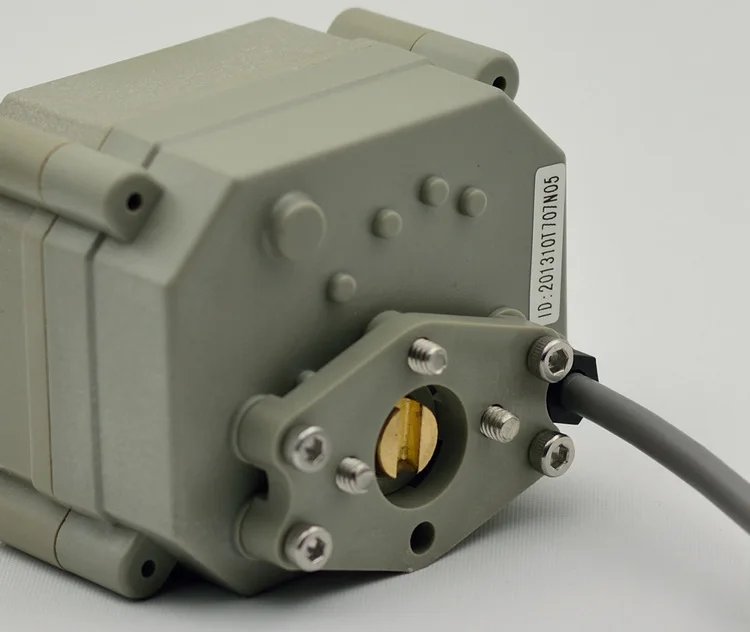

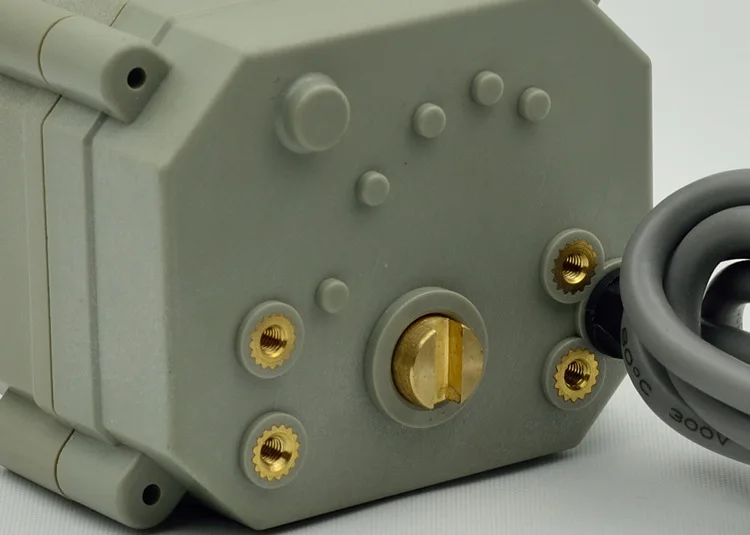

Detail Images

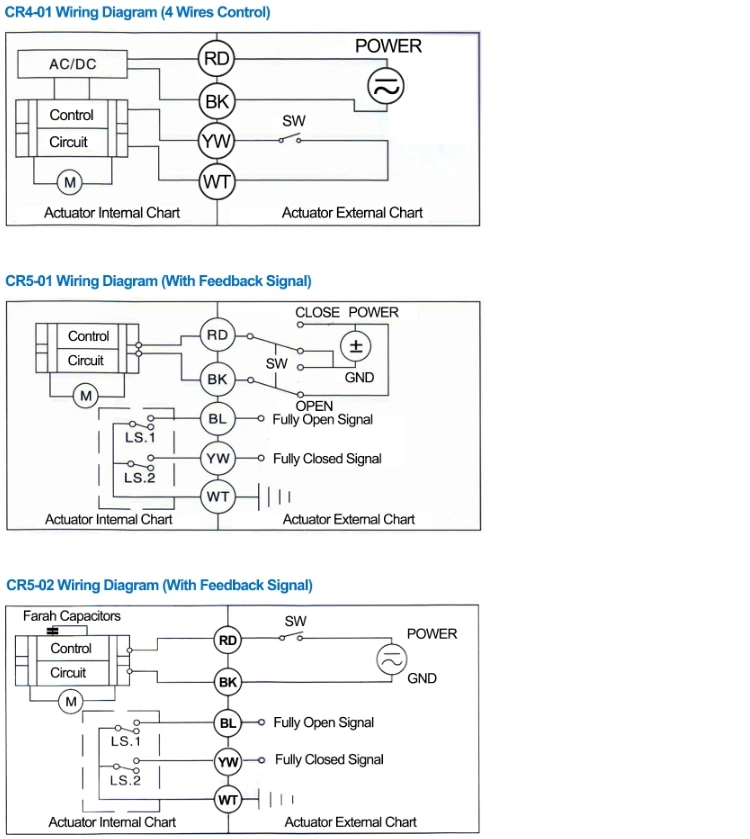

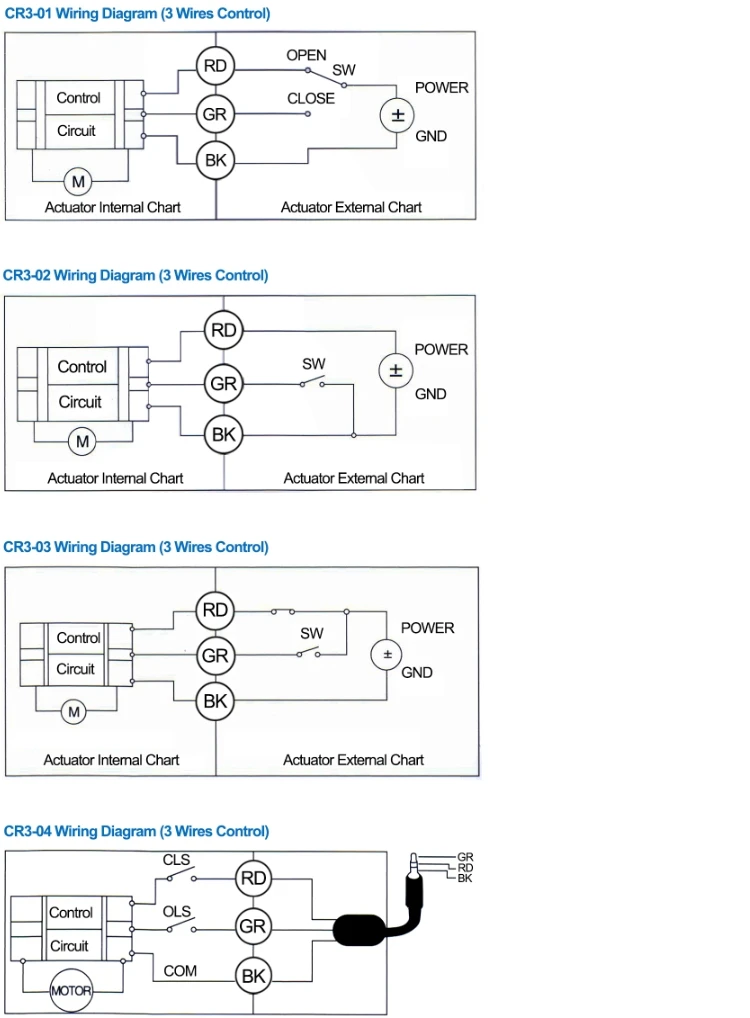

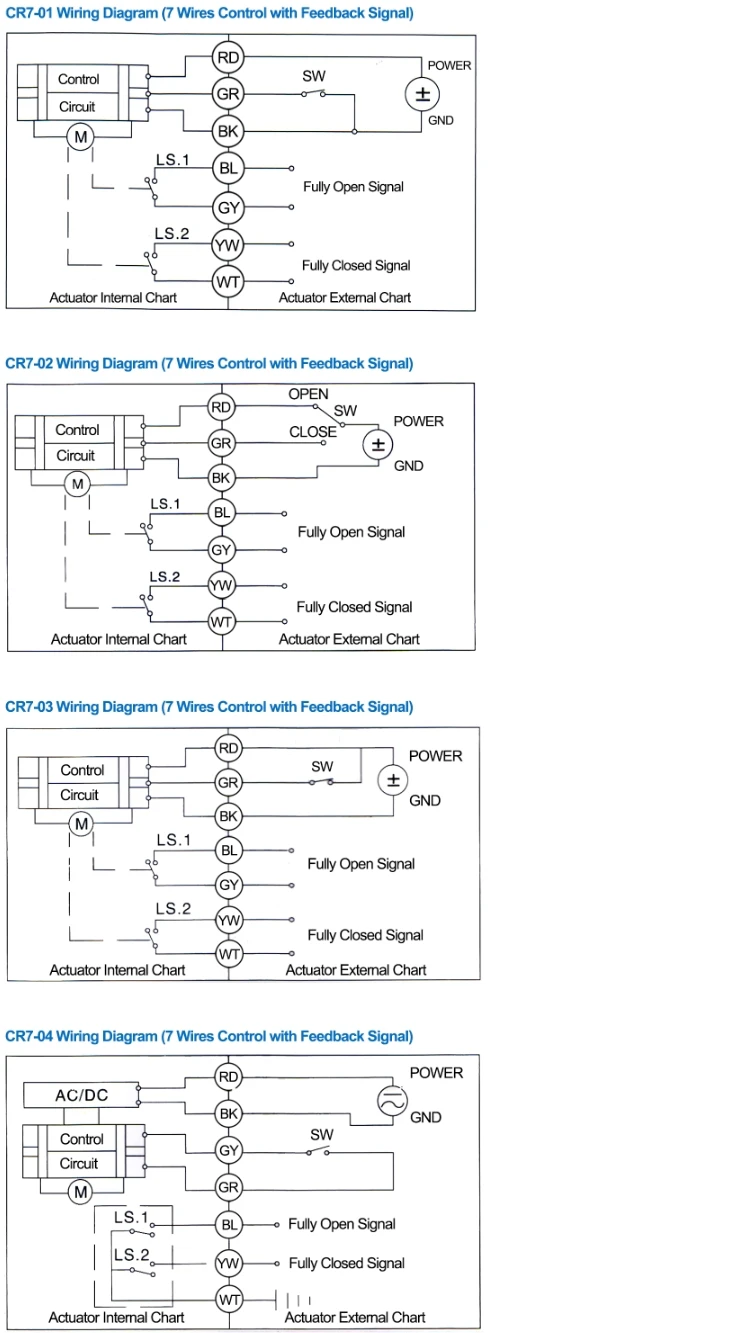

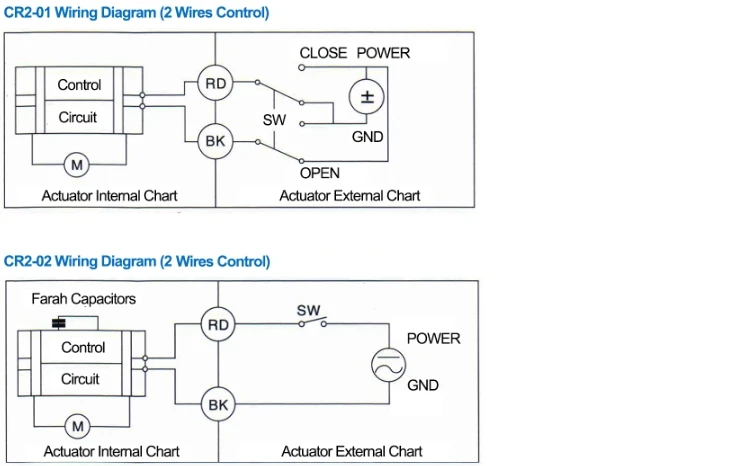

Line Control

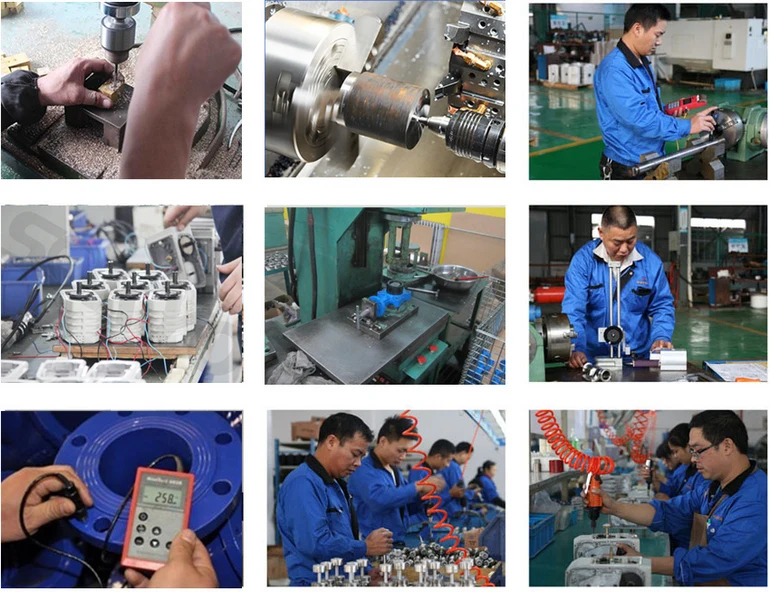

Workshop

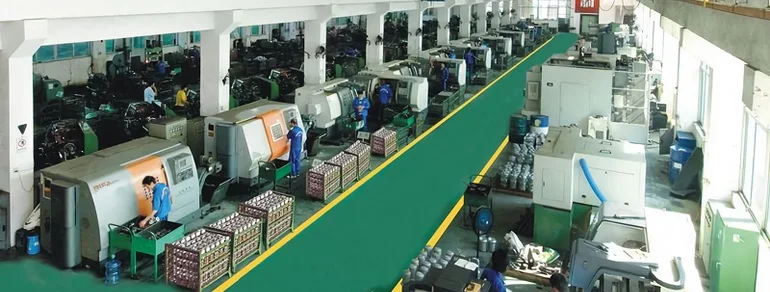

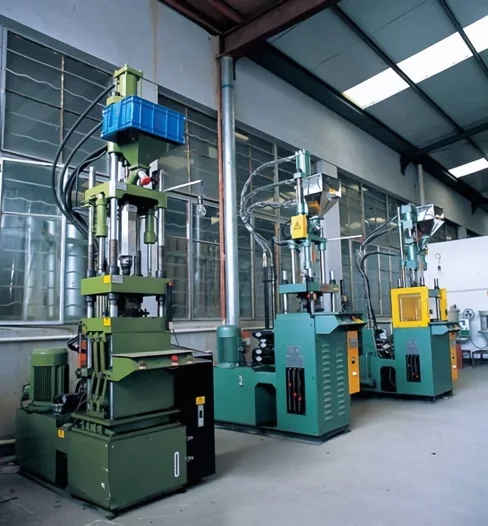

Company Information
