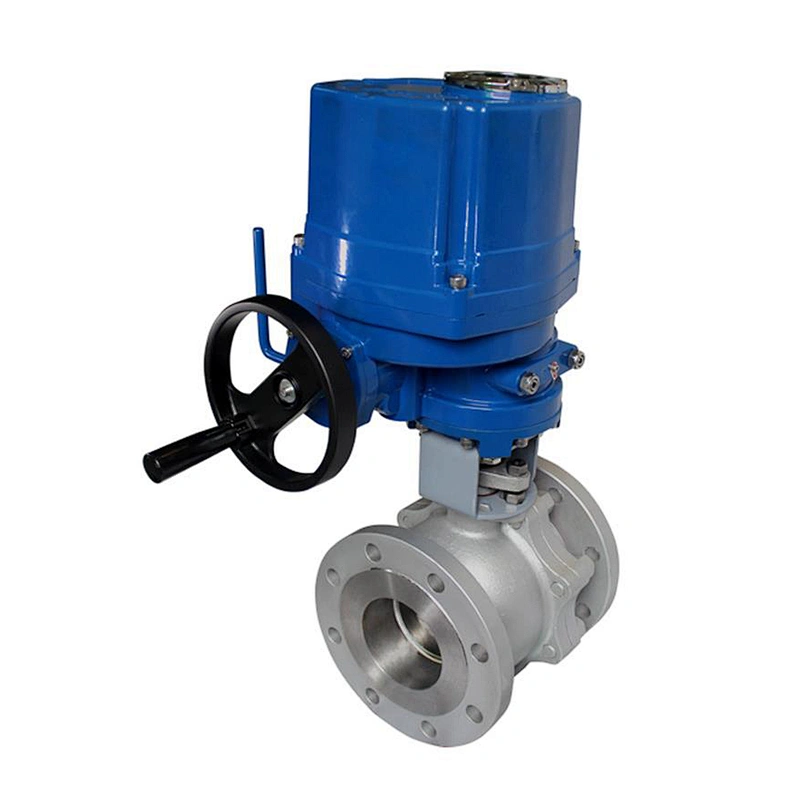

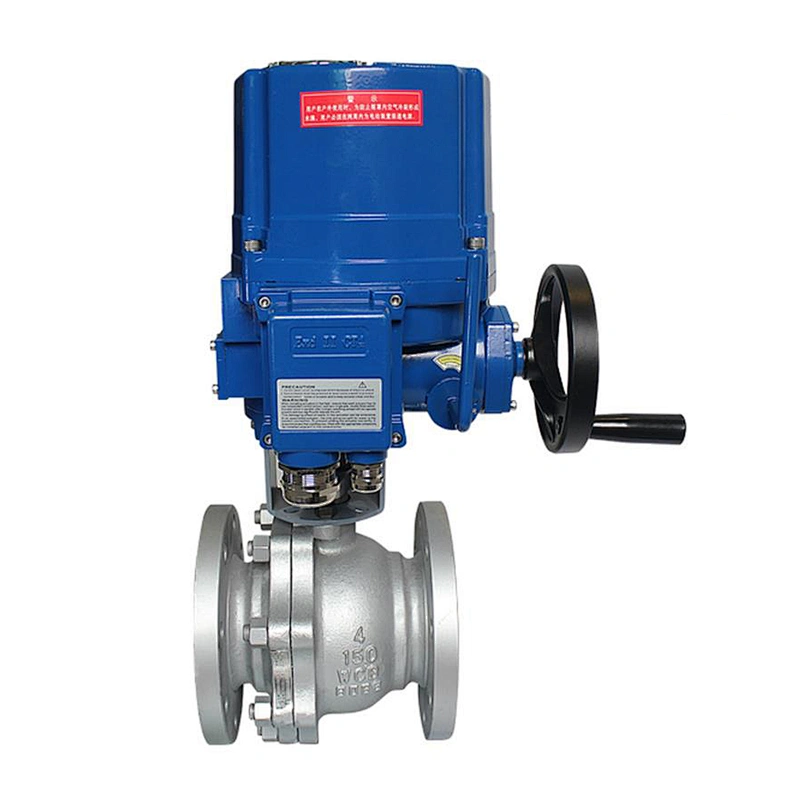

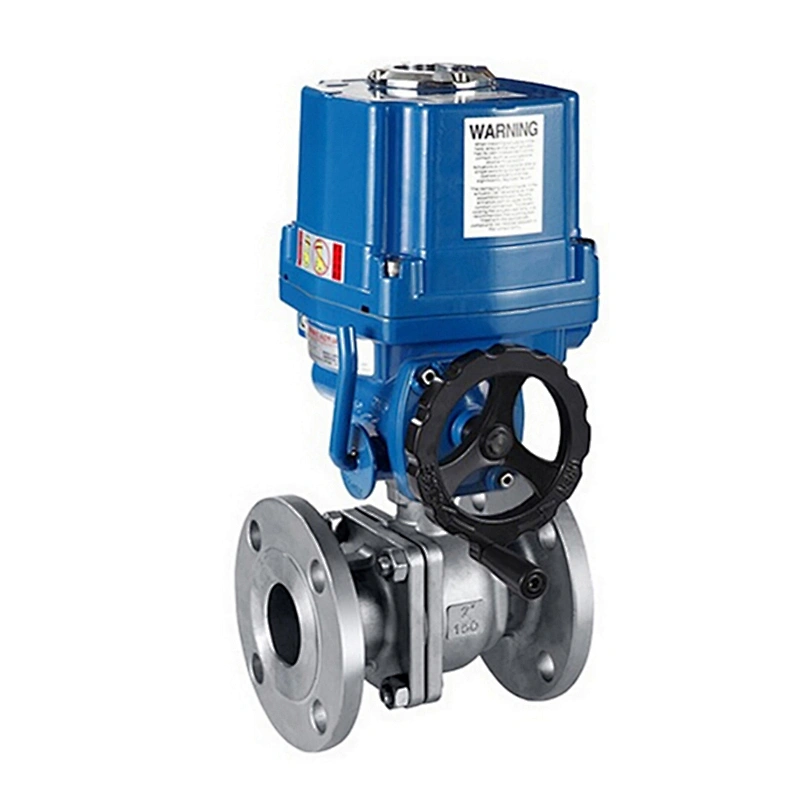

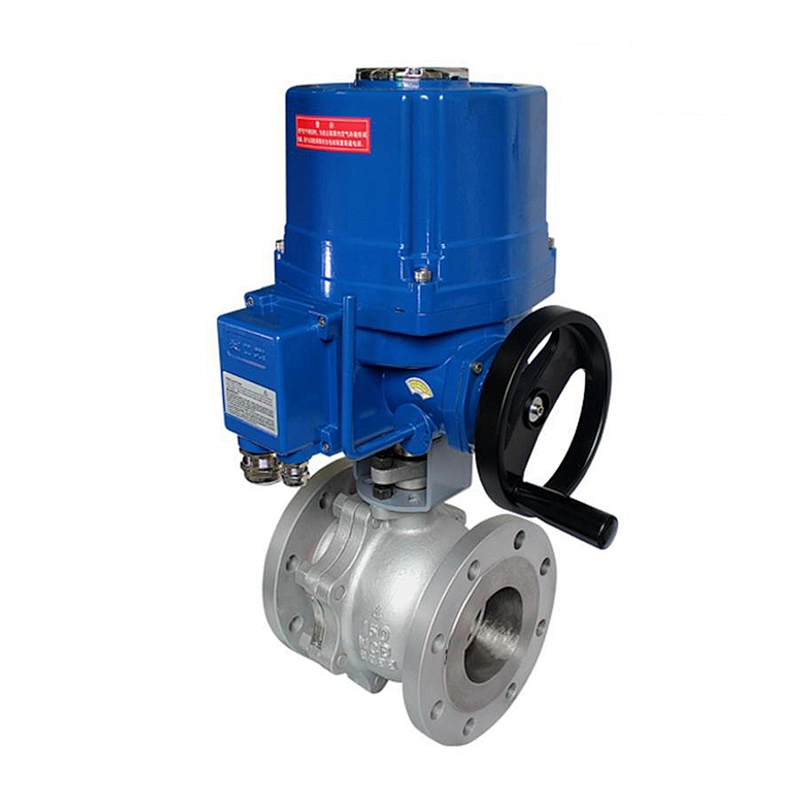

DN50 Motorized Water Ball Valve with F46 Seat Sealing
• This valve is operated by an electric signal coming from the electric motor to open, close, or stop the valve in the process of operation.
• Electric actuators feature visual and electrical valve position indication, manual override, and weatherproof enclosures.
• The position limit switch or torque switch signals stop at full open or close.
• The electric motor actuator is applied mainly to large size or high pressure valves because of greater torque over pneumatic actuator.
• This type has advantages of simple wiring and good response.
• In addition, a remote control is available, therefore the valve can be applied to a dangerous or limited space where it is difficult to access.
| DN50 LQ Series Explosion Proof Motorized Water Ball Valve with F46 Seat Sealing | |
| Nominal Diameter | DN15-DN200 |
| Nominal Pressure | PN1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa |
| Max. Pressure | 1000 PSI |
| End Connection | Flange |
| Drive Mode | Motor Operated |
| Supply Power | AC 220V, AC 380V, Special Voltage Like DC 24V Can be Customized |
| Body Material | Cast Iron |
| Core Material | SS304, SS316 |
| Stem Material | SS304, SS316 |
| Actuator Type | ON/OFF Type, Regulated Type |
| Actuator Switch | 0~90° |
| Action Time | 28S |
| Actuator Material | Aluminum Alloy |
| Seat Sealing | F46 |
| Applicable Medium: Water, Oil, Gas, Steam, Acid-Base Medium and Some Corrosive Media, etc | |
General Information on Elastomer Materials
F46
This valve is coated with F46 material. All the parts contacting with the liquid are F46, so it can be used in any concentrations in the range of -50°~180 °C for a long time.
| Types | GB | ASME | DIN | JIS |
| Ball Valve Series | GB/T12237 | API 6D, API 608 | DIN 3357 | - |
| Welding End Standard | GB/T12224 | ASME B16.25 | DIN 3239 | - |
| Pressure-Temperature Rating | GB/T12224 | ASME B16.34 | DIN 2401 | JIS B2201 |
| Inspection & Pressure Testing | GB 13927, JB9092 | API 598, API 6D, API 600 | DIN 3230 | JIS B2003 |

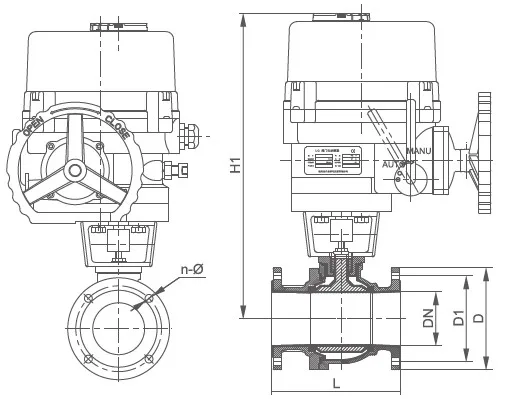

| Size | Actuator | D1 | D | H1 | L | n-Φ | |
| mm | inch | ||||||
| 15 | 1/2" | LQ1-10 | 65 | 95 | 328 | 140 | 4-Φ14 |
| 20 | 3/4" | 75 | 105 | 330 | 140 | 4-Φ14 | |
| 25 | 1" | 85 | 115 | 340 | 150 | 4-Φ14 | |
| 32 | 1-1/4" | 100 | 140 | 345 | 165 | 4-Φ18 | |
| 40 | 1-1/2" | 110 | 150 | 377 | 180 | 4-Φ18 | |
| 50 | 2" | 125 | 165 | 388 | 200 | 4-Φ18 | |
| 65 | 2-1/2" | LQ2-20 | 145 | 185 | 446 | 220 | 4-Φ18 |
| 80 | 3" | 160 | 200 | 464 | 250 | 8-Φ18 | |
| 100 | 4" | LQ3-50 | 180 | 220 | 536 | 280 | 8-Φ18 |
| 120 | 5" | LQ4-110 | 210 | 250 | 628 | 320 | 8-Φ18 |
| 150 | 6" | 240 | 285 | 643 | 360 | 8-Φ23 | |
| 200 | 8" | LQ4JS-200 | 295 | 340 | 785 | 400 | 12-Φ23 |
*NOTE: Specification subject to change without notice.

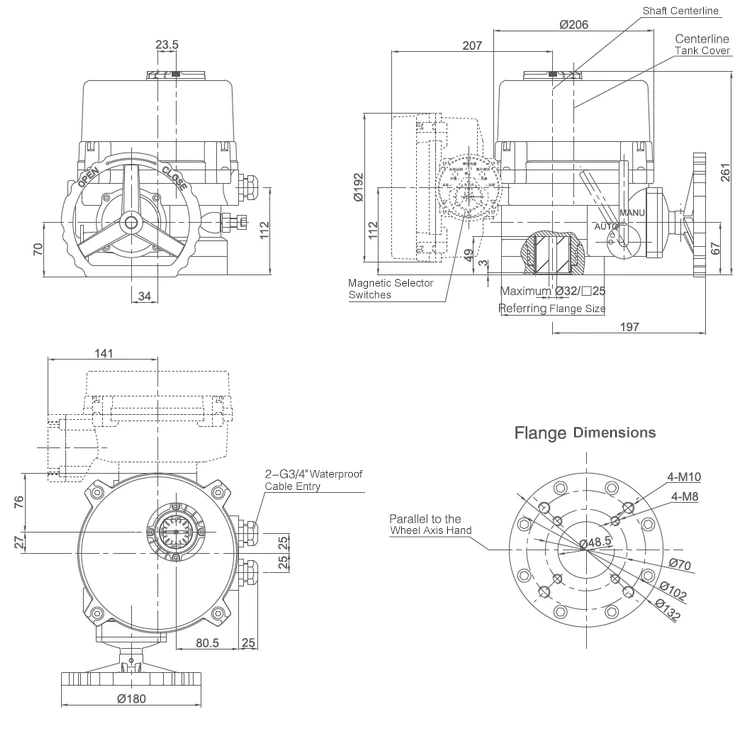

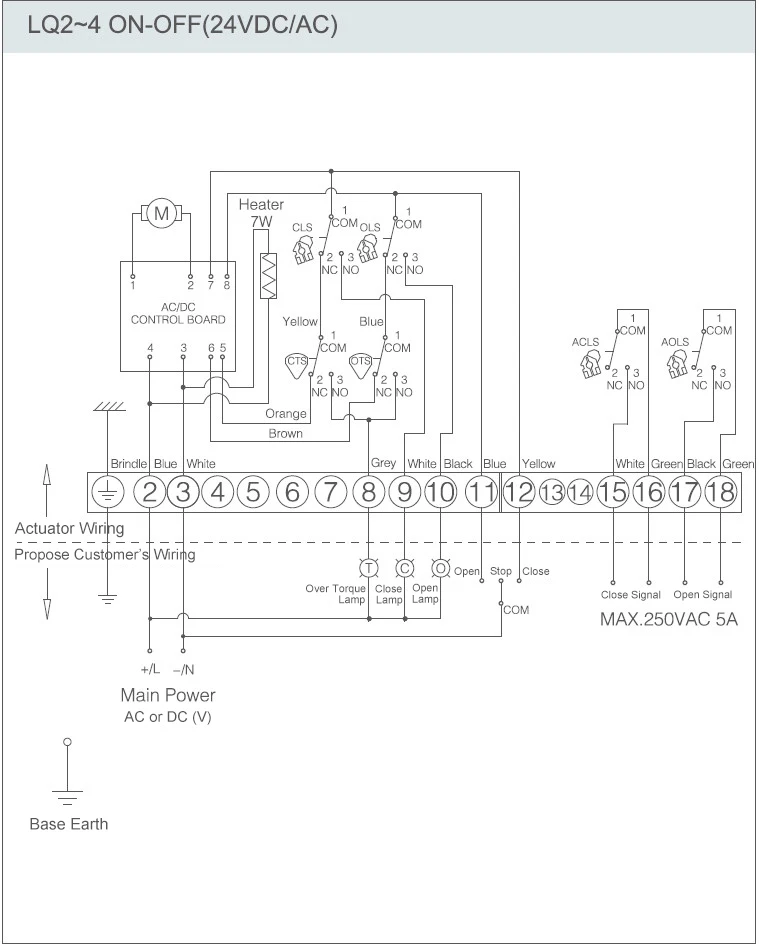

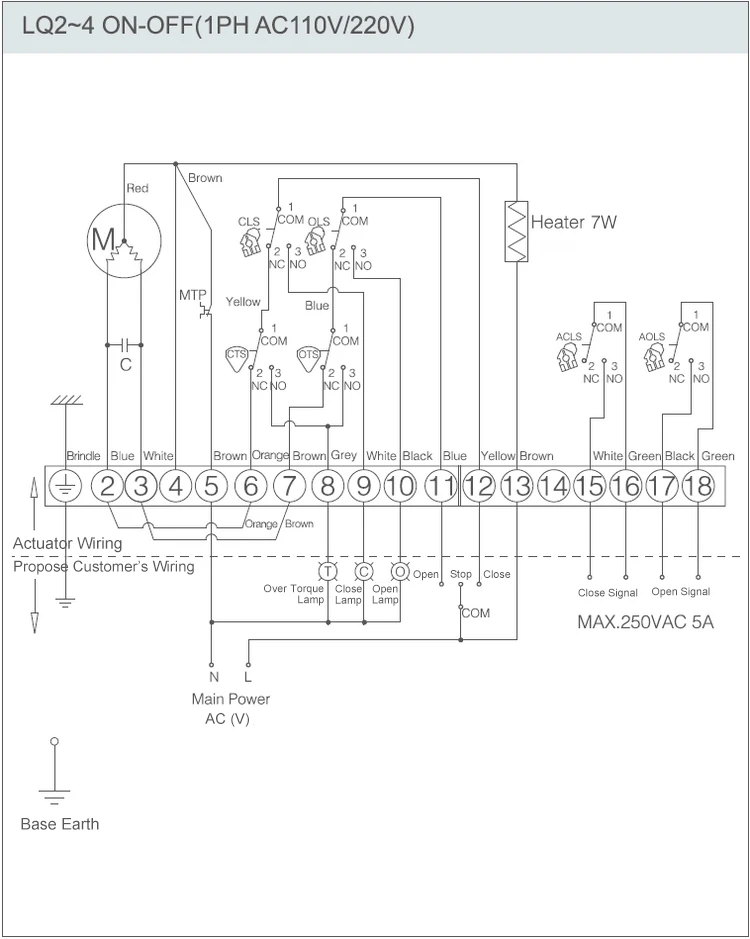

| Parameters | Output Torque | 90° Action Time | Motor Power | Rated Current | Power | Circle Numbers of Handwheel |
| LQ2-16 | 160Nm | 28S | 40W | 1.45A | AC110V | 12 |
| 0.6A | AC220V | |||||
| 0.25A | AC380V | |||||
| 0.3A | AC440V | |||||
| 2.0A | DC24V | |||||
| LQ2-20 | 200Nm | 28S | 40W | 1.5A | AC110V | 12 |
| 0.6A | AC220V | |||||
| 0.3A | AC380V | |||||
| 0.35A | AC440V | |||||
| 2.2A | DC24V | |||||
| LQ2-24 | 240Nm | 28S | 45W | 1.6A | AC110V | 12 |
| 0.7A | AC220V | |||||
| 0.35A | AC380V | |||||
| 0.39A | AC440V | |||||
| 2.8A | DC24V | |||||
| Shell Material | Aluminum Die-Casting Components | |||||
| Position Limiting | Mechanical Limit, Overtorque Protection | |||||
| Ambient Temperature | -20°C~70°C | |||||
| Ambient Humidity | Relative Humidity>90% (25%) | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Voltage Resistance Class | AC220V: 1500V; AC380V: 2000V (1 Min) | |||||
| Protection Class | IP67 | |||||
| Optional Function | Explosion Proof, Precision Potentiometer, Overtorque Protection, Overheat Protection | |||||
