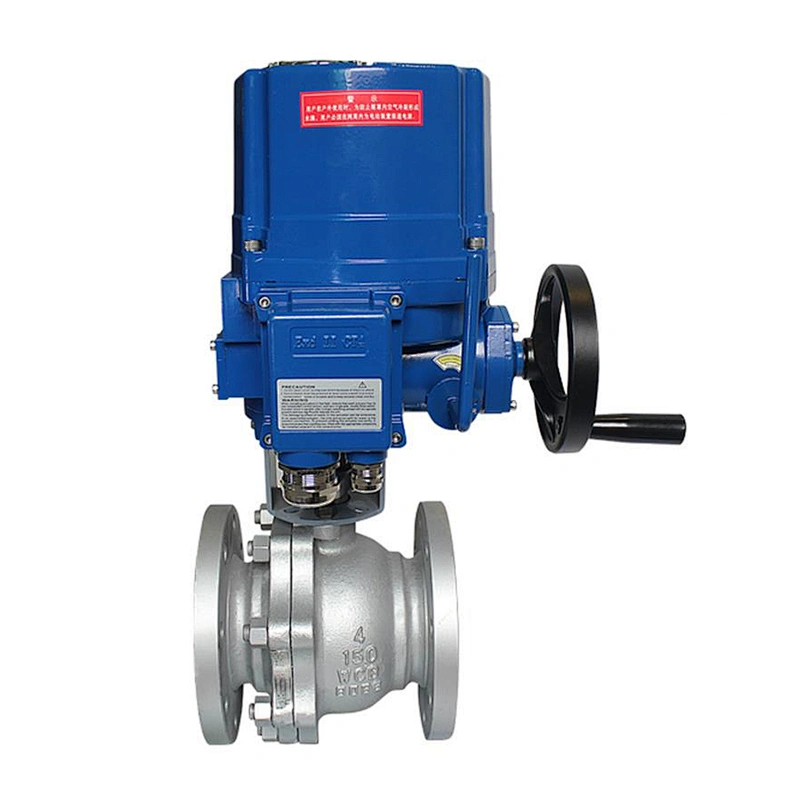

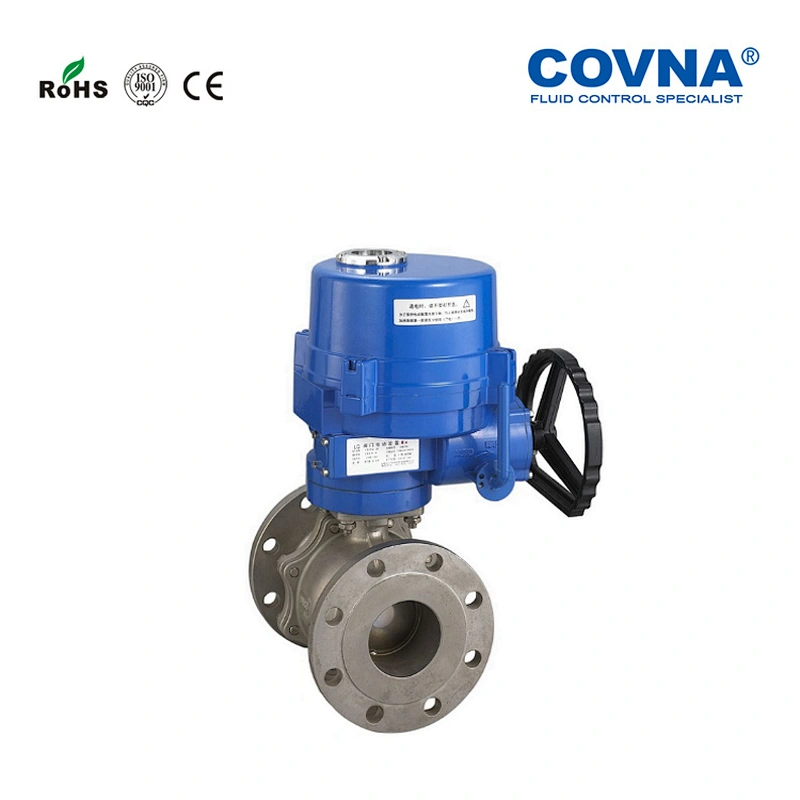

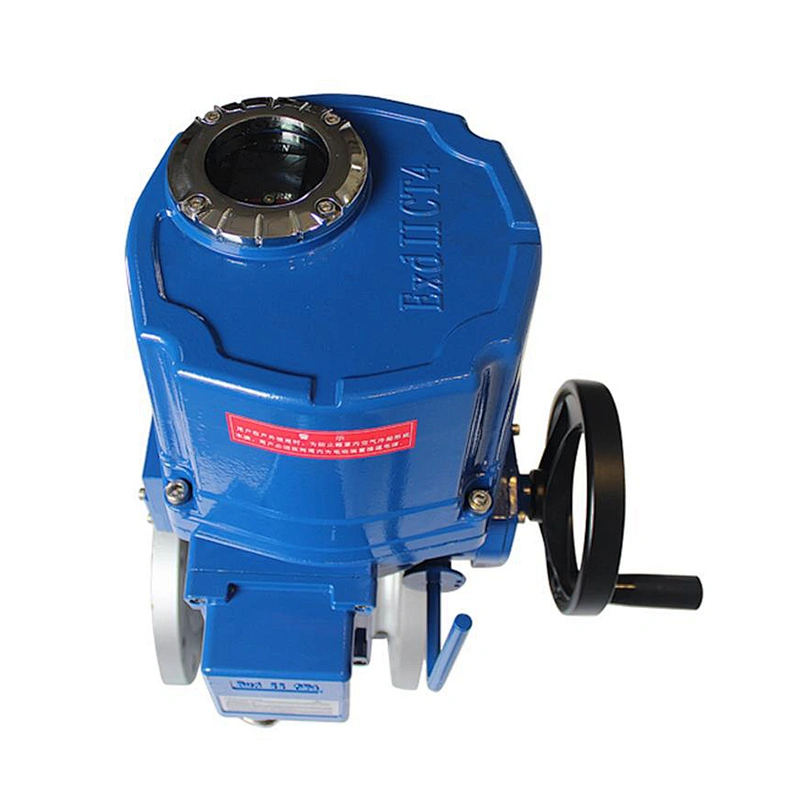

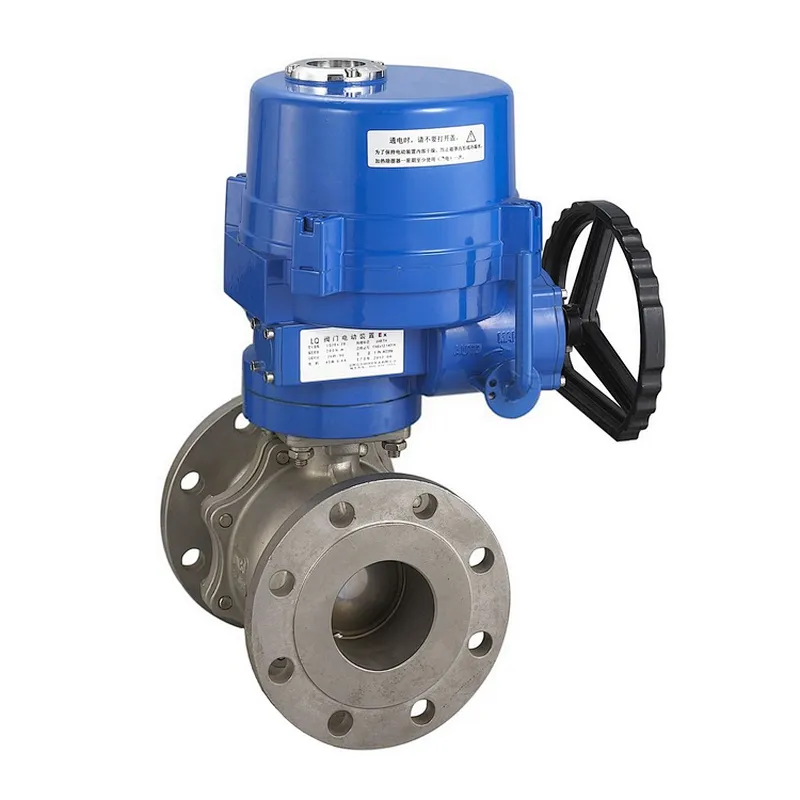

Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel

Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve With Manual Wheel

Model NO.
HK60-EX-F Motorized Ball Valve
Price:
USD 252.00-288.00 / set
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
10000 set / Month
Country of Origin
Shenzhen
Quantity:
  • Place of Origin:CN;GUA
  • Application:General
  • Temperature of Media:Normal Temperature
  • Media:Water
  • Structure:Ball
  • Power:Motor Operated
  • Brand Name:COVNA
  • Model Number:HK60-EX-F Motorized Ball Valve
  • Port Size:1/2"to 6"
Specification

COMPACT STRUCTURE

HIGH ACCURACY

WATER-PROOF

LONG SERVICE LIFE

Item
Explosion Proof for Gas Oil Electric Motorized actuated Flange Ball Valve
Applicable Standards
GB, DIN, ANSI, ASME, JIS, API
Size Range
DN15 to DN150, 1/2"to 6"
Operating Pressure
Medium Pressure, 1.0 to 6.4MPa (145 to 928PSI)
Body Material
Stainless Steel
Core Material
Stainless Steel
Stem Material
Stainless Steel
Sealing Material
PTFE
Structure
2 Way
End Connection
Flange End
Applicable Media
Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media
Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Application
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
Technical Parameter for Actuator
Model
Output Torque
90° Cycle Time
Motor Power
Rated Current
Power
LQ2-16
160Nm
28S
40W
0.6A
AC220V
LQ2-16
160Nm
28S
40W
1.45A
AC110V
LQ2-16
160Nm
28S
40W
0.25A
AC380V
LQ2-16
160Nm
28S
40W
0.3A
AC440V
LQ2-16
160Nm
28S
40W
2.0A
DC24V
LQ2-20
200Nm
28S
40W
0.6A
AC220V
LQ2-20
200Nm
28S
40W
1.5A
AC110V
LQ2-20
200Nm
28S
40W
0.3A
AC380V
LQ2-20
200Nm
28S
40W
0.35A
AC440V
LQ2-20
200Nm
28S
40W
2.2A
DC24V
LQ2-24
240Nm
28S
45W
0.7A
AC220V
LQ2-24
240Nm
28S
45W
1.6A
AC110V
LQ2-24
240Nm
28S
45W
0.35A
AC380V
LQ2-24
240Nm
28S
45W
0.39A
AC440V
LQ2-24
240Nm
28S
45W
2.8A
DC24V
Shell Material
Die-Cast Aluminum Alloy (Powder Coated)
Output Torque
60 to 6000Nm
Voltage Options
DC24V (±10%), AC110-220V, 50/60Hz, AC380-440V, 3PH
Insulation Resistance
DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage
DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
Protection Class
IP65, Explosion-protected Construction are Available
Optional Function
Precision Potentiometer, Overtorque Protection, Overheat Protection
Detailed Images

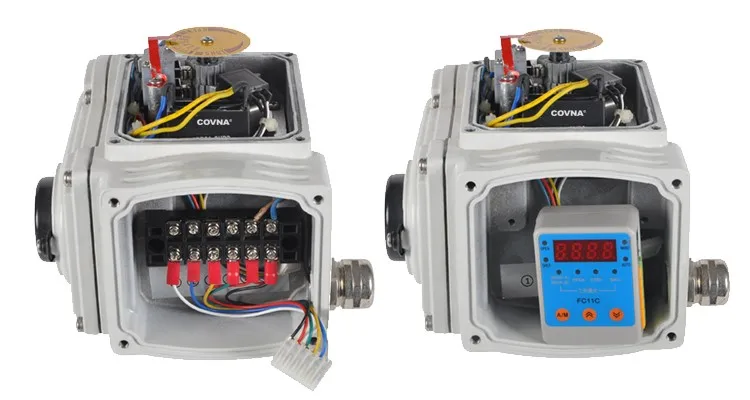

Internal View of ON-OFF Type and Modulating Type Actuator
#ALIBABA SELECTION SUPPLIER WITH 17 YEARS MANUFACTURING EXPERIENCE

GERMAN TECHNOLOGY

COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.

MADE BY EXPERIENCED ENGINEERS

All products are designed, engineered and manufactured by experienced engineers to provide safe, reliable and dependable valves, actuators and solutions.

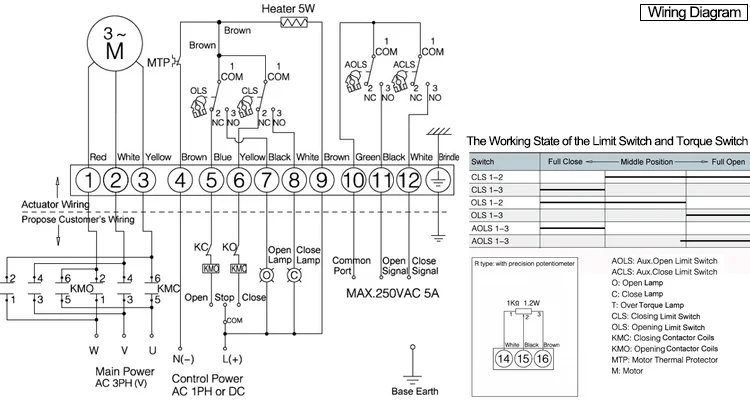

Wiring Diagram

LQ1 ON/OFF (3PH AC380V/415V/440V)

About COVNA

COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.


COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.


Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service

Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors

This is COVNA - solve your technical questions with solid experience.

Our Service

COVNA operates a full service valve maintenance facility with a complete scope of work that includes valve modifications (trim, end connection, cryogenic extension), testing and remanufacturing. In addition to MRO (maintenance, repair, and overhaul) services and inventory modifications for our customers, our maintenance facility serves as a complete warranty center for all COVNA products.

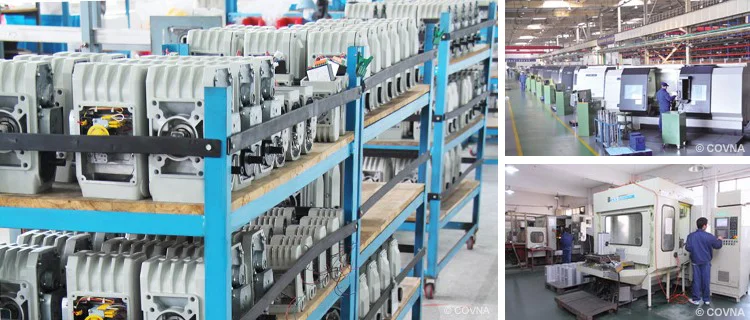

Factory Views
