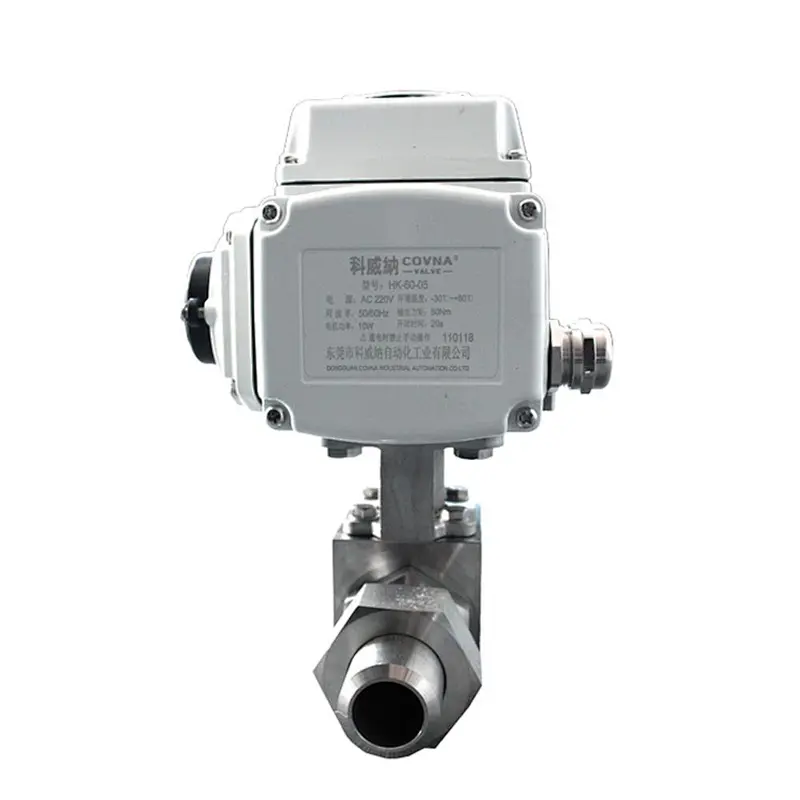

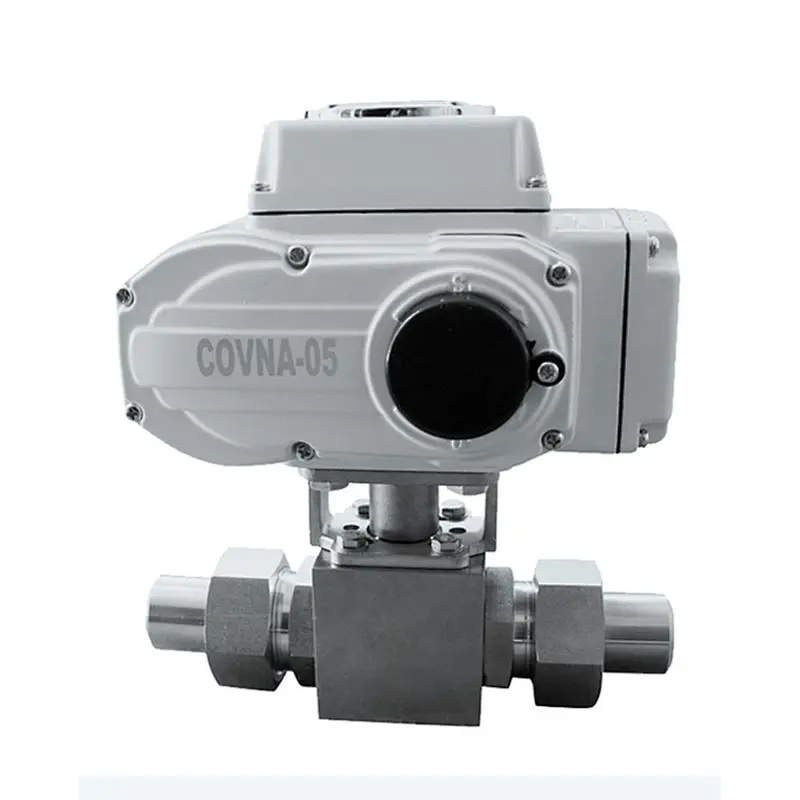

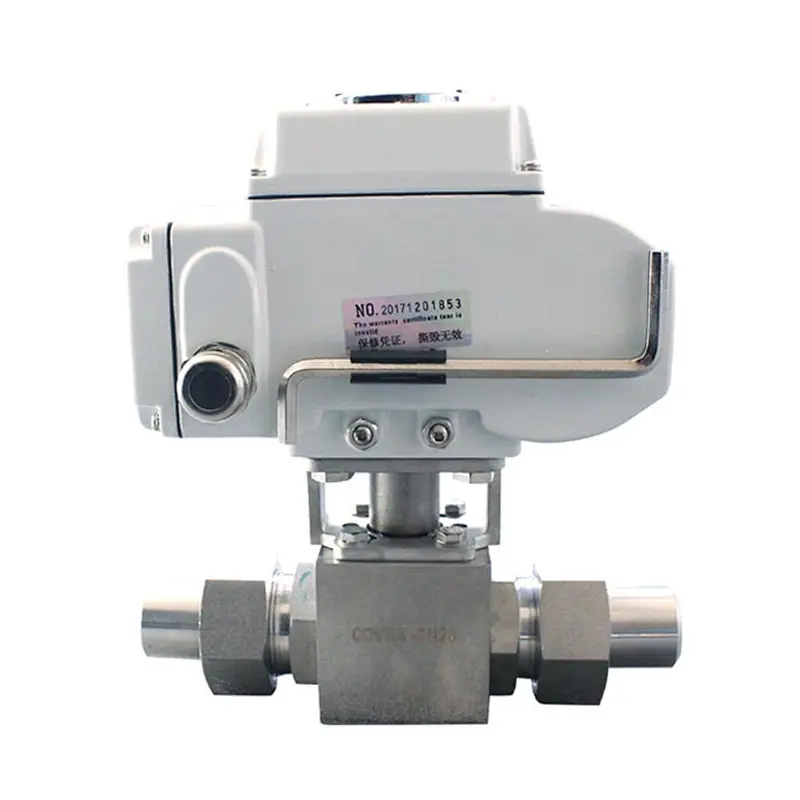

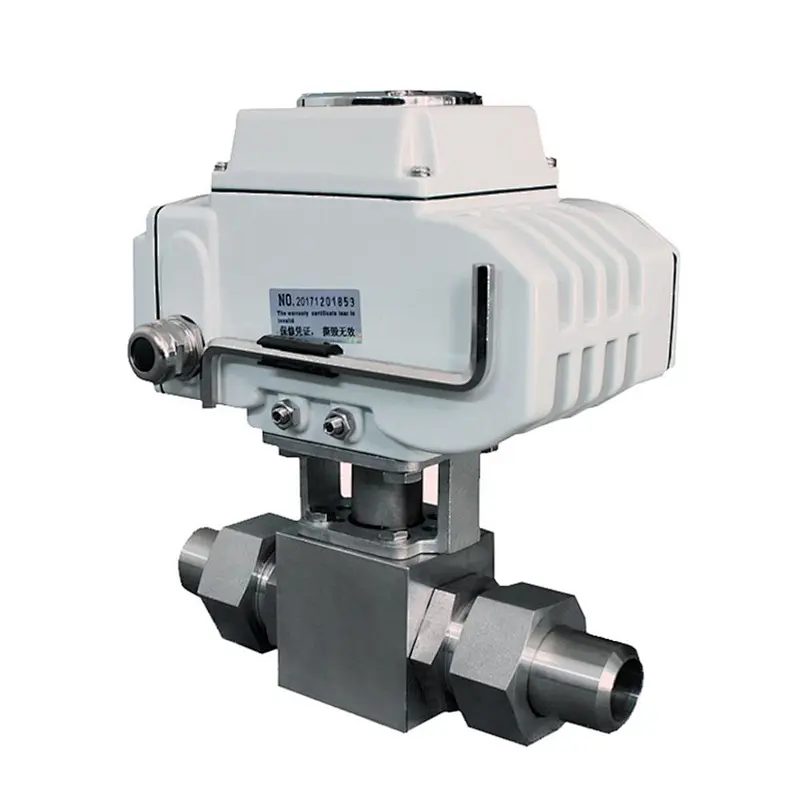

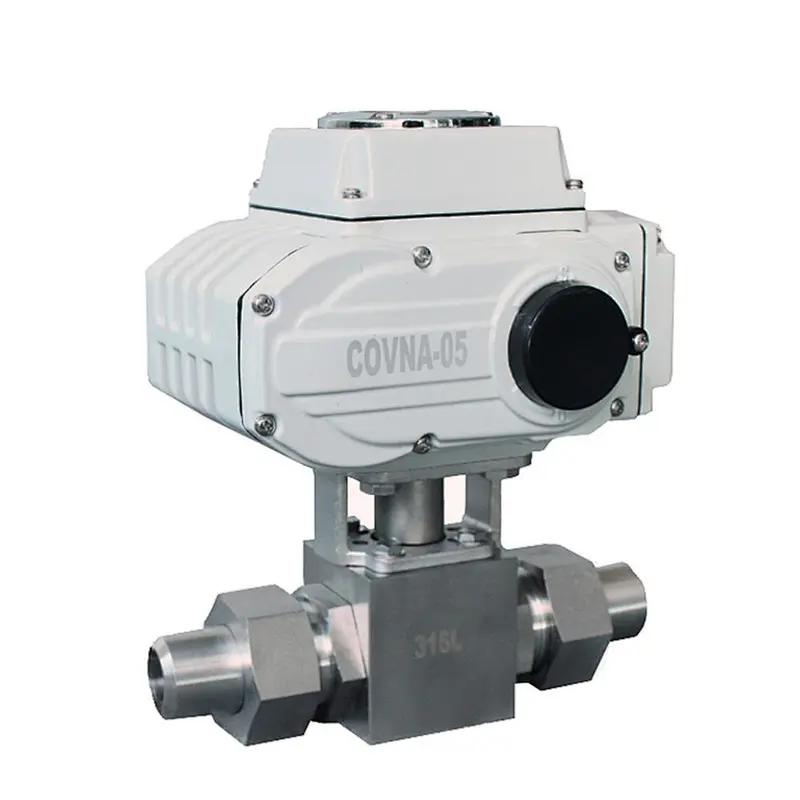

COVNA DN40 1.5 inch 2 Way 24 Volt 5000 PSI High Pressure Stainless Steel Ball Valve with Electric Drive

COVNA DN40 1.5 inch 2 Way 24 Volt 5000 PSI High Pressure Stainless Steel Ball Valve with Electric Drive

Model NO.: HK60-Q-G-H Ball Valve
Price:: USD 89.99-199.99 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Stainless Steel
Temperature of Media:High Temperature
Temperature of Media:Low Temperature
Temperature of Media:Medium Temperature
Temperature of Media:Normal Temperature
Pressure:High Pressure
Media:Water
Structure:Ball
Power:Electric Ball Valve
Brand Name:COVNA
Model Number:HK60-Q-G-H Ball Valve
Port Size:1.5 inch Ball Valve

Specifications

HK60Q-Q-3PS 3PC Ball Valve

HK60-Q-WT Sanitary Ball Valve

HK60-Q-PT Plastic Ball Valve

HK60-Q-F Flange Ball Valve

HK60-D Wafer Butterfly Valve

HK60-D-M Lug Butterfly Valve

In Stock, Start Order Now!

In Stock, Start Order Now!

Item	COVNA DN40 1.5 inch 2 Way 24 Volt 5000PSI High Pressure Stainless Steel Ball Valve with Electric Drive
Size Range	DN40, 1.5"
Operating Pressure	5000PSI
Body Material	Stainless Steel
Core Material	Stainless Steel
Sealing Material	PTFE
Structure	2 Way
End Connection	Welded
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Temp. of Media	Range from -10 to +180°C (14 to 356°F) with PTFE Sealing
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Technical Parameter for Actuator

Technical Parameter for Actuator

Control Mode	Function
ON-OFF Type	Feedback: the Active Contact Signal, Passive Contact Signal, Resistance
Regulation Type	Input & Output Signal: DC 4-20mA, DC 0-10V
Field Operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus

Shell Material	Die-Cast Aluminum Alloy (Powder Coated)
Lifespan	100,000 (Ten Thousand) Times
Output Torque	50 to 4000Nm
Angle of Rotation	90° ±4°
90° Cycle Time	15S/30S/60S
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Insulation Resistance	DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
Protection Class	IP65
Explosion Proof	EX d II BT4
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Ambient Temp.	Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements)

Wiring Diagram

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback
AC Voltages

Regulation Type with Servo Controller Module
AC Voltages
